Accessory – Spare Wheel Carrier
Congratulations on the purchase of your
Australian made Wedgetail Roof Rack accessory.

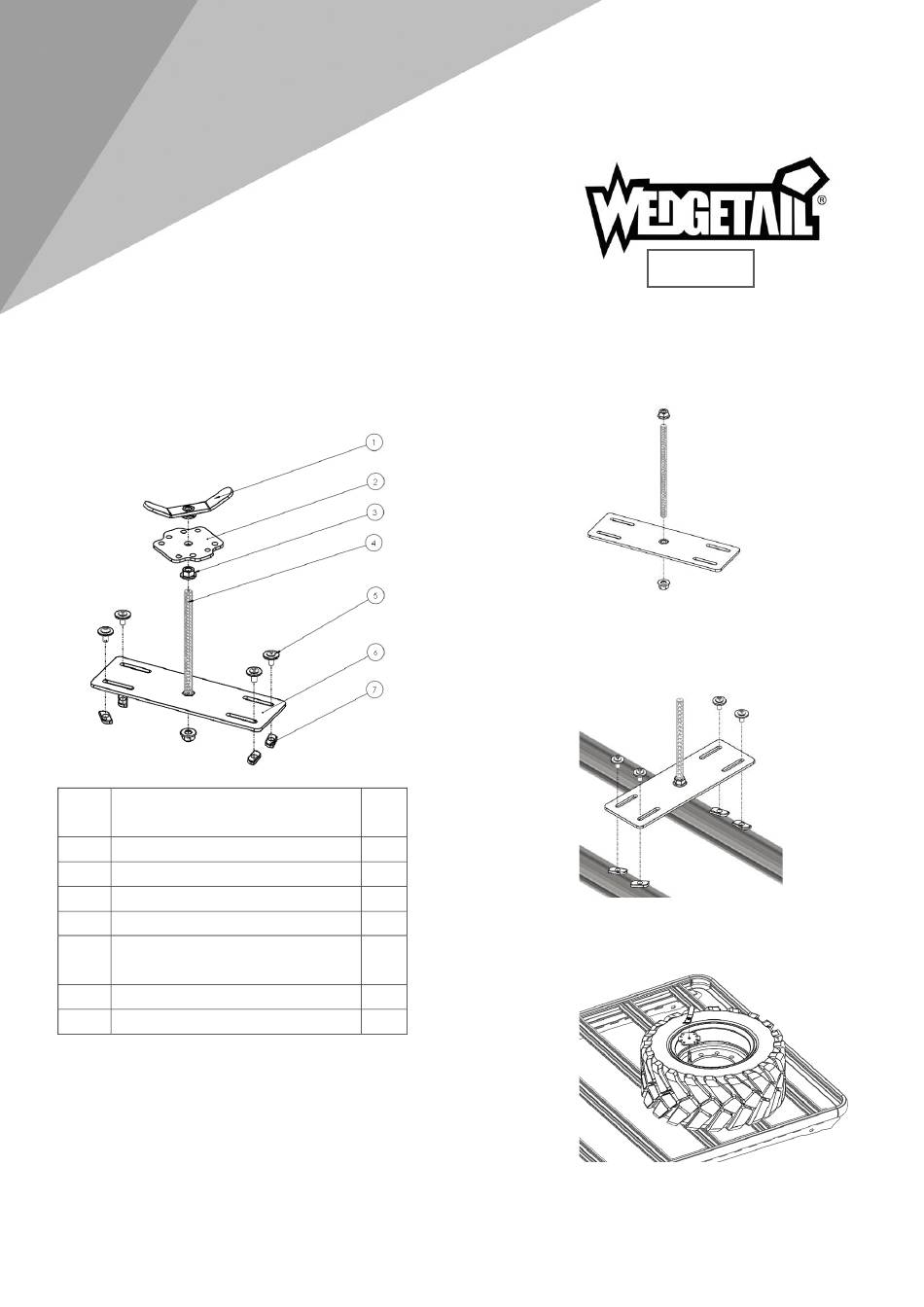

ITEM
PART NAME
NO.
1.
Wing Nut
2.
Wheel Carrier Plate
3.
M12 Flange Nut
4.
M12 Thread Rod
5.
M8X20 Stainless Bolt and
Washers
6.
Wheel Carrier Bracket
7.
M8 Channel Nut
Please follow these instructions to ensure correct
fitment.
1. Fasten threaded rod supplied to wheel carrier bracket.
Thread through and place M12 Flange Nut supplied nuts
one on each side of plate and tighten as shown.
2. Fasten the Wheel Carrier Bracket to the platform using
M8 Stainless bolt and washers and channel nuts. Place
the channel nuts in the cross bar and rotate 90 degrees
to ensure secure fitment as shown.
QTY
1
1
2
3. Secure wheel by passing M12 threaded rod through a
1
wheel stud hole and fasten with wing nut and plate
4
supplied.
1
4
COPYRIGHT TRADESMAN ROOF RACKS
WTA-SWC
| WEDGETAILRACK.COM.AU
