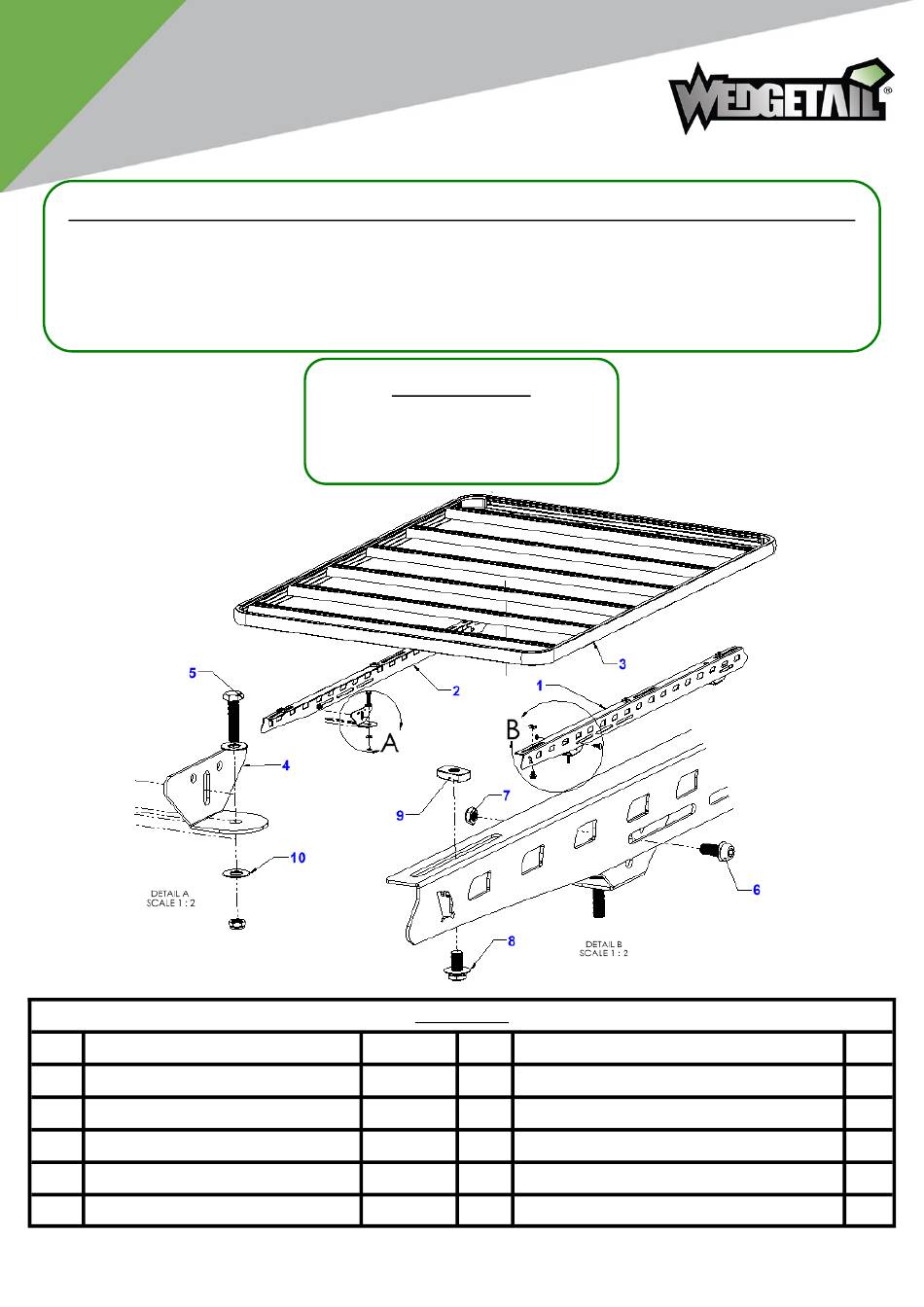

Wedgetail Rails and Platform Fitting Instruction
To suit ARB Classic Canopy
Congratulations on the purchase of your Australian made Wedgetail Roof Rack product.
Please read and follow the instructions carefully to ensure correct fitment.
Contact us if any parts appear missing, incorrect, or damaged.
Clean the roof prior to fitting the roof racks.
ITEM
COMPONENT
Wedgetail ARB Classic Left Rail
1
2
Wedgetail ARB Classic Right Rail
Wedgetail Pre-assemble platform
3
ARB Front Lug
4
5
10mm x 40 mm Hex Bolt
WT-ACC-1813_Fitting_Rev1 Updated
Updated: 2 Mar 2023
Tools Required:
•
Hex key (8 mm)
•
Drill (10mm)
KIT CONTENTS
QTY
ITEM
1
6
1
7
1
8
4
9
4
10
COMPONENT
M10 Dacro Sems Dome Head
10mm Nyloic Nut
M10 x 20 Stainless Hex Bolt Sems
M10 Unistrut
10mm Flat Washer
COPYRIGHT TRADESMAN ROOF RACKS |WEDGETAILRACK.COM.AU
WT-ACC-1813
QTY
4
8
6
6
12
Advertisement
Related Manuals for WEDGETAIL WT-ACC-1813
Summary of Contents for WEDGETAIL WT-ACC-1813
- Page 1 Wedgetail Rails and Platform Fitting Instruction To suit ARB Classic Canopy WT-ACC-1813 Congratulations on the purchase of your Australian made Wedgetail Roof Rack product. Please read and follow the instructions carefully to ensure correct fitment. Contact us if any parts appear missing, incorrect, or damaged.
- Page 2 Apply silicone on all the roof channel mounting holes to prevent any water ingress. Assemble rails to lugs • Fit rails to the vehicle using 10mm hardware (wedgetail logo facing to the front of vehicle) WT-ACC-1813_Fitting_Rev1 Updated COPYRIGHT TRADESMAN ROOF RACKS |WEDGETAILRACK.COM.AU...
- Page 3 Assemble the Wedgetail Platform to the rails • Place the Wedgetail Platform on the rails (Wind deflector mounting towards the front of vehicle), then spin the channel nuts 90 degree in the channel on the underside of the rack till they lock into the channels.
