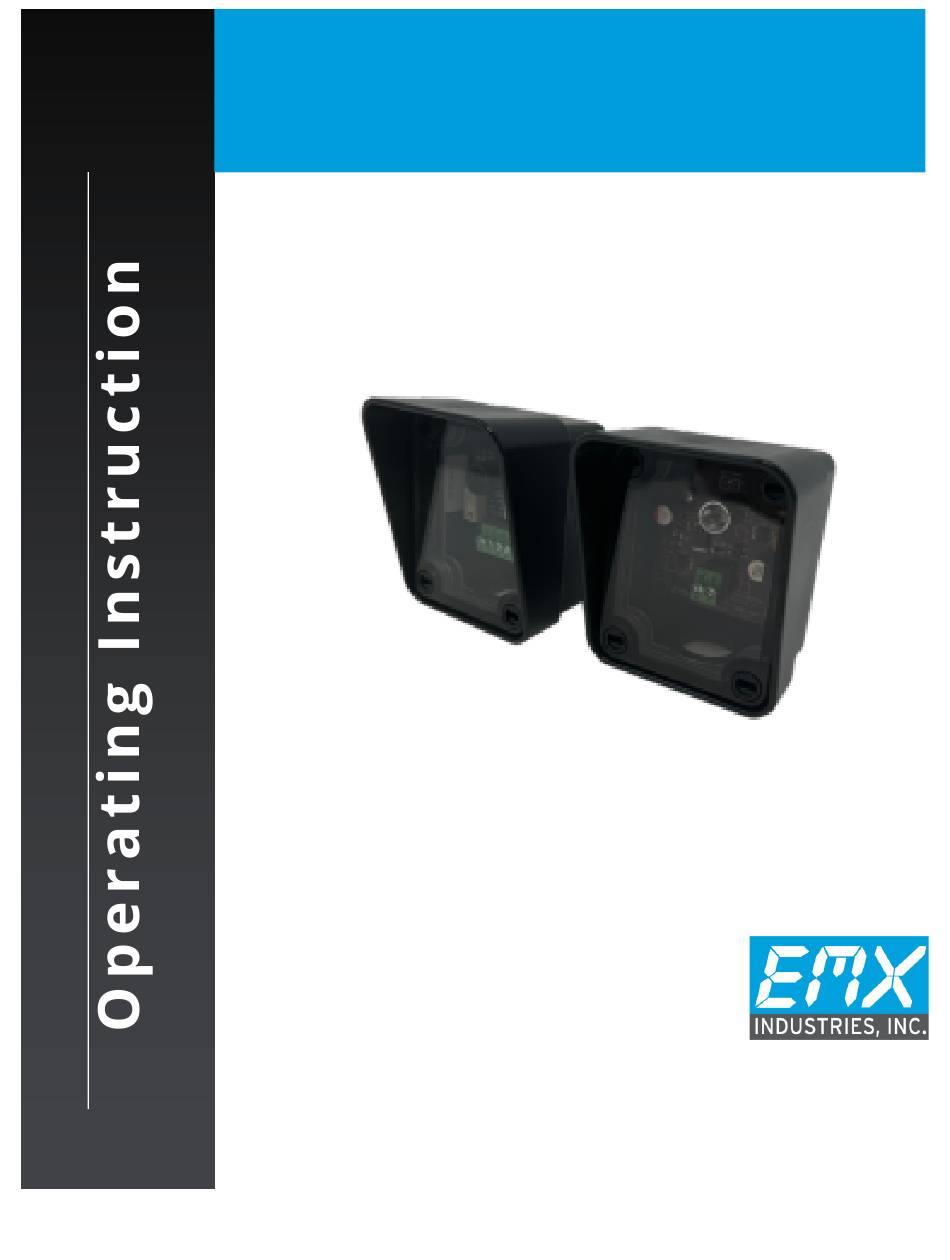

- Page 1 IRB-T115™ T h r u B e a m P h o t o e y e 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com www.emxinc.com...
- Page 2 Contents Cautions and Warnings Specifications Ordering Information Board Diagram Installation Troubleshooting Warranty EMX Industries, Inc. Tech support: 216-518-9889 Document No. 10510104 Rev. 1.0 technical@emxinc.com...
-
Page 3: Cautions And Warnings
The photoeye provides a signal to the system that the beam is or is not obstructed. The IRB-T115 operates up to 115 feet in a weather-proof NEMA 4X housing. A red alignment indicator on the receiver provides status information at a glance, making set-up and alignment easy. -
Page 4: Board Diagram
5. On the Rx, adjust the sensitivity potentiometer as needed by turning counterclockwise to increase gain. Use the minimum sensitivity setting needed to achieve reliable detection. EMX Industries, Inc. Tech support: 216-518-9889 Document No. 10510104 Rev. 1.0 technical@emxinc.com... - Page 5 Red receiver LED on Beam blocked or not aligned 8. Place an obstruction (ex. hand) between the IRB-T115 transmitter and receiver. The red LED on the receiver will turn on. Check the control system input and verify that it is recognized. Test the beam with an obstruction between the transmitter and receiver at multiple distances to confirm proper operation.
-
Page 6: Troubleshooting
Turn-off other nearby equipment and see if functionality returns. Warranty EMX Industries, Inc. products have a warranty against defects in materials and workmanship for a period of two years from date of sale to our customer. EMX Industries, Inc. Tech support: 216-518-9889 Document No.
