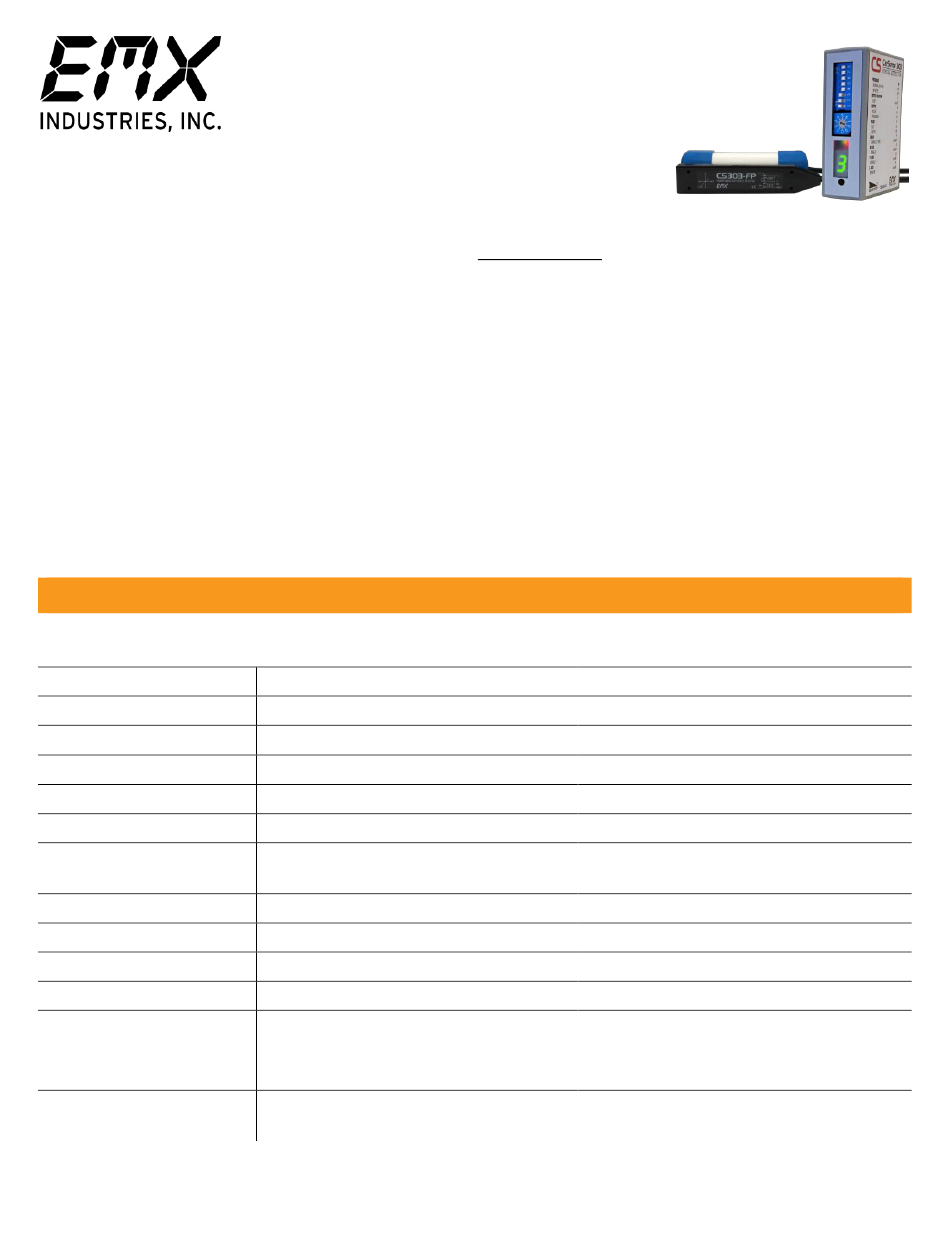

EMX CarSense 303 Instruction Manual

Instruction Manual
The CarSense303 features advanced 3-axis, magnetoresistive sensing technology. The small size of the
CS303 allows for easy installation in pavement with a single saw cut. It provides cost savings on labor and
materials when compared to the multiple cuts and corner reliefs required for the installation of inductive
loops. The sensor measures the Earth's magnetic field and responds to disturbances caused by ferrous
objects. Three sensing elements provide magnetic field measurement in the X, Y and Z axis, improving
detection sensitivity. The CS303 flat pack (FP) and direct burial (DB) sensors are also suitable for
above ground installations, making them ideal for use in confined areas or hidden in non-ferrous
architectural components for security purposes. The CS303's exciting new technology provides a
high-sensitivity, compact and cost-effective solution for reliable vehicle detection.
NOTE: When power is applied to the CS303-C-1 controller and a CS303-FP or DB sensor is connected,
the settings on the controller will be sent to the sensor. The sensor stores these settings even when
disconnected from the CS303-C-1. However, the controller is required to program and recalibrate
the sensor.
Specifications
Detection Range
Response Time
Outputs
Output Current Rating
Connection
Operating Environment
Housing Material
Environmental Rating
Power
Current Draw
Supply Protection
Dimensions (L x W x H)
Circuitry
Weight
EMX Industries, Inc.
CS303_Rev2.8_081219
CarSense303
Single Saw Cut Magnetoresistive Vehicle Detector
CS303-C-1 Controller
SPDT relay
Relay: 1 A @ 24-120 VDC
10 position screw terminal
-40º to 82ºC (-40º to 180ºF); 0 to 95% relative humidity
ABS (plastic)
IP30
12-30 VDC and 24 VAC
40 mA (max)
76 mm (3.0") x 22 mm (0.9")
x 70 mm (2.75")
68 g (0.15 lbs)
Tech support: 216-834-0761
technical@emxinc.com
™
5 ft (1.5 m) radius
125 ms
Reverse polarity and fuse protected
CS303-DB: 102 mm (4.0") x 27 mm (1.0")
CS303-FP and DB Sensor
NPN (open collector)
50 mA (max)
5 conductor direct burial
CS303-FP: Polyamide
CS303-DB: PVC
IP69K
12-30 VDC
10 mA (max)
CS303-FP: 108 mm (4.3") x
22 mm (0.9") x 9 mm (0.3")
CS303-FP: 27 g (0.06 lbs)
CS303-DB: 43 g (0.09 lbs)
TM
1/8
