EMX IRB-325 Operating Instructions Manual

Infrared photoeye
Hide thumbs Also See for IRB-325:

Advertisement

Quick Links

IRB-325
I N F R A R E D P H O T O E Y E
4564 Johnston Parkway, Cleveland, Ohio 44128
P. 800 426 9912 F. 216 518 9884
Sales Inquiries: salessupport@emxinc.com
Technical Support: technical@emxinc.com
www.emxinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRB-325 and is the answer not in the manual?

Questions and answers

Summary of Contents for EMX IRB-325

  • Page 1 ™ IRB-325 I N F R A R E D P H O T O E Y E 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com www.emxinc.com...
  • Page 2: Table Of Contents

    Contents Cautions and Warnings Product Overview Specifications Controls and Indicators Connections Operational Settings Troubleshooting Installation Ordering Information Accessories Warranty IRB-325™ Operating Instructions Document no. 10350104...
  • Page 3: Cautions And Warnings

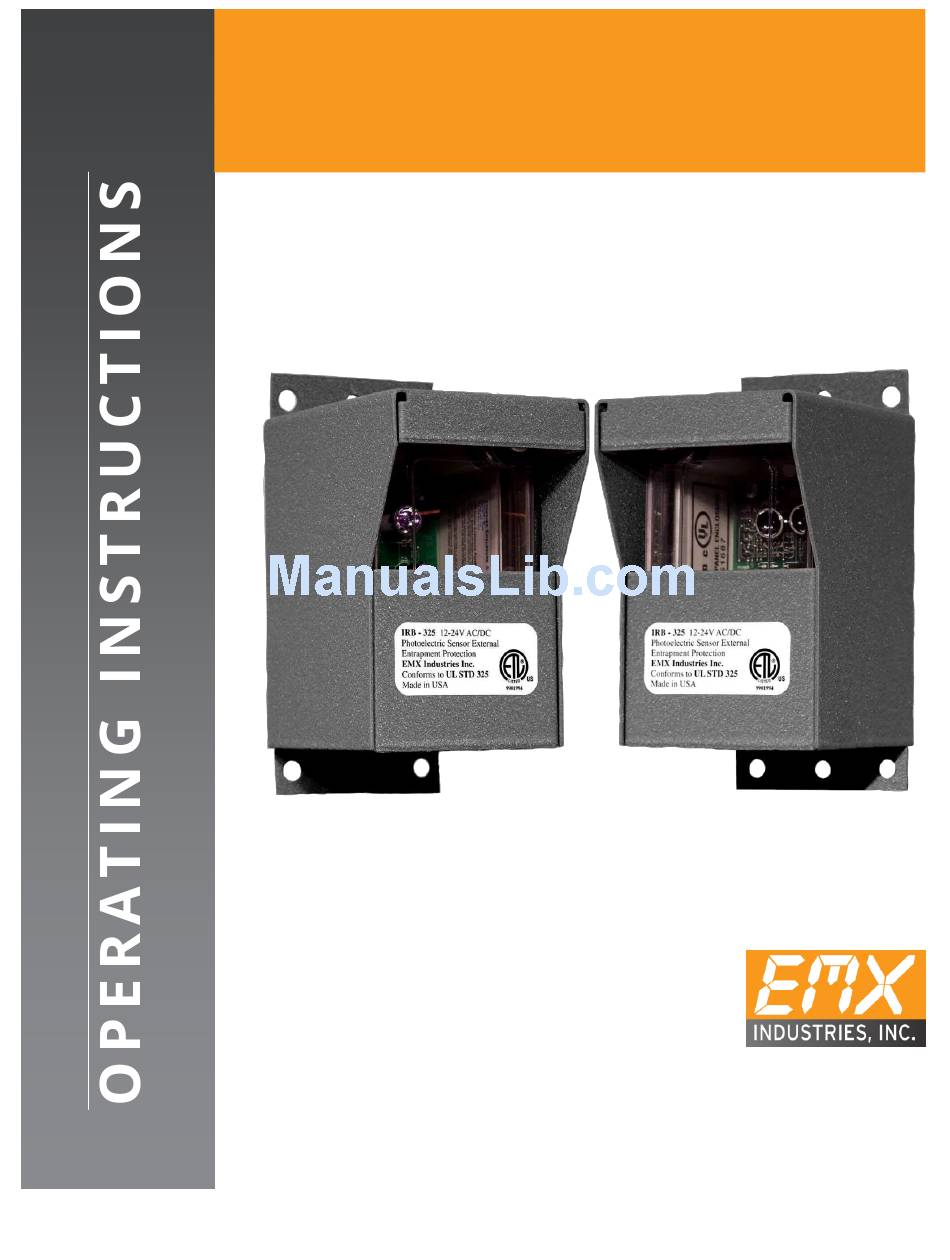

    B1 non-contact sensor for use with automatic gate and door openers. The IRB-325 transmitter and receiver have a line of site range of up to 65 feet. The IRB-325 operates on 12 VDC to 24 VAC and draw 150 mA maximum.
  • Page 4: Specifications

    The IRB-325 is an external entrapment device Type B1 non-contact sensor for use with automatic gate operators. If the IRB-325 is used as the primary entrapment protection device it must be monitored for presence and fault condition. The IRB-325 does not produce a monitored output.
  • Page 5: Operational Settings

    Type B1 sensor to the operator. 3. Disable the gate so it is unable to move. 4. With the IRB-325 mounted in place and powered, make sure the transmitter “TX” is in line of sight of the receiver “RX”. 5. Introduce an obstruction in form of a hand between the IRB-325 transmitter and receiver. Two Red LED’s on the receiver have to turn on.
  • Page 6: Troubleshooting

    Receiver Faulty connection Check wires and terminal   activates but between receiver and connections to make sure they does not operator control are good transmit signal input to operator IRB-325™ Operating Instructions Document no. 10350104...
  • Page 7: Installation

    5. Connect power to terminals 1 and 2 on IRB-325 transmitter marked “TX” polarity is not important. 6. Connect power to terminals 4 and 5 marked “power input” on the IRB-325 receiver, marked “RX” polarity is not important. 7. For operators that require normally closed contact for entrapment protection, connect terminals 1 (NC) and 2 (COM) to the designated terminals in the gate operator.
  • Page 8: Ordering Information

    EMX Industries option of a part or parts found not conforming to the warranty. In no event shall EMX Industries Inc. be liable for damages, including but not limited to damages resulting from non-conformity, defect in material or workmanship.
  • Page 9 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America www.emxinc.com Technical Support: (216) 834-0761 technical@emxinc.com Sales: (216) 518-9888 Fax: (216) 518-9884 salessupport@emxinc.com Revision 1.3 2.28.18 IRB-325™ Operating Instructions Document no. 10350104...
