EMX ULT-MVP-2 Instruction Manual

Instruction Manual

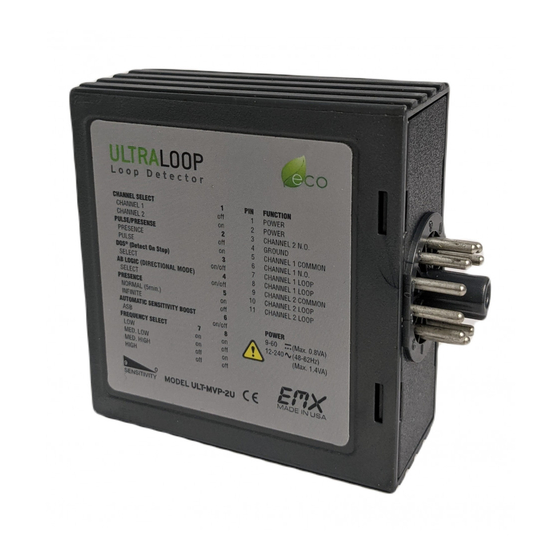

The ULT-MVP-2 two channel vehicle loop detector senses metallic objects near an induction loop.
This detector automatically adjusts from 12 VDC up to 240 VAC which eliminates the installer's need
to match available power to an appropriately rated vehicle detector. The ULTRAMETER™ display
makes set-up easy by displaying the optimum sensitivity setting required to detect a vehicle positioned
near the loop. Ten sensitivity settings allow for fine adjustment of the detection level. The ULT-MVP-2
provides relay contact outputs indicating vehicle presence for each channel separately and AB logic
for direction indication. The relay output for each channel may be set for pulse or presence, or the
EMX exclusive feature, Detect-on-Stop™ (DOS
and infinite or normal (5 minute) presence. Four frequency settings provide flexibility in preventing
crosstalk in multi-loop applications.
Cautions and Warnings
This product is an accessory or part of a system. Install the ULT-MVP-2 according to
instructions from the gate or door operator manufacturer. Comply with all applicable
codes and safety regulations.
Specifications
Power
Draw Current (Standby/Detect)
Loop Frequency
Loop Inductance
Surge Protection
Channel 1 & 2 Relay
Contact Rating (Resistive Load)
Operating Temperature
Environmental Rating
Connector
Dimensions (L x W x H)
EMX Industries, Inc.
ULT-MVP-2_Rev2.0_082319
ULT-MVP-2
Multi-Voltage Vehicle Loop Detector
Two Channel with Direction Indication
®
). The ULT-MVP-2 features automatic sensitivity boost (ASB)
12-60 VDC or 12-240 VAC (48-62 Hz)
25 mA/50 mA
4 settings (low, med-low, med-hi, high)
20-2000 µH (Q factor ≥ 5)
Loop circuitry protected by surge suppressors
SPDT relay contacts (form C)
2 A @ 30 VDC, 0.5 A @ 125 VAC
-40º to 180ºF (-40º to 82ºC) 0 to 95% relative humidity
IP30
11 pin male connector (JEDEC B11-88)
compatible with DIN rail mount socket or wire harness
73 mm (2.9") x 38 mm (1.2") x 78 mm (3.1")
Tech support: 216-834-0761
technical@emxinc.com
™
1/8
