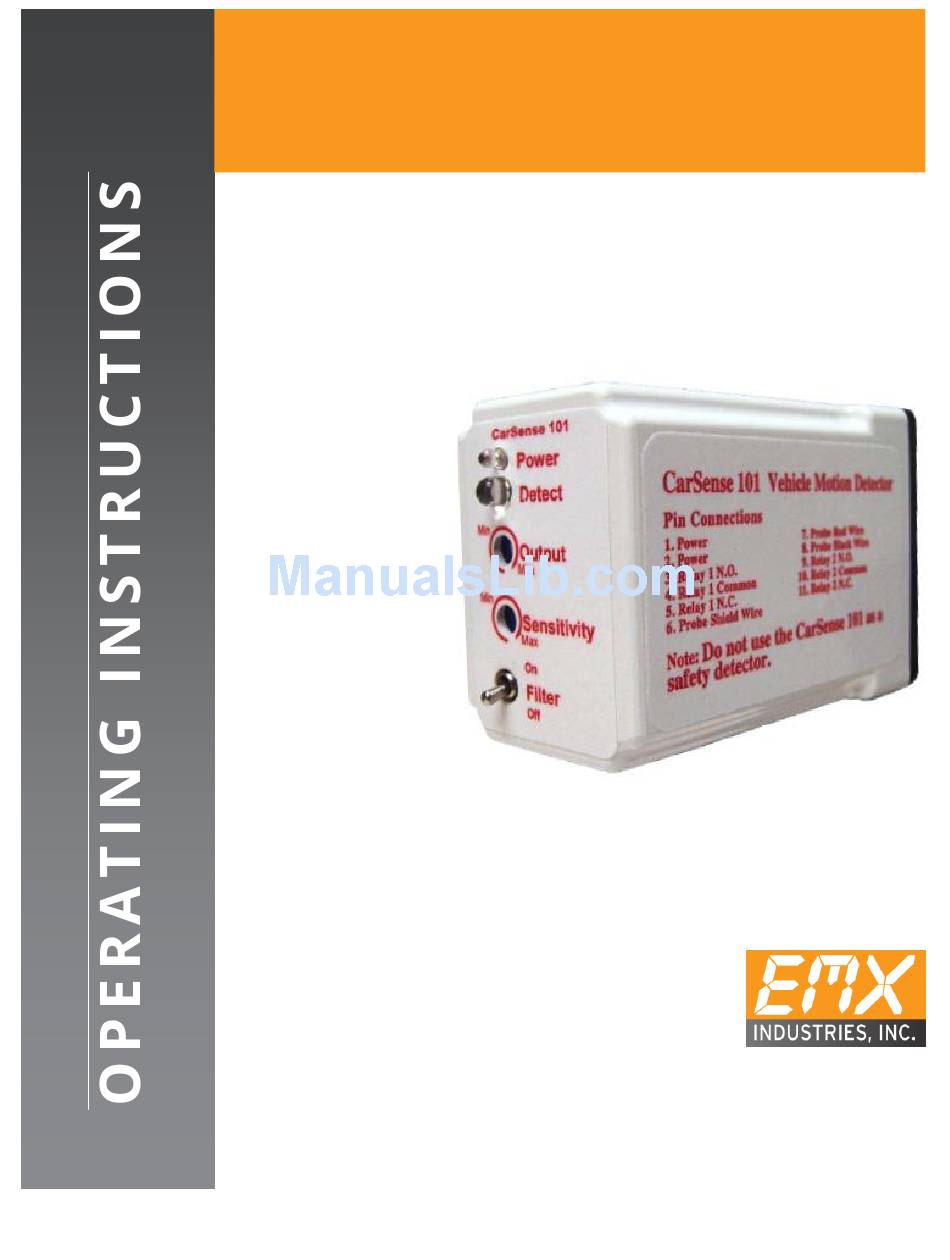

- Page 1 ™ CarSense101 V E H I C L E M O T I O N D E T E C T O R 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com www.emxinc.com...
-
Page 2: Table Of Contents
Contents Cautions and Warnings Product Overview Specifications Operation Controls and Indicators Connections Troubleshooting Loop Installation Ordering Information CS101 Operating Instructions Document no. 10070104... -
Page 3: Cautions And Warnings
The CS101 may be used as a free exit sensor in both commercial and residential applications. The detector is not for use as a presence detector. When presence detection is needed, use the EMX D-TEK series detectors and inductive loop. -
Page 4: Specifications
Specifications Specifications Range sensitivity 12 ft. @ 5mph min. speed Sensitivity adjustment Dependent on mass and speed Output on time adjustment 0.5…6 seconds Surge protection Probe input circuitry protected by surge suppressors Relay output configuration Form C (SPDT) Relay contact rating 1A @ 24VDC. -
Page 5: Operation
Operation After allowing a 5-minute stabilization time the CS101 is ready for use. It is possible that the detector will cycle during the power up stabilization period, this is normal. The CS101 relay contacts provide the means of indicating to the gate operator or other external equipment, that a vehicle has been detected. -
Page 6: Connections

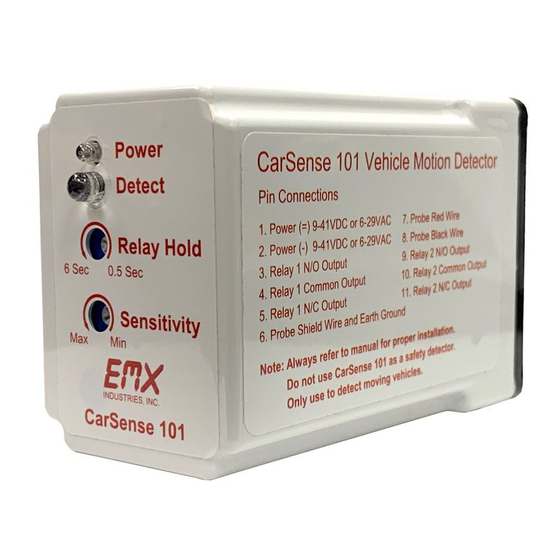

Connections Pin no. Description Power + (9 to41VDC or 6-29VAC) or 110 VAC model Power ground (9…41VDC common or 6-29VAC) or 110 VAC model RELAY 1 - N.O. (relay, normally open contact) RELAY 1 - Common (relay common contact) RELAY 1 - N.C. (relay, normally closed contact) Probe shield wire Earth ground (provides connection for transient and noise suppression devices) -
Page 7: Troubleshooting
Troubleshooting Symptom Possible cause Solution False -Electrical disturbances 1. Verify that the earth ground connection to the Triggering -Damaged probe cable CS101 and the probe shield is secure. If the -Moisture in probe connection is not secure, reconnect to the earth cable ground and retest the system. -
Page 8: Loop Installation
A splice kit (Part no. 3M SPLICE KIT) and lead-in wire is available from EMX. All splices must be waterproof. When there is a high incidence of damage from burrowing animals or other potential damaging ... - Page 9 Installation (continued) The detector sensitivity is a function of mass and speed. A larger, fast moving vehicle will be detected at a greater distance than a smaller, slow moving vehicle. With this in mind, consider the distance of the probe to normal residential traffic, truck traffic, railroad, etc. As a general rule, probe distance to a road way should be a minimum of 40’...
- Page 10 Installation (continued) Typical Installation PROBE INSTALLATION IN A ROADWAY Please read INSTALLATION GUIDLINES prior to installation. DO NOT INSTALL IN HOT ASPHALT When the detector is set to maximum sensitivity (full clock-wise on the sensitivity adjustment) detection distance is approximately 12ft at a speed of 5mph. At higher speeds, 10-15mph, detection distance can exceed 12ft.
-
Page 11: Ordering Information
Ordering Information XC101-LV CarSense101 vehicle motion detector, 9…41VDC and 6…29 VAC XC101-110 CarSense101 vehicle motion detector, 110 VAC Accessories D-11B Socket base, black, 11-pin, DIN rail mount (1 included) LD-11 Socket base, gray, 11-pin, DIN rail mount ... - Page 12 EMX Industries option of a part or parts found not conforming to the warranty. In no event shall EMX Industries Inc. be liable for damages, including but not limited to damages resulting from non-conformity, defect in material or workmanship.
- Page 13 BLANK PAGE CS101 Operating Instructions Document no. 10070104...
- Page 14 BLANK PAGE CS101 Operating Instructions Document no. 10070104...
- Page 15 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America www.emxinc.com Technical Support: (216) 834-0761 technical@emxinc.com Sales: (216) 518-9888 Fax: (216) 518-9884 salessupport@emxinc.com Revision 1.6 3.13.2018 CS101 Operating Instructions Document no. 10070104...
