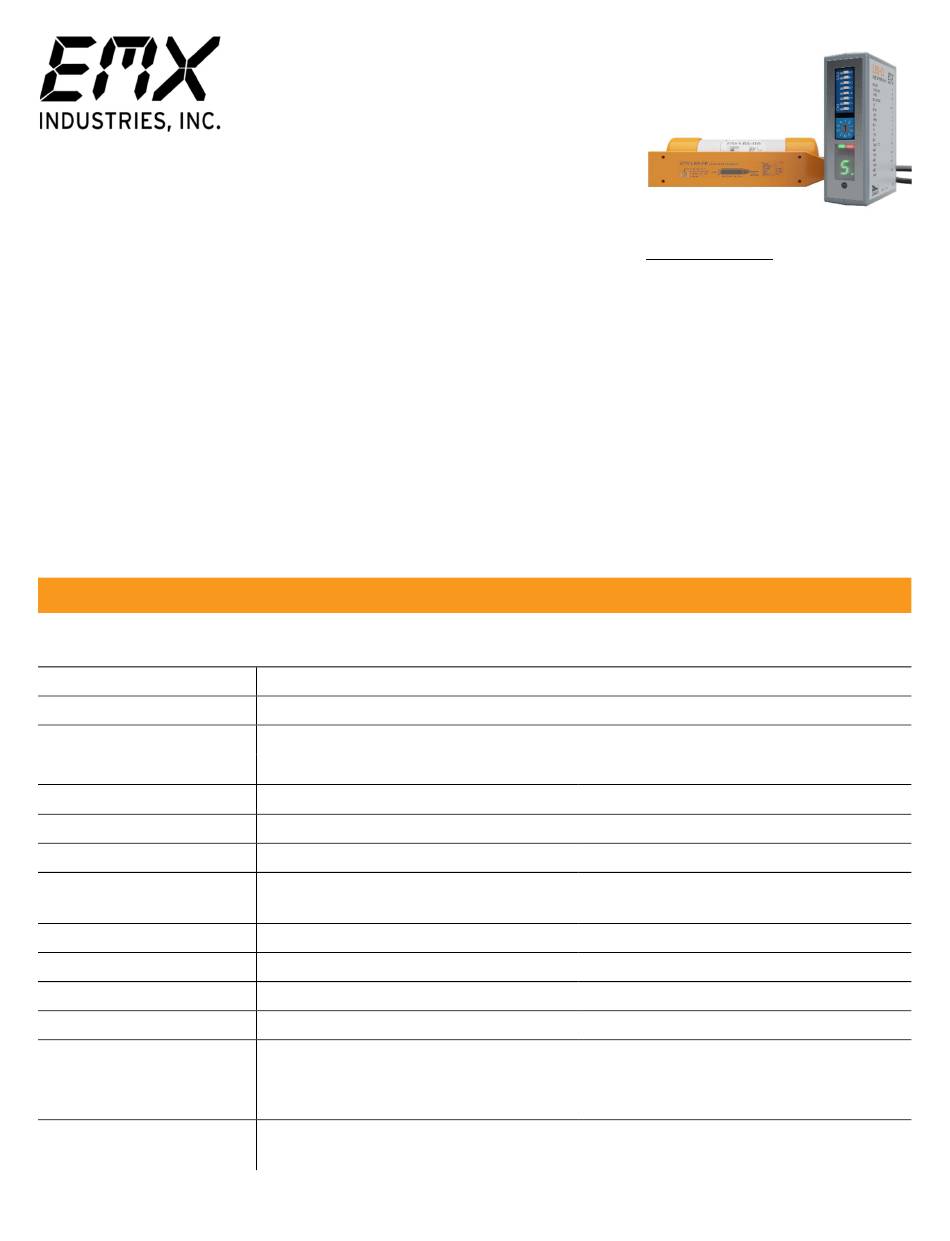

EMX LRS-C1 Instruction Manual

Instruction Manual
The Loop Replacement System (LRS) features advanced 3-axis, magnetoresistive sensing technology.
The small size of the LRS allows for easy installation in pavement with a single saw cut. It provides cost
savings on labor and materials when compared to the multiple cuts and corner reliefs required for the
installation of inductive loops. The sensor measures the Earth's magnetic field and responds
to disturbances caused by ferrous objects. Three sensing elements provide magnetic field measurement
in the X, Y and Z axis, improving detection sensitivity. The LRS flat pack (FP) and direct burial (DB) sensors
are also suitable for above ground installations, making them ideal for use in confined areas or hidden in
non-ferrous architectural components for security purposes. The LRS' exciting new technology provides
a high-sensitivity, compact and cost-effective solution for reliable vehicle detection.
NOTE: When power is applied to the LRS-C1 controller and the LRS-FP or DB sensor is connected,
the settings on the controller will be sent to the sensor. The sensor stores these settings even when
disconnected from the LRS-C1. However, the controller is required to program and recalibrate
the sensor.
Specifications
Detection Range
Response Time
Outputs
Output Current Rating
Connection
Operating Environment
Housing Material
Environmental Rating
Power
Current Draw
Supply Protection
Dimensions (L x W x H)
Weight
EMX Industries, Inc.
Document No.10310204 Rev 1.1
LRS
™
Single Cut Magnetoresistive Vehicle Detector
LRS-C1 Controller
SPDT relay
Fail safe in the event of a sensor failure or power loss
Relay: 1 A @ 24-120 VDC
10 position screw terminal
-40º to 82ºC (-40º to 180ºF); 0 to 95% relative humidity
ABS (plastic)
IP30
12-30 VDC and 24 VAC
40 mA (max)
76 mm (3.0") x 22 mm (0.9")
x 70 mm (2.75")
68 g (0.15 lbs)
Tech support: 216-518-9889
technical@emxinc.com
5 ft (1.5 m) radius
125 ms
Reverse polarity and fuse protected
LRS-DB: 102 mm (4.0") x 27 mm (1.0")
LRS-FP and DB Sensor
NPN (open collector)
50 mA (max)
5 conductor direct burial
LRS-FP: Polyamide
LRS-DB: PVC
IP69K
12-30 VDC
10 mA (max)
LRS-FP: 108 mm (4.3") x
22 mm (0.9") x 9 mm (0.3")
LRS-FP: 27 g (0.06 lbs)
LRS-DB: 43 g (0.09 lbs)
1/8
