- Page 1 ™ MVP D-TEK V E H I C L E L O O P D E T E C T O R 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com...
-
Page 2: Table Of Contents
Contents Cautions and Warnings Product Overview Specifications Operation Controls and Indicators Connections Troubleshooting Installation Ordering Information MVP D-TEK™ Operating Instructions Document no. 10000104... -
Page 3: Cautions And Warnings

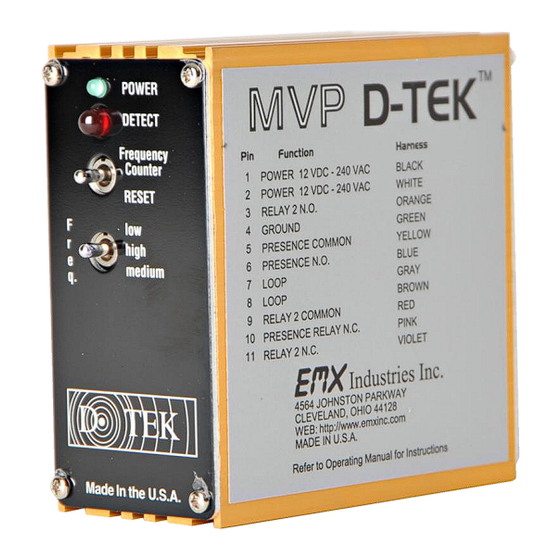

The MVP D-TEK Vehicle Loop Detector allows for detection of metallic objects entering into the field formed around the detection loop. We have designed the MVP D-TEK with the following objectives in mind: 1. Compact package to allow easy installation into small operator housings. -
Page 4: Specifications
Solid lighted red LED indicates detection Blinking red LED after vehicle leaves the loop indicates time Extend Indicator extend Blinking red LED during vehicle detection indicates that 4 4 minute limit minute limit has expired. MVP D-TEK™ Operating Instructions Document no. 10000104... -
Page 5: Operation
This feature is controlled by DIP switch 2 on the back of the detector and allows relay 2 to act in the pulse mode or as a second presence mode relay mimicking relay 1. MVP D-TEK™ Operating Instructions Document no. 10000104... - Page 6 Turning on switch 8 allows for a 3 second extension of the detection after the vehicle leaves the loop. Turning on both switches 7 and 8 allows for a 9 second extension of the detection after the vehicle leaves the loop. MVP D-TEK™ Operating Instructions Document no. 10000104...
-
Page 7: Controls And Indicators
“Fail Secure” “Fail Safe” Filter OFF Filter On ASB OFF Automatic Sensitivity Boost Extend Detect 6 seconds Extend Detect 3 seconds DIP 7 & 8 ON extend time is 9 seconds MVP D-TEK™ Operating Instructions Document no. 10000104... -
Page 8: Connections
Relay 2 COM (Pulse / Presence) Loop Connection Loop Connection Relay 1 N/O (Presence) Relay 1 COM (Presence) Ground * Must be connected to approved earth ground for surge protection to be effective MVP D-TEK™ Operating Instructions Document no. 10000104... -
Page 9: Troubleshooting
4. Set adjacent loops to different pavement frequencies. 5. Verify that loop is securely installed in pavement and that site is in good condition preventing movement of loop wires. MVP D-TEK™ Operating Instructions Document no. 10000104... -
Page 10: Installation
7. To install the loop into new concrete with re-bar or wire mesh we recommend that the loops be installed at least 1 inch above the re-bar. 8. When installing in saw cut we recommend the use of backer rod and a good grade sealant for the type of surface. MVP D-TEK™ Operating Instructions Document no. 10000104... -
Page 11: Ordering Information
EMX Industries option of a part or parts found not conforming to the warranty. In no event shall EMX Industries Inc. be liable for damages, including but not limited to damages resulting from non-conformity, defect in material or workmanship. - Page 12 BLANK PAGE MVP D-TEK™ Operating Instructions Document no. 10000104...
- Page 13 BLANK PAGE MVP D-TEK™ Operating Instructions Document no. 10000104...
- Page 14 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America www.emxinc.com Technical Support: (216) 834-0761 technical@emxinc.com Sales: (216) 518-9888 Fax: (216) 518-9884 salessupport@emxinc.com Revision 1.4 3.13.2018 MVP D-TEK™ Operating Instructions Document no. 10000104...
