Delfield N225 Specifications

N225/N227
Self-Contained Drop-In Freezer
Models
N225 6 gallon drop-in freezer
N227 12 gallon drop-in freezer

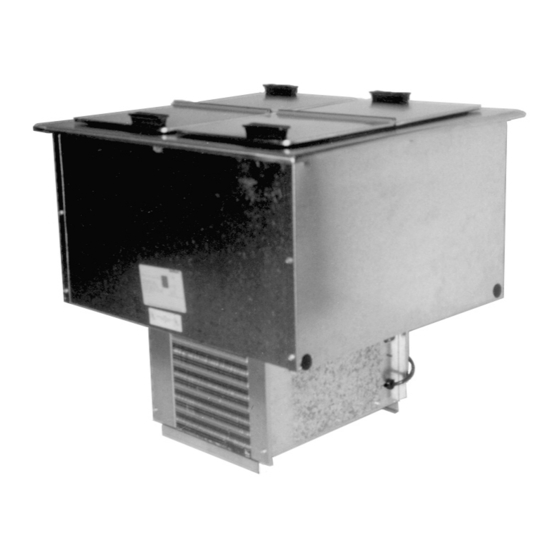

Model N227

Specifications

Model N225
Top of 18-gauge stainless steel, has 1.31" (3.3 cm) overhang front to back and
1.25" (3.18cm) right to left, one die-stamped 10.44" (26.5 cm) x 20.69" (52.5
cm) opening with raised edges. Opening is fitted with insulated, folding,
lift-off cover.
Freezer compartment interior is 22-gauge stainless steel and measures
10.81" (27.4 cm) x 22.12" (56.2 cm) x 12.25" (31.1 cm) high. Compartment
sides are wrapped with refrigeration lines. Sides and bottom are insulated
with high-density closed-cell polyurethane. Unit is designed to maintain 0°
to 5° F (-18°C to -21°C). Cabinet capacity
Condensing unit mounted below freezer compartment on 16-gauge steel
frame, has 1/4 H.P. rating.
A stainless steel louver, 13" (33 cm) x 25" (63.5 cm), is supplied for field instal-
lation. The cutout size for the louver is 11.50 (29.2 cm) x 23" (58.4 cm).
Model N227
Top of 18-gauge stainless steel, has 1.31" (3.3 cm) overhang on all sides, two
die-stamped openings have raised edges, measure 10.44" (26.5 cm) x 20.69"
(52.5 cm), are fitted with insulated, folding, lift-off covers.
Freezer compartment has 22-gauge stainless steel interior and measures
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Standard Features
• Suitable for ice cream storage
• 18-gauge stainless steel top
• Die stamped top opening with raised edge
• High-density polyurethane foam throughout
unit
• Mechanically cooled 0˚F to 5˚F tank
• Folding removable cover with external
handle
• 9' cord and plug
• Environmentally friendly HFC-404A
refrigerant
• One year parts and 90 day labor standard
warranty
24.19" (61.4 cm) x 22.12" (56.2 cm) x 12.25" (31.1 cm) high. Compartment
sides are wrapped with refrigeration lines. Insulation on sides and on bot-
tom is high-density closed-cell polyurethane. Unit is designed to maintain
0° to 5° F(-18°C to -21°C). Cabinet capacity
1/4 H.P. condensing unit is mounted below freezing compartment on 16-
gauge steel frame.
A stainless steel louver, 13" (33 cm) x 25" (63.5 cm), is supplied for field instal-
lation. The cutout size for the louver is 11.50" (29.2 cm) x 23" (58.4 cm).
is 6 gallons.
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
is 12 gallons.
www.delfield.com
Options &
Accessories
• Lexon lid
• Locking device
• *220 volt, 50 cycle system
*Inclusion of this option will alter
the electrical specifications of
the unit.
