Summary of Contents for Delfield 200 Series

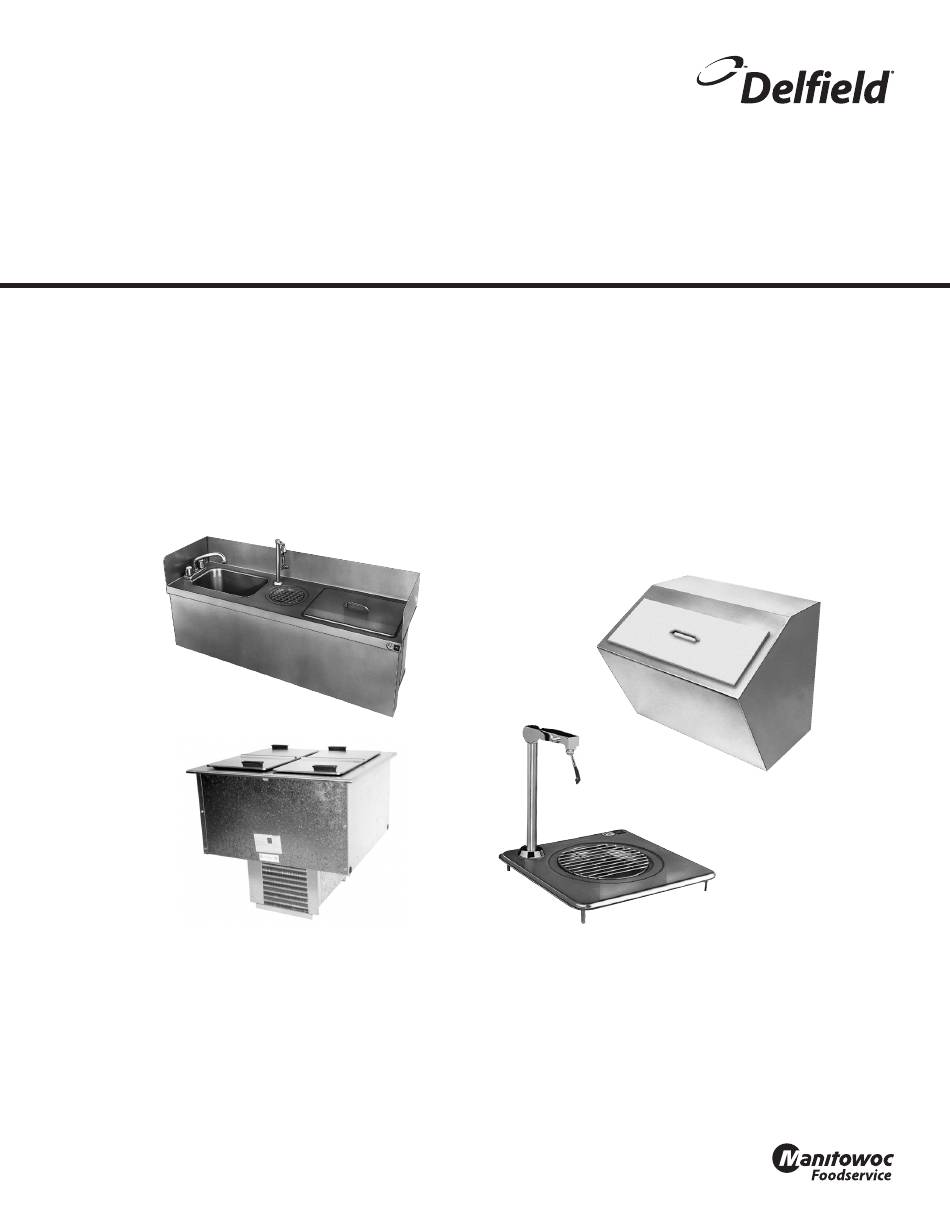

- Page 1 200 & 300 Series Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9291456 07/16...
- Page 2 Safety Notices Warning This product contains chemicals known to the State Warning of California to cause cancer and/or birth defects or Read this manual thoroughly before operating, installing other reproductive harm. Operation, installation, and or performing maintenance on the equipment. Failure servicing of this product could expose you to airborne to follow instructions in this manual can cause property particles of glasswool or ceramic fibers, crystalline...
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Model Numbers ........................4 Serial Number Location ..................... 4 Warranty Information ......................4 Regulatory Certifications ....................4 Domestic Models ............................4 Export Models ............................4 Section 2 Installation Location ..........................5 Clearance Requirements ....................6 Weight Of Equipment ...................... -
Page 4: General Information
On the compressor stand next to the N225L-E N227 temperature control N227-E N227L N227L-E Warranty Information • Register your product for warranty, • Verify warranty information, • View and download a copy of your warranty, at www.delfield.com/warranty Part Number: 9291456 07/16... -
Page 5: Installation
Section 2 Installation Warning DANGER This equipment is intended for indoor use only. Do not Installation must comply with all applicable fire and install or operate this equipment in outdoor areas. health codes in your jurisdiction. Caution DANGER Do not position the air intake vent near steam or heat Use appropriate safety equipment during installation exhaust of another appliance. -
Page 6: Clearance Requirements
Installation Section 2 Clearance Requirements Dimensions Model Cabinet DANGER Capacity Minimum clearance requirements are the same for 20.25” 20.25” 23.25” 90lbs (51.4cm) (51.4cm) (59.1cm) (41kg) noncombustible locations as for combustible locations. 24” 21” 22.6” 45lbs The flooring under the appliance must be made of a (61.0cm) (53.3cm) (57cm) -
Page 7: Cutout Installation Dimension
Section 2 Installation Cutout Installation Dimension 204 & 204P Cutout Details Model Cutout Size Mounting Studs 19.25” x 19.25” (49cm x 49cm) 21” x 17.75” (53.3cm x 45.1cm) 204P 21” x 17.75” (53.3cm x 45.1cm) 45” x 13” (114.3cm x 33.0cm) 12.5”... - Page 8 Installation Section 2 307 Cutout Details N225 & N227 louver Details Note The louver provided must be installed in front of the condensing unit’s finned coil. A second cutout must be made at the opposite end of the equipment to allow air flow through the unit.
-
Page 9: Electrical Service
Section 2 Installation Electrical Service RATED AMPERAGES, HORSEPOWER, VOLTAGE & POWER CORD CHART DANGER Model V/Hz/Ph H.P. Plug Check all wiring connections, including factory terminals, before operation. Connections can become 204P loose during shipment and installation. Warning This appliance must be grounded and all field wiring N225 115/60/1 NEMA 5-15P... -
Page 10: Refrigeration
Installation Section 2 Refrigeration Water Connection Warning Model Design Load System Cap. Evap BTU/TD/ Temp Connect to a potable water supply only. All 1/2” (1.3cm) IPS water inlets must be field connected 204P following local code requirements. Drain N225 20/20°/-23° Provided 1”... -
Page 11: Operation

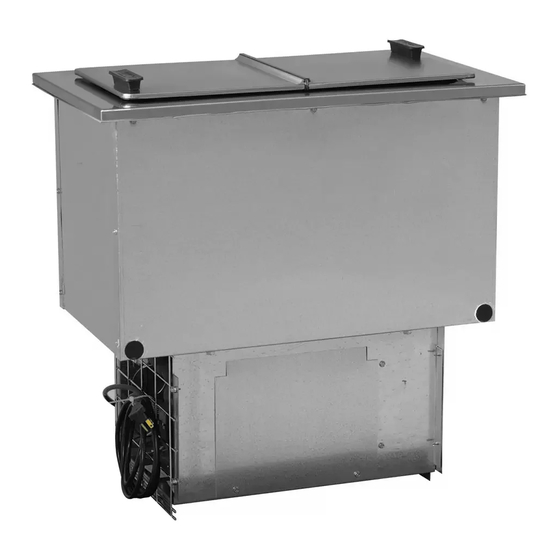

Section 3 Operation N225 & N227 Operation DANGER The models 225 and 227 are designed to hold frozen The on-site supervisor is responsible for ensuring that products at a temperature range of 5°F to -5°F (-15°C operators are made aware of the inherent dangers of to -21°C). - Page 12 Operation Section 3 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9291456 07/16...
-
Page 13: Maintenance
Section 4 Maintenance DANGER DANGER It is the responsibility of the equipment owner to Disconnect electric power at the main power disconnect perform a Personal Protective Equipment Hazard for all equipment being serviced. Observe correct Assessment to ensure adequate protection during polarity of incoming line voltage. -
Page 14: N225 & N227 Cleaning The Condenser Coil
Maintenance Section 4 the stainless steel to avoid marring the finish. If a greasy N225 & N227 CLEANING THE CONDENSER COIL residue persists, use a damp cloth rinsed in a mild dish soap In order to maintain proper refrigeration performance, the and water solution. - Page 16 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
