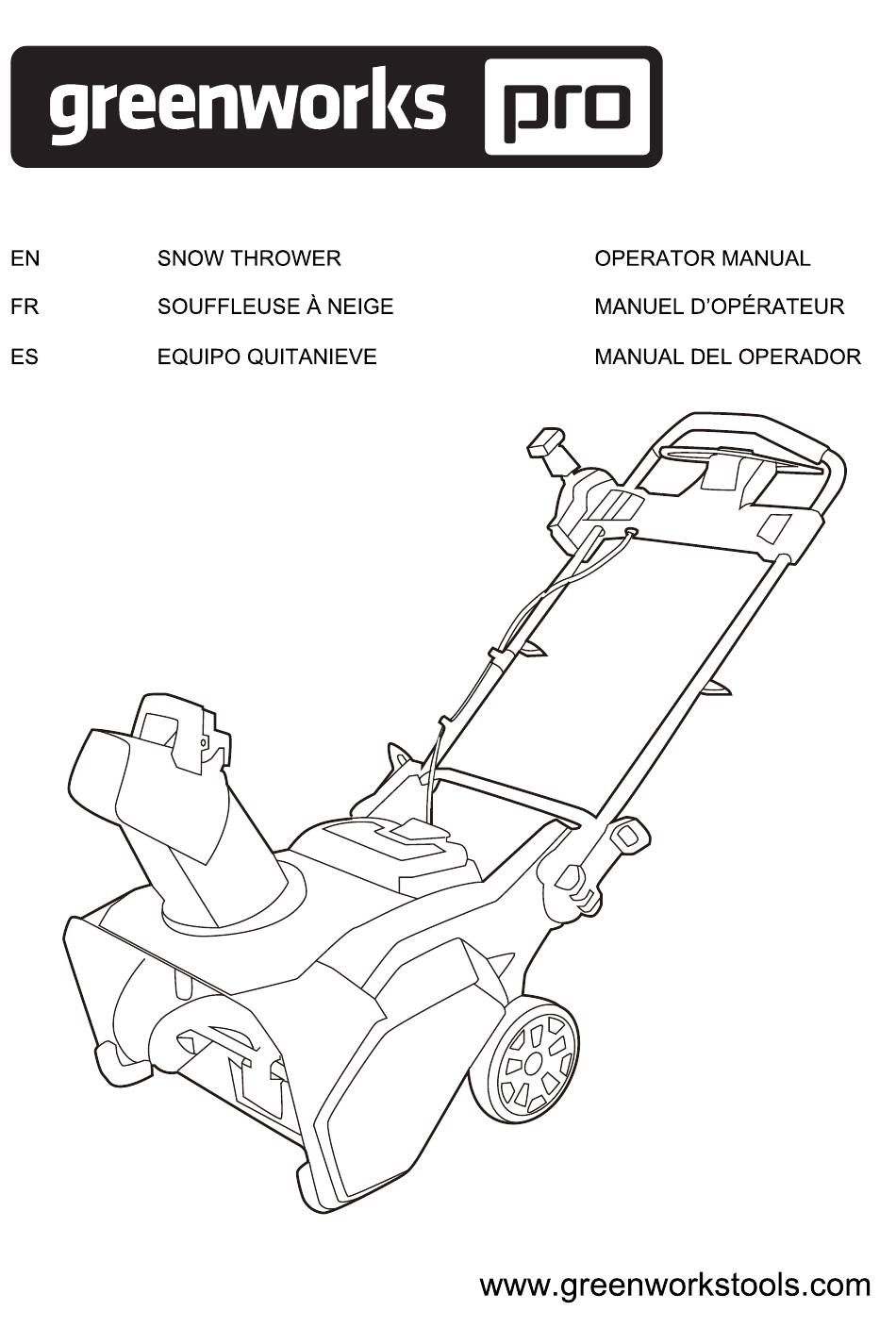

- Page 1 SNC409...
-
Page 3: Table Of Contents
English Description......2 Install the battery pack....7 Remove the battery pack....7 Purpose...........2 Operation........ 7 Overview......... 2 Packing list........2 Cold weather operation....7 Blue LED light......... 7 General appliance Start the machine......7 safety warnings......2 Stop the machine......8 Training........... 2 LED light......... -
Page 4: Description
English The term “appliance" in the warnings refers to your DESCRIPTION battery-operated (cordless) snow thrower. PURPOSE TRAINING This machine is used to remove and clear away snow • Do not allow children under the age of 14 to operate from sidewalks, driveways and other paved ground- this tool. -
Page 5: Operation
English • When battery pack is not in use, keep it away from • Use only attachments and accessories approved by other metal objects, like paper clips, coins, keys, the manufacturer of the appliance (such as wheel nails, screw or other small metal objects, that can weights, counterweights, or cabs). -
Page 6: Recommended Ambient Temperature Range
English of battery pack may create a risk of fire when used Symbol Explanation with another battery pack. • Use appliances only with specifically designated Wear eye protection. battery packs. Use of any other battery packs may create a risk of injury and fire. Thrown objects can ricochet and •... -
Page 7: Environmentally Safe Battery Disposal
English ENVIRONMENTALLY SAFE BATTERY PROPOSITION 65 DISPOSAL WARNING This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive The toxic and corrosive materials below are in the harm. -
Page 8: Unfold The Middle Handle
English Remove the machine from the box. INSTALL THE CHUTE-ROTATION BOX Discard the box and packing material in compliance with local regulations. UNFOLD THE MIDDLE HANDLE Open the quick-release levers (15) on the two Align the holes in the panel of the chute-rotation sides of the middle handle (3). -
Page 9: Install The Battery Pack
English Battery must be charged and stored indoors prior to INSTALL THE BATTERY PACK use of the machine. If the machine does not start: • remove the battery pack from the machine, • charge the battery pack to 15 minutes in warm area, or when the charging light turns green. -
Page 10: Stop The Machine
English NOTE SPEED SWITCH Lower the scraper to the ground to remove the snow. WARNING Keep bystanders a safe distance from the machine. WARNING Press the speed switch (26) towards the rabbit Examine the work area. Remove all stones, sticks, symbol for higher impeller speed and discharge wire, bones, and other debris that can ricochet distance in heavy conditions. -
Page 11: Operation Tips
English You can adjust the chute deflector up and down to GENERAL MAINTENANCE change the throwing distance of the snow. • Before each use, examine the machine for WARNING damaged, missing, or loose parts such as screws, nuts, bolts and caps. Release the bail switch before you adjust the chute •... -
Page 12: Replace The Belt
English Remove the impellers (8). REPLACE THE BELT Install the new impellers (8). Tigthen the 8 sets of nuts and bolts that you removed. REPLACE THE SKID PLATES 31 1316 WARNING NOTE Make sure to turn off the bail lever and remove the battery pack(s) before performing any maintenance The range of adjustable height for skid plates is task on your snow thrower. -
Page 13: Troubleshooting
English Problem Possible Solution TROUBLESHOOTING cause Problem Possible Solution The engine The belt is Replace the belt. cause is on, but damaged. the impeller The handle The bolts Adjust the height of the does not is not in po- are not en- handle and make sure turn. -
Page 14: Items Not Covered By Warranty
English instructions in the owners’ manual supplied with the product from new. ITEMS NOT COVERED BY WARRANTY: Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident, improper maintenance, or alteration; or The unit, if it has not been operated and/or maintained in accordance with the owner's manual;... -
Page 15: Exploded View
English EXPLODED VIEW Part No. Description R0201719-00 Impeller assembly R0200650-00 Scraper Kit R0200662-00 Wheel Assembly R0200651-00 Chute Deflector Assembly R0201839-00 Quick-Release Lever Assembly R0201852-00 Cam Lock assembly R0205865-00 PCB board R0200655-00 Skid plates R0200288-00 Belt R0201854-00 Upper handle assembly...
