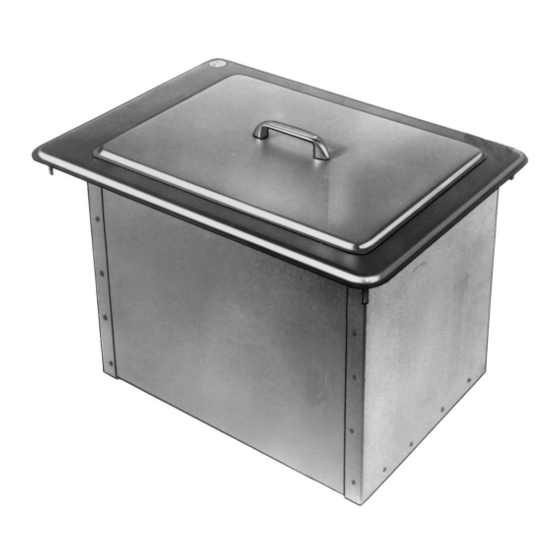

Delfield 305 Specification Sheet

Top is 20-gauge stainless steel with .19" (.48 cm) raised edge on die-
stamped 15.13" x 10.5" (38.4 x 26.7 cm) opening. Opening fitted with one-
piece cover in 20-gauge stainless steel.
Ice compartment measures 14.75" x 10.25" x 12" (37.5 x 26.0 x 30.5 cm)
deep, has liner of ABS plastic with coved corners and has 1" (2.54cm)
diameter drain. Sides and bottom insulated with high-density closed-cell
polyurethane. Bin holds 45 pounds of ice.
Exterior housing is 24-gauge galvanized steel.
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
17.75"
(45.1 cm)
13.25"
(33.7 cm)

CUTOUT DIMENSIONS

PROJECT
ITEM #
QUANTITY
APPROVAL
12.12"
(30.8 cm)
10.26"
(26 cm)

END VIEW

12.00"
(30.5 cm)
15.25"
(38.7 cm)
16.75"
(42.5 cm)
ELEVATION
VIEW
21.25"
(54 cm)
16.43"
(41.7 cm)

PLAN VIEW

DATE
305

Ice Chest

13.00"
(33 cm)
2.81"
(7.14 cm)
1" I.P.S.
(2.54 cm)
DRAIN
CONNECTION
COVER
DIMENSION
11.87" 15.25"
(30.2 cm) (38.7 cm)
