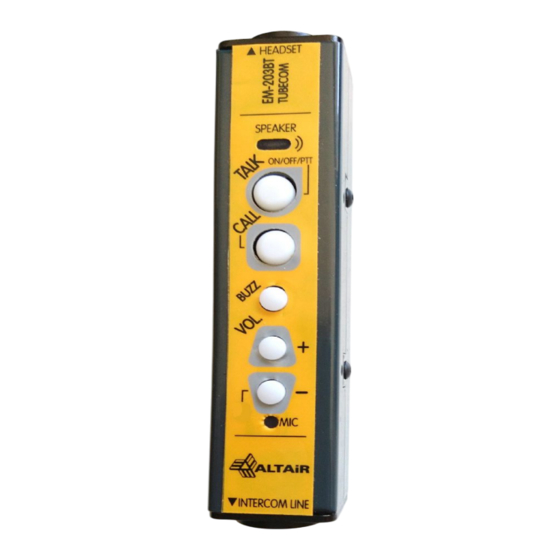

Altair TUBECOM E-200 Series Owner's Manual

Single channel beltpack intercom system
Hide thumbs Also See for TUBECOM E-200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

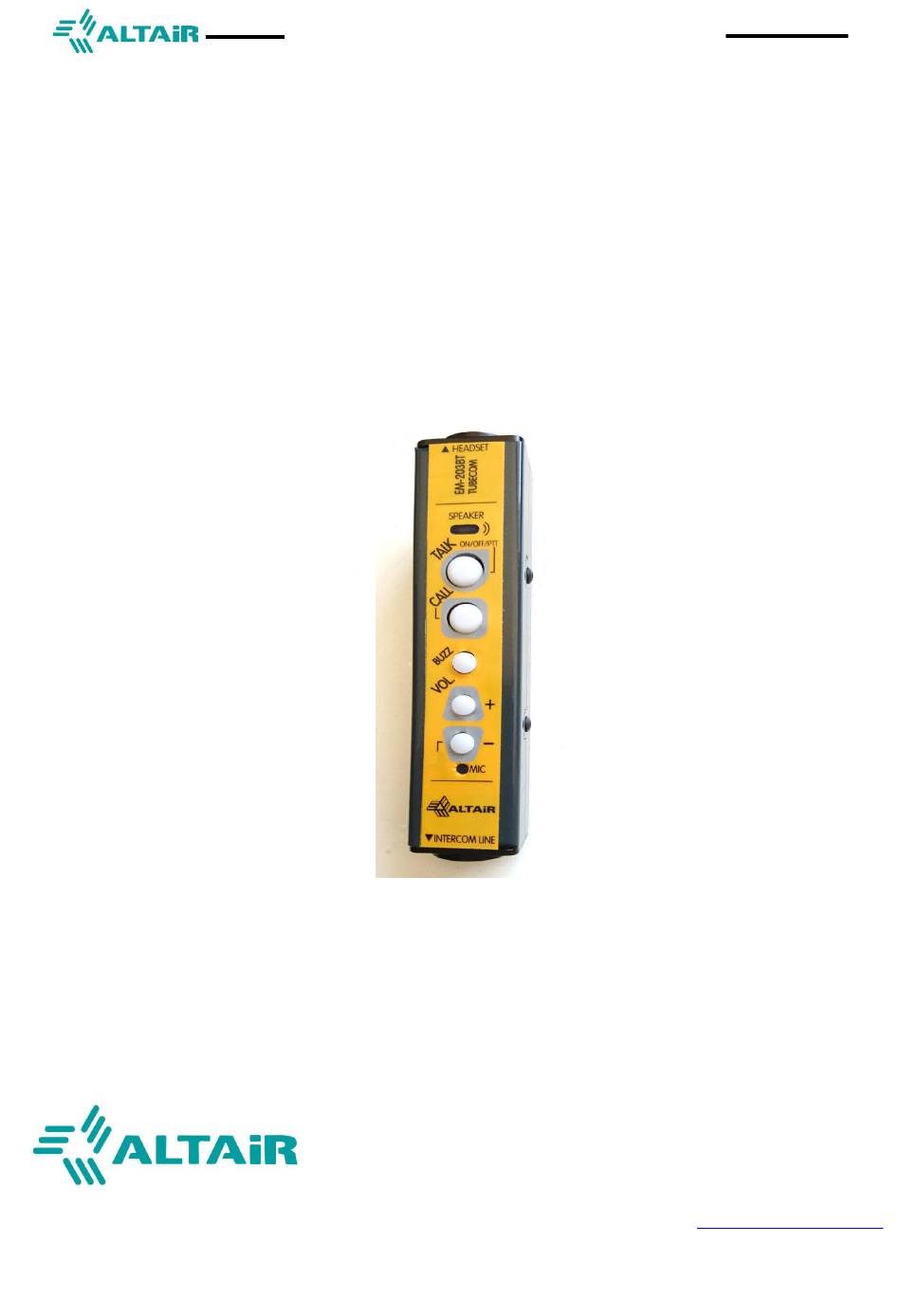

EM-203
SINGLE CHANNEL BELTPACK
E-200 SERIES INTERCOM SYSTEM
OWNERS MANUAL
AUDIO | BROADCAST | COMMUNICATION PRODUCTS
COPYRIGHT Equipos Europeos Electrónicos
EM-203 SINGLE CHANNEL BELTPACK
TUBECOM
Issue 15JUN18
www.altairaudio.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUBECOM E-200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altair TUBECOM E-200 Series

Summary of Contents for Altair TUBECOM E-200 Series

  • Page 1 EM-203 SINGLE CHANNEL BELTPACK EM-203 TUBECOM SINGLE CHANNEL BELTPACK E-200 SERIES INTERCOM SYSTEM OWNERS MANUAL Issue 15JUN18 www.altairaudio.com AUDIO | BROADCAST | COMMUNICATION PRODUCTS COPYRIGHT Equipos Europeos Electrónicos...

  • Page 2: Table Of Contents

    EM-203 SINGLE CHANNEL BELTPACK 1. INTRODUCTION..............................2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS................4 2.1. FRONT REAR ........................... FACE 3. WORKING PRECAUTIONS............................ 4. INSTALLATION..............................4.1. UNPACKING..............................4.2. WEARING THE UNIT............................4.3. INTERCOM LINE CONNECTION 4 ......................5. OPERATION................................5.0 OPERATION MODES ............................. 5.1 HEADSET CONNECTION 1 ........................

  • Page 3: Introduction

    Congratulations on your purchase of the ALTAIR single channel cable based beltpack EM_203 of the E-200 series intercom system. There are a lot of characteristics that makes ALTAIR EM-203 one step further in the wired intercom beltpack industry, some are enumerated here: Miniature form factor design, cased in steel durable box.

  • Page 4: Switches, Controls, Adjustments And Connectors

    EM-203 SINGLE CHANNEL BELTPACK 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS Find the switches, controls, adjustments, and connectors located in your ALTAIR intercom beltpack station. 2.1. FRONT and REAR face. 1 HEADSET CONNECTOR. XLR-4M 2 SPEAKER . DISABLED WHEN HEADSET PRESENCE OR DURING PANEL MIC TALK 3 PANEL MIC.

  • Page 5: Working Precautions

    Save the original packing, you could use if you need to transport the unit. NEVER SHIP THE BELTPACK WITHOUT ITS ORIGINAL PACKING. 4.2. WEARING THE UNIT The ALTAIR EM-203 beltpack station is designed to be used on different ways depending on the application environment. DESK STATION Unit can be used as a desk station for listen only and infrequent talking.

  • Page 6: Intercom Line Connection

    EM-203 SINGLE CHANNEL BELTPACK SHIRT POCKET POSITION The low size and weight of the unit makes it possible to hold the beltpack on a shirt pocket when a permanent listening is needed. By adjusting the listening level conveniently, conversations can be done in a near privacy case as the speaker is very close to the ears.

  • Page 7: Operation Modes

    EM-203 SINGLE CHANNEL BELTPACK The unit can accommodate dynamic or electret microphones enabling the use of different types of headsets and hands-free earpieces in the market. The EM-203 is designed for its connection to an intercom channel line and is provided with a CALL switch, a MIC on/off switch, BUZZER on/off switch, listening volume control, side-tone control and connectors to it’s connection to the intercom line.

  • Page 8: Speaker 2

    The unit provides a MIC-KILL (turns off the MIC) system, so that when the mic is enabled it is possible to be remote muted by the MIC-KILL function from any ALTAIR EF/PS/WBS base stations. This MIC-KILL system is proprietary so is not compatible with other intercom brands.

  • Page 9: Buzzer On/Off

    EM-203 SINGLE CHANNEL BELTPACK 5.6 BUZZER ON/OFF This switch enables/disables the buzzer sound when the unit receives a call. When this switch is pressed, and the buzzer is enabled, it will be disabled, and the LED indicator will turn off. On the other hand, if the buzzer was disabled, it will be enabled and the LED indicator will lighten up.

  • Page 10: Technical Specifications

    EM-203 SINGLE CHANNEL BELTPACK 7. TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS NUMBER OF CHANNELS SINGLE CHANNEL station INTERCOM LINE IMPEDANCE: 220 ohm AC/4700 ohm DC. NOMINAL/MAXIMUM LEVEL: -10 dBu / 0 dBu. FREQUENCY RESPONSE: 100 Hz – 10 KHz (-3 dB). POWER REQUIREMENT: +12 to +32 VDC / 35 mA (50 mA max) DYNAMIC RANGE: 80 dB.

  • Page 11: Warranty

    EM-203 SINGLE CHANNEL BELTPACK 8. WARRANTY This unit is warranted by Equipos Europeos Electrónicos to the original user, against flaws in the manufacturing and in the materials, for a period of two years (one year depending on some countries), starting from the date of sale. Flaws due to wrong use of the unit, internal modifications or accidents, are not covered by this warranty.
  • Page 12 EM-203 SINGLE CHANNEL BELTPACK European Union Waste Electronics Information Unión Europea Información sobre residuos electrónicos Waste from Electrical and Electronic Equipment (WEEE) directive The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products. If you have further questions about recycling, contact your local sales office.

This manual is also suitable for:

Tubecom em-203
