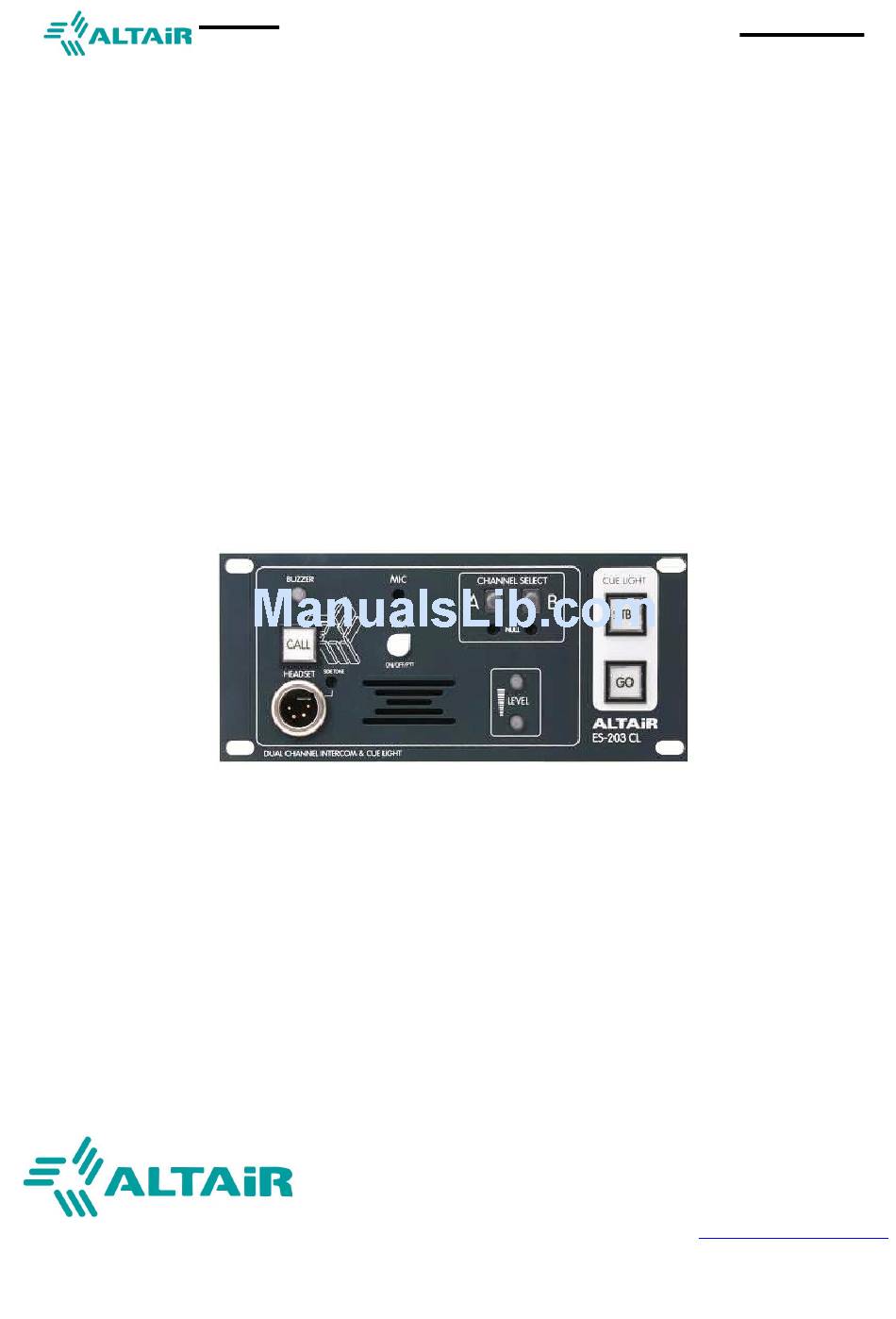

ES-203 CL
OWNERS MANUAL
AUDIO | BROADCAST | COMMUNICATION PRODUCTS
COPYRIGHT Equipos Europeos Electrónicos
ES-203 CL DUAL CHANNEL DESK STATION
DUAL CHANNEL DESK STATION
WITH CUE LIGHT RECEIVER
EC-200
CUE LIGHT MASTER STATION
ER-200
CUE LIGHT RECEIVER
E-200 Series Intercom Systems
Issue 14A16
www.altairaudio.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altair ES-203 CL
Summary of Contents for Altair ES-203 CL
- Page 1 ES-203 CL DUAL CHANNEL DESK STATION ES-203 CL DUAL CHANNEL DESK STATION WITH CUE LIGHT RECEIVER EC-200 CUE LIGHT MASTER STATION ER-200 CUE LIGHT RECEIVER E-200 Series Intercom Systems OWNERS MANUAL Issue 14A16 www.altairaudio.com AUDIO | BROADCAST | COMMUNICATION PRODUCTS...
-
Page 2: Table Of Contents
ES-203 CL DUAL CHANNEL DESK STATION 1. INTRODUCTION..............................2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS................4 2.1. FRONT PANEL..............................2.2. REAR PANEL..............................3. WORKING PRECAUTIONS............................ 4. INSTALLATION..............................4.1. UNPACKING..............................4.2. MOUNTING..............................4.3. CONNECTOR PANEL BOTTOM/SIDE MOUNTING..................7 4.4. 1-2-3 INTERCOM LINE CONNECTION......................4.5. CH-B POWER CONFIGURATION JUMPER.................... -
Page 3: Introduction
200/PS-200 is necessary to power the system components and setting the operating level. The ALTAIR ES-203 CL includes a two channel intercom desk station plus a CUE Light (receiver) system. Both systems are designed to share signals on the same simple cabling consisting of a two wire screened cable than can be extended to more than 200 meters without loses. -
Page 4: Switches, Controls, Adjustments And Connectors
ES-203 CL DUAL CHANNEL DESK STATION 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS Find the switches, controls, adjustments, and connectors located in your ALTAIR intercom desk station. 2.1. FRONT PANEL 1 CALL SWITCH 2 BUZZER ON/OFF SWITCH. HOLD FOR SPECIAL SETTINGS. MORE INFO IN REAR PANEL 3 TALK (MIC) SWITCH. -
Page 5: Rear Panel
ES-203 CL DUAL CHANNEL DESK STATION 2.2. REAR PANEL 1. INTERCOM LINE A. CH-A XLR3-M AND XLR3-F CONNECTORS 2. INTERCOM LINE A/B. CHA/CHB TERMINAL BLOCK CONNECTORS 3. INTERCOM LINE B. CH-B XLR3-M AND XLR3-F CONNECTORS 4. CH-B POWER. CONFIGURATION JUMPER FOR CH-B CONNECTOR 5. -
Page 6: Working Precautions
INTERCOM DESK STATION WITHOUT ITS ORIGINAL PACKING. 4.2. MOUNTING The ALTAIR ES-203 CL desk station is designed to be mounted in different ways depending on the application environment. The rear connectors pcb can be mounted on the rear or in the upper side to facilitate connection. -
Page 7: Connector Panel Bottom/Side Mounting
The terminal block solution minimizes the boxing dimension and permits an easy and low cost way for a no solder quick installation. Two terminal plugs are included in the ES-203 CL supply. NOTE: The next list shows the signal distribution in the pin XLR connectors. -
Page 8: Ch-B Power Configuration Jumper
ES-203 CL DUAL CHANNEL DESK STATION Certain rules have to be followed when installing the cables of an intercom system to avoid ground loops and to minimize the power loss and the possible effect of electromagnetic fields. *Do not connect the XLR pin 1 to the XLR metal housing or to metal wall boxes. The ground loop created could increases notably the system background noise. -
Page 9: Operation
Talk key reverts to ON/OFF/PTT normal operation. 5.2. CALL SWITCH The ES-203 CL desk station unit is provided with a CALL switch and operates over the selected channel A or B or both A+B. The CALL switch allows to generate a call signalling sent to the selected intercom channels. -
Page 10: Buzzer On/Off 2
5.4. TALK (MIC) button The ES-203 CL desk station unit is provided with a TALK switch and operates over the selected channel A or B or both A+B. The TALK switch allows to open the microphone used; that way, we can speak with other units connected to the selected intercom channels. -
Page 11: Null Adjustment 5
ES-203 CL DUAL CHANNEL DESK STATION 5.6. NULL ADJUSTMENT Each channel includes a null adjustment to set up the return cancellation of the intercom line. The unit comes from factory with a initial setting but is necessary to set up in the final installation as the calibration depends on the characteristicas of the cabele used and the number of units connected on each line. -
Page 12: Sidetone Control 9
ES-203 CL DUAL CHANNEL DESK STATION GOOSENECK USE This connector allow for connection of a gooseneck microphone. The microphone does not disables the speaker and panel mic so for operating it is necessary to select GOOSENECK mic on the special settings configuration to disable the panel mic and to set the talk key in normal ON/OFF/PTT mode. -
Page 13: Cue Light Go Indicator 12
ES-203 CL DUAL CHANNEL DESK STATION This volume control is used also when adjusting balance or mix settings between level A and level B for monitoring purposes. See channel select paragraph above for operation. 5.13. CUE LIGHT INDICATOR GO indicator light shows the user (users) to run the action involved in the CUE. -
Page 14: Set-Up Of Special Settings
When the unit is set to gooseneck mode –hands free mode- the panel mic is disabled and it is necessary to install a 4 pin gooseneck as the Altair MF-200. Speaker is always activated so the volume and side tone settings must be set accordingly to avoid undesirable feedbacks when... -
Page 15: Cue Light System Description
-ER-200 standalone Cue Light receiver. -ES-203 CL wall/desk intercom station with Cue Light. See description above. All three devices are designed to be integrated into the Altair wired intercom system sharing the power supply and wiring. As seen on the diagram, the master panel EC-200 makes the link from the existing intercom system to the cue light system. -
Page 16: Cue Light Operation
RED lights flashing on both sides on all wall stations and receivers connected on this line. -Operator/artist of any wall station ES-203 CL or receiver ER-200 sees the red light flashing and depresses STBY as acknowledge so turning RED light steady on all connected wall stations, receivers and master panel. -
Page 17: Cue Light Master Ec-200
ES-203 CL DUAL CHANNEL DESK STATION 7.2. CUE LIGHT MASTER EC-200 The single channel cue light master EC-200 generates the cue signals and mixes it to the intercom line. This station can be used stand alone in single channel operation or used in multiple cue channels. -
Page 18: Cue Light Receiver Er-200
ES-203 CL DUAL CHANNEL DESK STATION 7.3. CUE LIGHT RECEIVER ER-200 The single channel cue light RECEIVER ER-200 receives the cue signals from the master unit. This station can be placed on a desk position or mounted on the optional PC-4-200 panel for a clean and easy operation. -
Page 19: Troubleshooting Guide
ES-203 CL DUAL CHANNEL DESK STATION 8. TROUBLESHOOTING GUIDE TROUBLESHOOTING GUIDE WHEN POSSIBLE CAUSE and SOLUTIONS 1-Headset mic does not work Check type of microphone capsule used. In case of electret type, set preamp phantom powering > Holding TALK key... -
Page 20: Technical Specifications
92 dB SLP/1 m POWER: 4 WATT CHANNELS # ONE CHANNEL (CHANNEL A only) NUMBER OF STATIONS 8 UNITS maximum (ES-203 CL / ER-200) CUE LIGHT SYSTEM STAND-BY function KEY BUTTON and RED INDICATOR GO function GREEN INDICATOR GOOSENECK MICROPHONE... -
Page 21: Warranty
ES-203 CL DUAL CHANNEL DESK STATION 10. WARRANTY This unit is warranted by Equipos Europeos Electrónicos to the original user, against flaws in the manufacturing and in the materials, for a period of two years (one year depending on some countries), starting from the date of sale. - Page 22 ES-203 CL DUAL CHANNEL DESK STATION European Union Waste Electronics Information Unión Europea Información sobre residuos electrónicos Waste from Electrical and Electronic Equipment (WEEE) directive The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products. If you have further questions about recycling, contact your local sales office.
