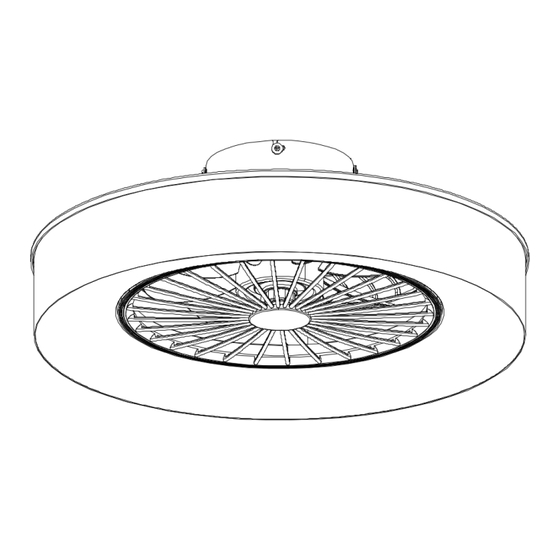

- Page 1 LUCCI AIR MONSANTO FLUSH DC FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0-AU (07/2024)
-
Page 2: Safety Precautions
MONSANTO DC Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 MONSANTO DC Fan Installation Instructions the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
MONSANTO DC Fan Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Tools Required
MONSANTO DC Fan Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 MONSANTO DC Fan Installation Instructions DO NOT install the fan on an angled ceiling. HANGING THE FAN ASSEMBLY • Lift the fan assembly（1）up to the mounting bracket. Hang the safety cable (2) from the fan assembly onto the J-hook (3) of the mounting bracket. (Fig.4) Fig.
- Page 7 MONSANTO DC Fan Installation Instructions Fig. 5 From mains supply to terminal block on the canopy of fan assembly: (Fig. 5) 1. Connect the live supply wire to the “L” terminal of the terminal block on the canopy of fan assembly.
- Page 8 MONSANTO DC Fan Installation Instructions Fig. 6 INSTALLATION OF THE REMOTE CONTROL HOLDER (Fig. 7) 1. Locate a suitable wall to fix the remote control holder with the 2 screws & 2 Anchors . (Fig.7a). 2. Slide the remote into the holder to rest the remote. (Fig. 7b) Fig.
- Page 9 MONSANTO DC Fan Installation Instructions USING YOUR CEILING FAN REMOTE CONTROL (Fig.8) 1. Open the battery compartment cover by removing the securing screw and insert 2 x AAA battery. Note the correct battery polarity (+/-) when inserting the battery, and then replace the cover and secure with the screw.
- Page 10 MONSANTO DC Fan Installation Instructions REPAIRING THE FAN RECEIVER & REMOTE PAIRING NOTE: The pairing of the remote and receiver has been done at the factory. When the ceiling fan is installed, pairing the fan receiver and remote is NOT required.
-
Page 11: After Installation
MONSANTO DC Fan Installation Instructions AFTER INSTALLATION NOTE: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. - Page 12 MONSANTO DC Fan Installation Instructions SAFETY PRECAUTIONS FOR BATTERY WARNING – Keep new and used batteries away from children. CAUTION – Do not ingest battery—Chemical burn hazard. Always use 2 x AAA battery type with this ceiling fan remote controller.
- Page 13 MONSANTO DC Fan Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 14 MONSANTO DC Fan Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 Complete and retain this form for your personal records and warranty purposes.
