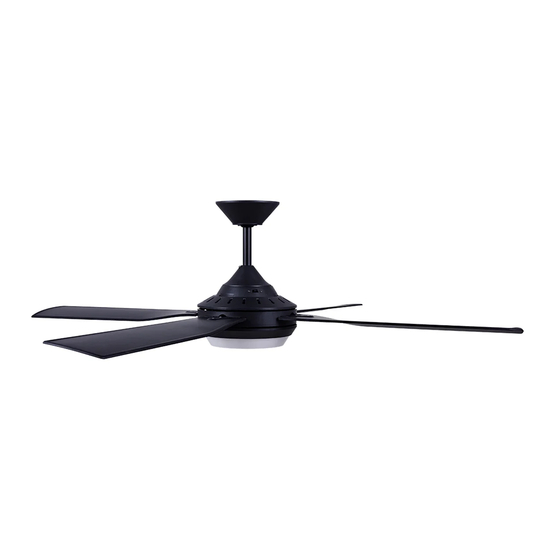

Summary of Contents for LUCCI Air AIRFUSION MOONAH Series

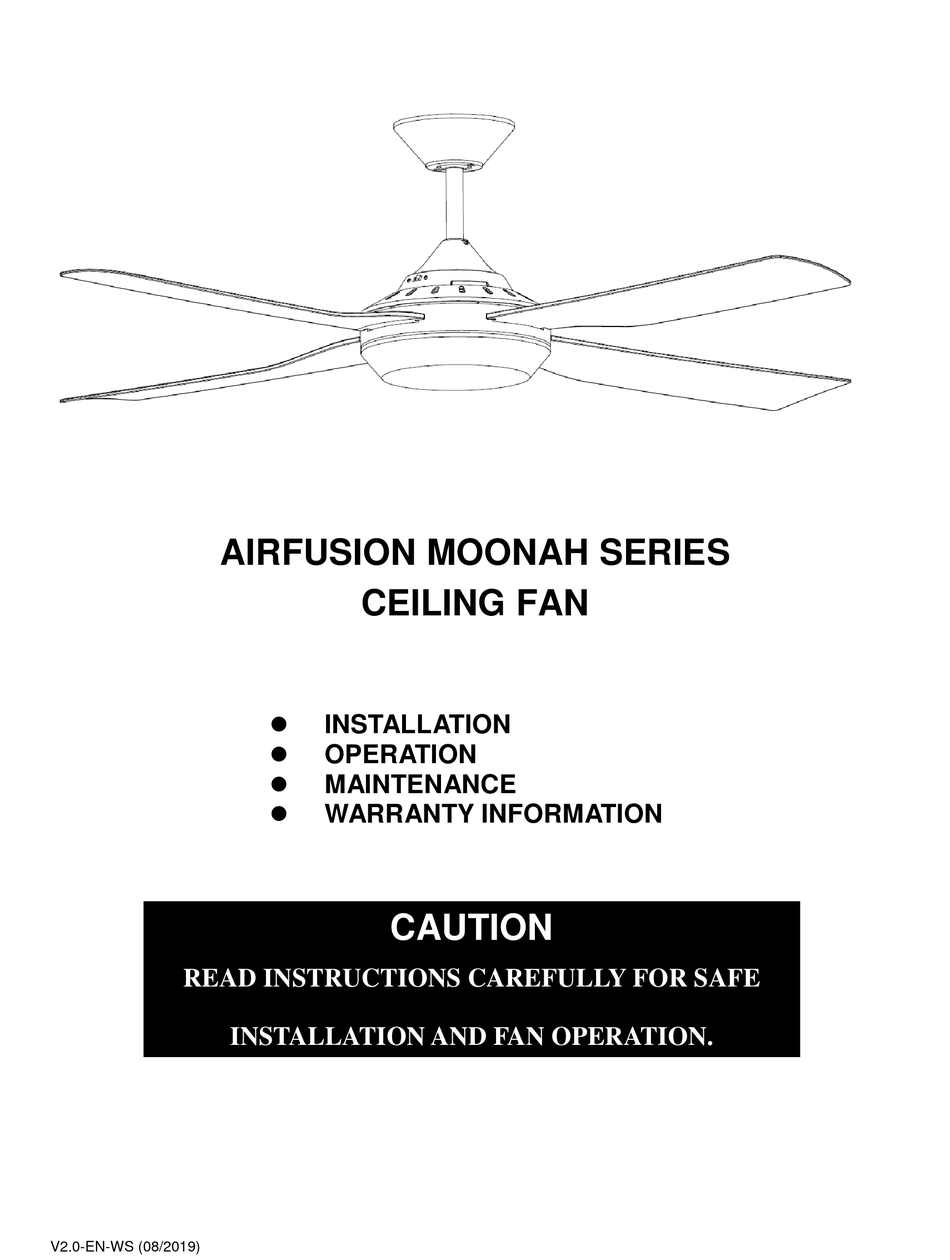

- Page 1 AIRFUSION MOONAH SERIES CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V2.0-EN-WS (08/2019)
-
Page 2: Safety Precautions
Moonah Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. SAFETY PRECAUTIONS In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been... - Page 3 Moonah Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Moonah Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Moonah Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with two long screws provided. -
Page 6: Hanging The Fan
Moonah Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.4) Fig. -
Page 7: Electrical Wiring Diagram
Moonah Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when no light kit is used with the ceiling fan. - Page 8 Moonah Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold seperately) Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 6), for (Fig.7 and Fig.8) 1/ Remote without plugs Fig. 7 2/ Remote with quick connectors (using quick connectors) Fig.
-
Page 9: Finishing The Installation
Moonah Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 10: Using Your Ceiling Fan
Moonah Installation Instructions USING YOUR CEILING FAN FAN WALL CONTROL Turn on the power and check the operation of the fan. • OFF Position – Fan off • 3rd Position – Low fan speed • 2nd Position – Medium fan speed •... -
Page 11: After Installation
Moonah Installation Instructions AFTER INSTALLATION WOBBLE: NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. -
Page 12: Technical Information
Moonah Installation Instructions TECHNICAL INFORMATION 48” fan with light 48” fan only 52” fan with light 52” fan only Fan Models (DK66-48-L) (DK66-48) (DK66-52-L) (DK66-52) Rated Voltage 220-240V~ 50Hz Rated Wattage (Motor) Rated wattage 18W, 1300lm, 3000K 18W, 1300lm, 3000K (Lamp) Weight 6.4kg... - Page 13 Moonah Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 14 Moonah Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………… DATE OF PURCHASE………………………………………………………………...
