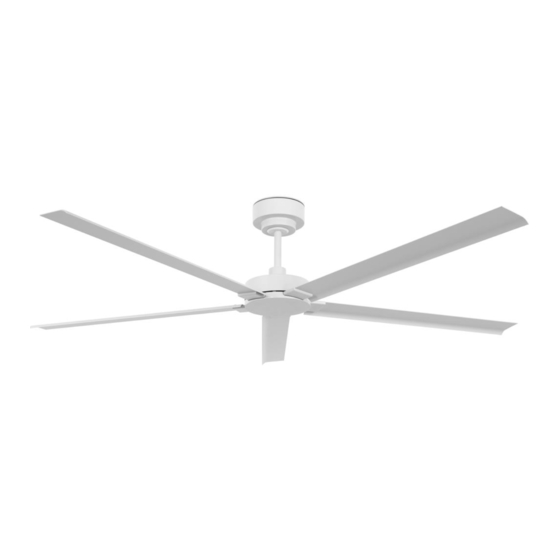

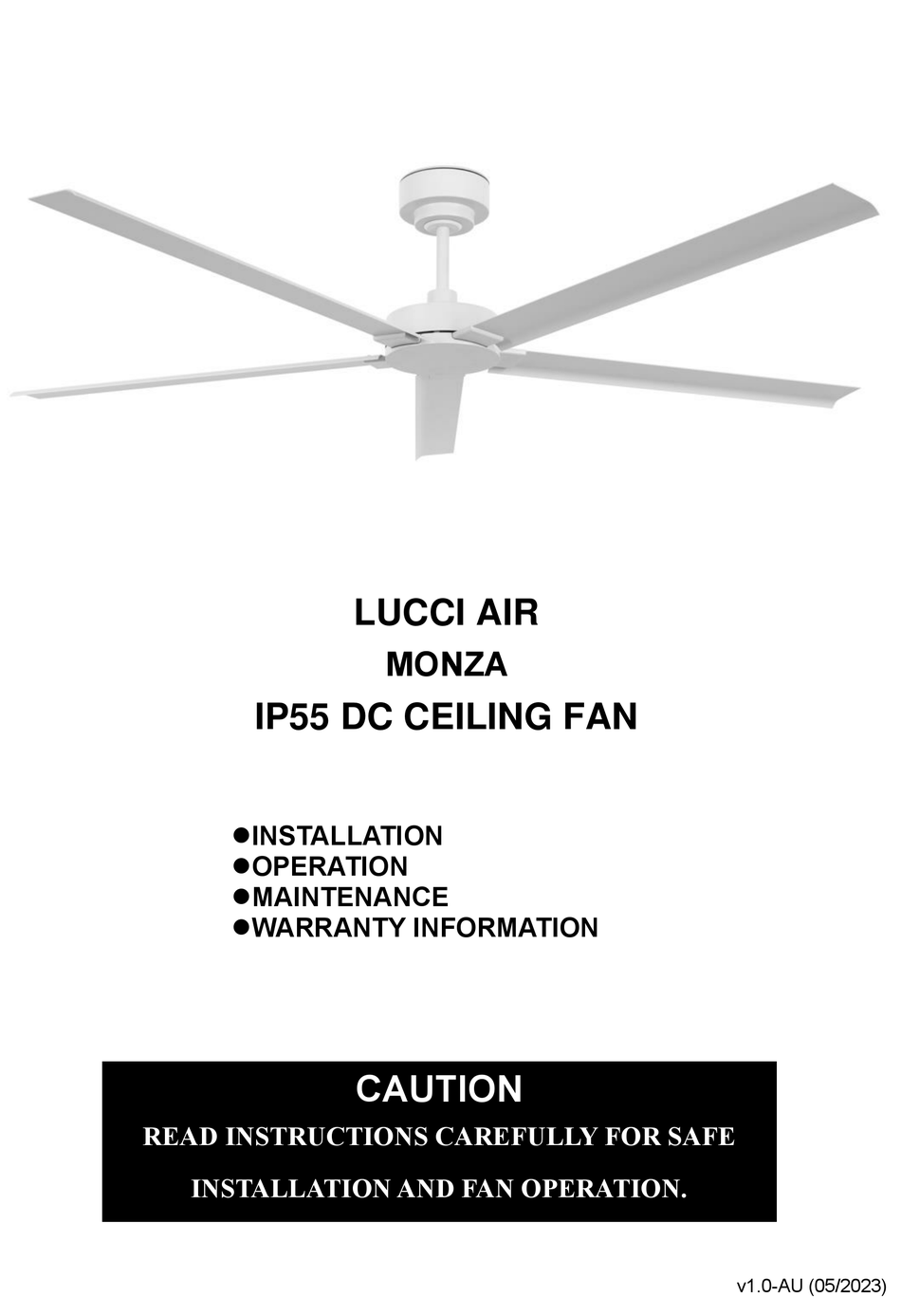

- Page 1 LUCCI AIR MONZA IP55 DC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. v1.0-AU (05/2023)
-
Page 2: Safety Precautions
MONZA IP55 DC Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 MONZA IP55 DC Fan Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
MONZA IP55 DC Fan Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
MONZA IP55 DC Fan Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations. INSTALLING THE MOUNTING BRACKET •... - Page 6 MONZA IP55 DC Fan Installation Instructions ANGLED CEILING INSTALLATION The hanging system of this fan is ONLY suitable for flat ceiling installation. DO NOT install the fan on an angled ceiling. INSTALLING THE DOWN ROD (Fig. 4) 1. Remove the ball joint (4) and dowel pin (3) by loosening the set screws (5) from the down rod (6).
- Page 7 MONZA IP55 DC Fan Installation Instructions 3. Loosen the set screws (8) on the down rod coupling housing (9). (Fig. 4.3) Fig. 4.3 3. Carefully feed the fan wires up through the down rod (6). (fig. 4.4) 4. Assemble the down rod (6) into the down rod coupling housing (9), by inserting and line up the down rod coupling housing holes with the down rod holes and insert the hitch pin (2) and secure with the lock clip (1).
- Page 8 MONZA IP55 DC Fan Installation Instructions 6. Insert the decorative cover (7) onto the down rod (6) to cover the down rod coupling housing (9). Finally install the decorative cover (7) onto the fan assembly (10), secure it by turning it clockwise. (Fig. 4.5) Fig.
-
Page 9: Hanging The Fan
MONZA IP55 DC Fan Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig. 5) Fig. - Page 10 MONZA IP55 DC Fan Installation Instructions Fig. 6 Carefully insert the receiver above the hanger ball in the remainder spacing in the mounting bracket. Take care not to damage or loosen any of the wiring. (Fig. 7). Fig. 7 9 | P a g e...
-
Page 11: Finishing The Installation
MONZA IP55 DC Fan Installation Instructions FINISHING THE INSTALLATION NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. - Page 12 MONZA IP55 DC Fan Installation Instructions INSTALLATION OF BLADE (Fig. 10) 1. Mount the fan blade onto the fan assembly using three blade screws (supplied in fan parts bag) (Fig.4). Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing.
-
Page 13: Remote Control
The fan must be operating to activate the reverse function. : Light On /Off Button Touch the button to turn on /off the light (Remark: this MONZA fan is without light) : Fan Increase Speed Button Touch the button to increase the fan speed, the fan has total 6 speeds. - Page 14 MONZA IP55 DC Fan Installation Instructions The remote has memory function. If the fan is turned off by the isolating switch over 7 seconds, the next time to turn on the fan will be on last setting THE FAN RECEIVER & REMOTE PAIRING NOTE: This remote is supplied with default coding, can use the fan without further pairing, When the ceiling fan is installed, pairing the fan receiver and remote is NOT required.
-
Page 15: After Installation
MONZA IP55 DC Fan Installation Instructions RESET TO DEFAULT FOR THE REMOTE CONTROL: Press the button on the remote for 15 seconds within 30 seconds of switching the power ON to the receiver of the ceiling fan. When it exceeds 5 seconds, the LED white indication light ring on the remote edge will flash for twice with full brightness for pairing, keep press the button until exceeds 15 seconds, the LED white indication light ring on the remote edge will flash again, receiver will return to the default factory setting. -
Page 16: Care And Cleaning
MONZA IP55 DC Fan Installation Instructions NOISE: When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan motor noise. - Page 17 MONZA IP55 DC Fan Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 18 MONZA IP55 DC Fan Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 Complete and retain this form for your personal records and warranty purposes.
