INTRODUCTION

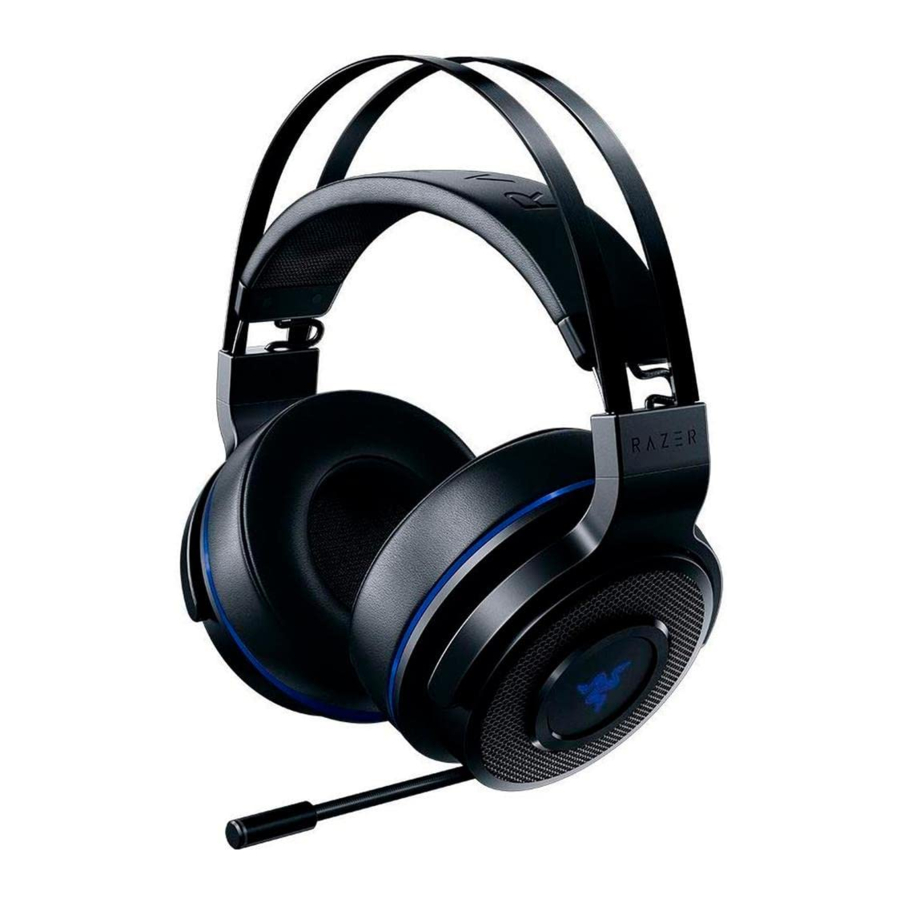

Introducing the ultimate wireless gaming headset with Dolby Digital and Dolby Headphone technology, the Razer Thresher 7.1 On top of delivering lag-free audio Immersion, this premium headset also focuses on undisputable comfort. Lined with leatherette, the lightweight memory foam ear cushions rest perfectly against your head, giving you a natural feel that is second to none. The in-built quick control buttons and a retractable digital microphone provide you with instant access to game and voice balance as well as volume even in the heat of battle.

PACKAGE CONTENTS / SYSTEM REQUIREMENTS

PACKAGE CONTENTS

Razer Thresher 7.1 gaming headset for PS4
7.1 surround sound audio dongle
Optical cable
USB to Micro-USB cable
Important Product Information Guide

SYSTEM REQUIREMENTS

PlayStation®4
OR
PC(Windows 7 or higher) / Mac (OSX 10.9 or higher)*
A free USB port

*Setup and features may vary

REGISTRATION / TECHNICAL SUPPORT

REGISTRATION
Register your product online at razerzone.com/registration to get real-time information on your product's warranty status.
If you haven't registered for a Razer ID yet, register now at razerzone.com/razer-id to get a wide range of Razer benefits.

TECHNICAL SUPPORT
What you'll get:

1 year limited manufacturer's warranty.
Free online technical support at razersupport.com.

TECHNICAL SPECIFICATIONS

HEADPHONES

Radio frequency: 2.4 GHz
Dolby® Headphone technology
Wireless range: 40 ft/ 12 m
Frequency response: 12 - 28,000 Hz
Impedance: 32 at 1kHz
Drivers: 50 mm, with neodymium magnets
Estimated battery life: 16 hours
Charging Time: 4 Hours

MICROPHONE

Frequency response: 100 - 10,000 Hz
Sensitivity (@1kHz): -42 ± 2dB
Signal-to-noise ratio: >55 dB
Mic design: Uni-directional

APPROXIMATE SIZE AND WEIGHT
GAMING HEADSET

Length: 196 mm / 7.7 in
Width: 214 mm / 8.4 in
Height: 104.8 mm / 4.12 in
Weight: 402 g/ 0.89 lbs

DEVICE LAYOUT

DEVICE LAYOUT - Part 1

Adjustable padded headband
Circumaural, leatherette ear cushions
Microphone LED
Retractable microphone
Razer logo backlighting
LED indicator

Headset power button
Micro-USB charging port
Mic volume control
Audio volume control

DEVICE LAYOUT - Part 2

7.1 surround sound audio dongle
Optical input port
Optical cable
Micro-USB to USB cable

SETTING UP YOUR RAZER THRESHER 7.1

CONNECTING YOUR AUDIO DONGLE TO YOUR PS4

Plug the USB wireless dongle to your PS4.

Plug the optical to mini-optical cable from the USB wireless dongle to your PS4*.

*Not applicable to Playstation Slim models

From the PS4 home Screen, go to Settings > Sound and Screen > Audio Output Settings.

On the Primary Output Port, select DIGITAL OUT (OPTICAL),and then select Dolby Digital 5.1ch.

Note: Please make sure that Dolby Digital 5.Ich is the only selected option on the list

On the Audio Format (Priority), select Linear PCM.

Go to Settings > Devices > Audio Devices, and then select your Razer Thresher 7.1 for the Input Device and Output Device options.

Note: It is recommended to set Volume Control and Adjust Microphone Level to maximum then use the headset controls to fine-tune the settings.

On the Output to Headphones, select Chat Audio.

CONNECTING YOUR AUDIO DONGLE TO YOUR PC

Plug the audio dongle to your PC.

Open your Sound settings from Control Panel > Hardware and Sound > Manage audio devices. You can also right-click on the sound icon on the system tray, and then select Playback devices.

In the Playback tab, select Razer Thresher 7.1 from the list, and then click the Set Default button.

CONNECTING YOUR AUDIO DONGLE TO YOUR MAC

Plug the audio dongle to your Mac.

Open your Sound settings from System Preferences > Sound.

In the Output tab, select Razer Thresher 7.1 from the list.

In the Input tab, select Razer Thresher 7.1 from the list.

USING YOUR RAZER THRESHER 7.1

CHARGING YOUR HEADSET
Plug your Razer Thresher 7.1 to a powered USB port using the Micro-USB to USB cable.

For best results, please fully charge the headset before using it for the first time. A depleted unit will fully charge in about 4 hours.

Understanding The Charging Notifications
The LED indicator on the headset will send out notifications depending on its current charging status, as shown here:

LED NOTIFICATION	SOUND NOTIFICATION	STATUS
Static red	None	Charging
Static blue	None	Charged
Blinking red	Warning tone	Low battery

POWER ON
Press and hold the headset power button until you hear the ON tone, the LED indicator is lit, or until the Razer logo starts blinking.

Note: Keep the devices within close proximity of each other for a faster and more stable connection.

POWER OFF
Press and hold the headset power button until you hear the OFF tone, the LED indicator is off, or until the Razer logo is turned off.

CONNECTING NOTIFICATIONS
The headset and the audio dongle will display notifications depending on its current status, as shown here:

NOTIFICATION	STATUS
Blinking	Searching
Static	Connected

Note: If the headset is not connected, it will automatically power off after a few minutes

USING THE AUDIO VOLUME CONTROL
Rotate the audio volume control to increase or decrease the volume. You will hear a short beep when you reach the minimum or maximum volume.

Press the audio volume button to mute or unmute the in-game audio.
USING THE AUDIO VOLUME CONTROL - Step 2

Press and hold the audio volume button until you hear a tone to enable or disable the virtual surround sound environment.
USING THE AUDIO VOLUME CONTROL - Step 3

USING THE RETRACTABLE MICROPHONE
Pull the tip of the microphone until it is fully extended.

Bend the microphone until it is in front of your mouth, then adjust the length as preferred.
USING THE RETRACTABLE MICROPHONE - Step 2

USING THE MIC VOLUME CONTROL
Rotate the volume control to increase or decrease the microphone volume. You will hear a short beep when you reach either the minimum or maximum volume.
USING THE MIC VOLUME CONTROL - Step 1

Press the mic volume control to mute or unmute the microphone. The microphone LED will light up when muted.
USING THE MIC VOLUME CONTROL - Step 2

Press and hold the mic volume button until you hear a tone to enable or disable mic monitoring.
USING THE MIC VOLUME CONTROL - Step 3

EXTENDING YOUR HEADSET'S LIFESPAN
We recommend stretching the headset gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headset beyond its technical limits.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES
In order to achieve maximum safety while using your Razer Thresher 7.1, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to razersupport.com for support. Do not attempt to service or fix the device yourself at any time.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0ºC(32 ºF)to 40ºC (104º F).Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any activities that requires active awareness of your surroundings.
Listening to excessively loud volumes over extended periods of time can damage your hearing. Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE
The Razer Thresher 7.1 requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup. Do not use soap or harsh cleaning agents.
