Dynabrade Dynabug 57810 Quick Start Manual page 2

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Self Generated Vacuum (Vac-Ready) / Machine Exhaust
57083
Central Vacuum / Machine Exhaust
For Model:
57093 Vacuum Adapter
57065 Cone Muffler
Important Operating, Maintenance and Safety Instructions
Carefully read all instructions before operating or servicing any Dynabrade
Warning: Hand, wrist and arm injury may result from repetitive work motion and overexposure to vibration.
Important: All Dynabrade rotary vane air tools must be used with a Filter-Regulator-Lubricator to maintain all warranties.
Operating Instructions:
Warning: Eye, face, respiratory, sound and body protection must be worn while operating power tools. Failure to do so may result in serious injury or death.
Follow safety procedures posted in workplace.
1. With power source disconnected from tool, securely fasten abrasive/accessory on tool.
2. Install air fitting into inlet bushing of tool. Important: Secure inlet bushing of tool with a wrench before attempting to install the air fitting to avoid
damaging valve body housing.
3. Connect power source to tool. Be careful not to depress throttle lever in the process.
4. Check tool speed with tachometer. If tool is operating at a higher speed than the RPM marked on the tool or operating improperly, the tool should be
serviced to correct the cause before use.
Maintenance Instructions:
1. Check tool speed regularly with a tachometer. If tool is operating at a higher speed than the RPM marked on the tool, the tool should be serviced to
correct the cause before use.
2. Some silencers on air tools may clog with use. Clean and replace as required.
3. All Dynabrade rotary vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the
tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute).
Dynabrade Air Lube (P/N 95842: 1pt. 473ml.) is recommended.
4. It is strongly recommended that all Dynabrade rotary vane air tools be used with a Filter-Regulator-Lubricator to minimize the possibility of misuse due to
unclear air, wet air or insufficient lubrication. Dynabrade recommends the following:
pressure regulation, two-stage filtration of water contaminants and micro-mist lubrication of pneumatic components. Operates 40 SCFM @ 100 PSIG
with 3/8" NPT female ports.
5. Use only genuine Dynabrade replacement parts. To reorder replacement parts, specify the Model #, Serial #, and RPM of your machine.
6. A Motor Tune-Up Kit (P/N 96024) is available which includes assorted parts to help maintain motor in peak operating condition.
7. Mineral spirits are recommended when cleaning the tool and parts. Do not clean tool or parts with any solvents or oils containing acids, esters, keytones,
chlorinated hydrocarbons or nitro carbons.
Safety Instructions:
Products offered by Dynabrade should not be converted or otherwise altered
from original design without expressed written consent from Dynabrade, Inc.
•
Important: User of tool is responsible for following accepted safety codes such as those published by the American National Standards Institute (ANSI).
•
Operate machine for one minute before application to workpiece to determine if machine is working properly and safely before work begins.
•
Always disconnect power supply before changing abrasive/accessory or making machine adjustments.
•
Inspect abrasives/accessories for damage or defects prior to installation on tools.
•
Please refer to Dynabrade's Warning/Safety Operating Instructions Tag (Reorder No. 95903) for more complete safety information.
Model Motor
Number HP (W)
57810 .2 (179)
57811-14 .24 (179)
Additional Specifications: Air Inlet Thread 1/4" NPT • Hose Size 1/4" or 8mm
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

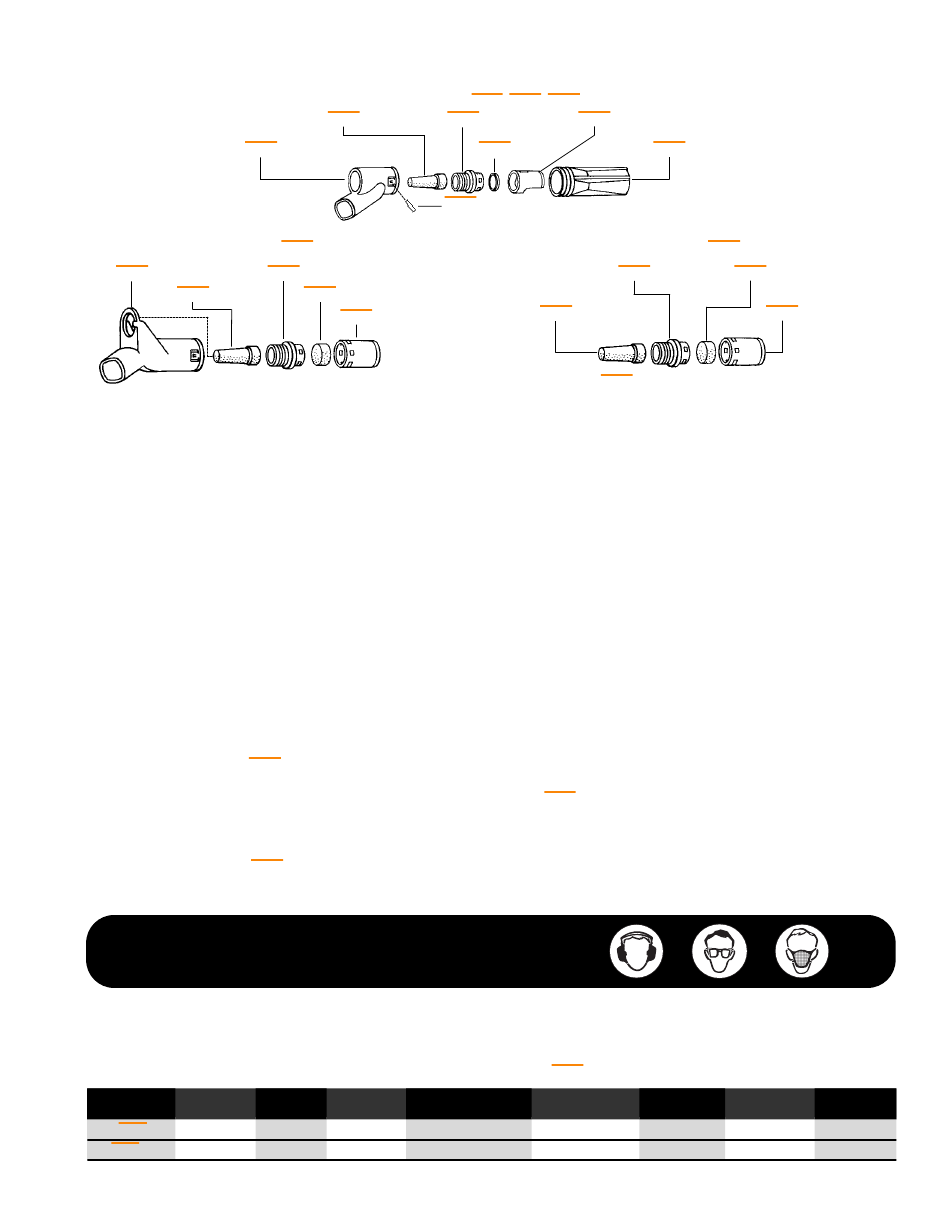

Machine Exhaust Assemblies
For Models: 57811, 57812,
57065 Cone Muffler
Vacuum Adapter
96197
57814
57066 Muffler Body
56027 Muffler Insert (2)**
56028 Muffler Cap
**Muffler inserts available in Package of 30 - P/N 56054.
Motor Sound Maximum Air Flow
RPM Level CFM/SCFM (LPM)
10,000 80 dB(A) 2/16 (453)
10,000 83 dB(A) 2/16 (453)
57813
57066 Muffler Body 57068 Vac Nozzle
95526 O-Ring
Dowel Pin
Non-Vacuum / Machine Exhaust
57066
57065 Cone Muffler
® Abrasive Power Tool.
11405 Air Line Filter-Regulator-Lubricator — Provides accurate air
Air Pressure
PSIG (Bars)
90 (6.2)
90 (6.2)
2
57067 Vac Tube
For Model: 57810
Muffler Body 56027 Muffler Insert (2)**
56028 Muffler Cap
Weight Length
Pound (kg) Inch (mm)
2.8 (1.3) 7-1/4 (184)
2.6 (1.2) 7-1/4 (184)
Height
Inch (mm)
4-1/4 (108)
4-1/4 (108)
