Dynabrade Dynalocke 58430 Operating, Maintenance And Service Instructions

Dynabrade Dynalocke 58430 Operating, Maintenance And Service Instructions

Dual action

Advertisement

Quick Links

Models:
58430 - 5" Pad, Non-Vac
58431 - 5" Pad, Vac-Ready
Index Key
No. Part # Description
1 Sanding Pad: See Chart
2 57262 Balancer Shaft
3 95630 Snap Ring
4 95628 Bearing Shield
5 56053 Bearing Seal
6 56133 Bearing
7 Motor Shaft Balancer:
57268 5"
57269 6"
8 54673 Key
9 56046 Lock Ring
10 02695 Bearing
11 54630 Front Bearing Plate
12 54705 Rotor/Blade Set (5/pkg.)
13 56595 Cylinder
(Includes: 95865 Pin)
14 01020 O-Ring
15 54629 Rear Bearing Plate
16 01206 Bearing
17 56713 Lock Assembly
18 96252 Compression Spring
19 56705 Post Cap
20 57264 Post Assembly
21 56712 Switch Bottom
22 96478 O-Ring
23 57369 Shroud
24 Housing: See Chart
(Includes: 56591 Housing Grip
and Labels)
25 56711 Switch Top
26 96489 Screw
27 95627 Pin
28 56582 Safety Throttle Lever
29 98459 O-Ring
30 56579 Valve Stem
31 56578 Speed Regulator
32 01025 O-Ring (3)
33 56598 Seal
34 51944 Tip Valve
35 51943 Spring
36 56586* Vacuum Plug
37 96459 O-Ring
38 56469 Exhaust Gasket
39 56468 Handle Assembly
(Includes: 51938 Inlet Screen)
40 96469 Screw (2)
41 96454 Screw (2)
42 56597* Muffler
43 56596* Muffler Cap
*Parts included with Non-Vacuum
Models Only.
58435 - 6" Pad, Non-Vac
58436 - 6" Pad, Vac-Ready
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
26
25
24
23
22
O
1
19
18
T
12 N•m
16
13
11
T
34 N•m
9

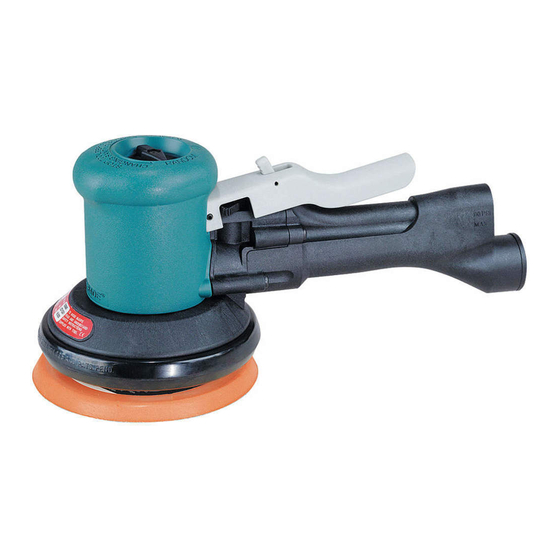

Dual Action Sander
12,000 RPM, 3/16" Orbit Air Motor and Machine Parts
27
29
30
O
28
1
31
O
1
32
35
34
33
38
36
21
20
LEFT HAND
THREAD
A
3
17
8
15
A
14
2
O
6
1
4
12
O
1
2
A
2
10
Parts Page Reorder No. PD06•26
Effective August, 2006
Supersedes: PD04•05
Dynalocke
O
Oil: O
= Air Lube
1
A
Adhesive: A
A
T
Torque: N•m x 8.85 = In. - lbs.
O
1
O
37
1
41
T
39
HOUSING
ASSEMBLY #
64452
64453
64456
64457
64458
64461
LEFT HAND
THREAD
7
5
3
56104 - 5" Vac
56105 - 6" Vac
1
56106 - 5" Non-Vac
56107 - 6" Non-Vac
TM
'
s
KEY
= Loctite #271
2
= Loctite #242
3
40
T
3 N•m
43
42
3 N•m
MODEL
NUMBER
58430
58431
58434
58435
58436
58439
SANDING PADS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dynalocke 58430 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynabrade Dynalocke 58430

  • Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools ’ (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade Warning/Safety Operating Instructions for more complete safety information.
  • Page 2: Operating Instructions

    2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade Rotary Vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 20 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 2 drops per minute).
  • Page 3 7. Install the 54673 Key so that the 90° side of the key fits into the keyway of the shaft and the tapered side of the key fits into the rotor. Install the 54705 Rotor/Blade Set (5) onto the motor shaft balancer. 8. Apply the 95842 Dynabrade Air Lube (10W/NR or equivalent) to the blades. 9. Install the 56595 Cylinder over the rotor so that the short line-up pin fits into the front bearing plate.
  • Page 4: Optional Accessories

    Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed. Operate tool for 30 seconds to determine if tool is operating properly and to allow lubricating oils to properly penetrate motor.

This manual is also suitable for:

Dynalocke 58436Dynalocke 58431Dynalocke 58435
