Models:
57655 - 3-1/2" Non-Vacuum
57656 - 3-1/2" Basic-Vacuum
57657 - 3-1/2" Deluxe-Vacuum
57658 - 3-1/2" Vac-Ready
57659 - 3-1/2" Central Vac-Ready
57660 - 5" Non-Vacuum
57661 - 5" Basic-Vacuum
57662 - 5" Deluxe-Vacuum
57663 - 5" Vac-Ready
57664 - 5" Central Vac-Ready
57665 - 5" Basic-Vac w/ Overskirt
57666 - 5" Deluxe-Vac w/ Overskirt
!
WARNING
KEY
Adhesive:
A
A
= Loctite #271
2
A
= Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
Oil: O
= Air Lube
O
1

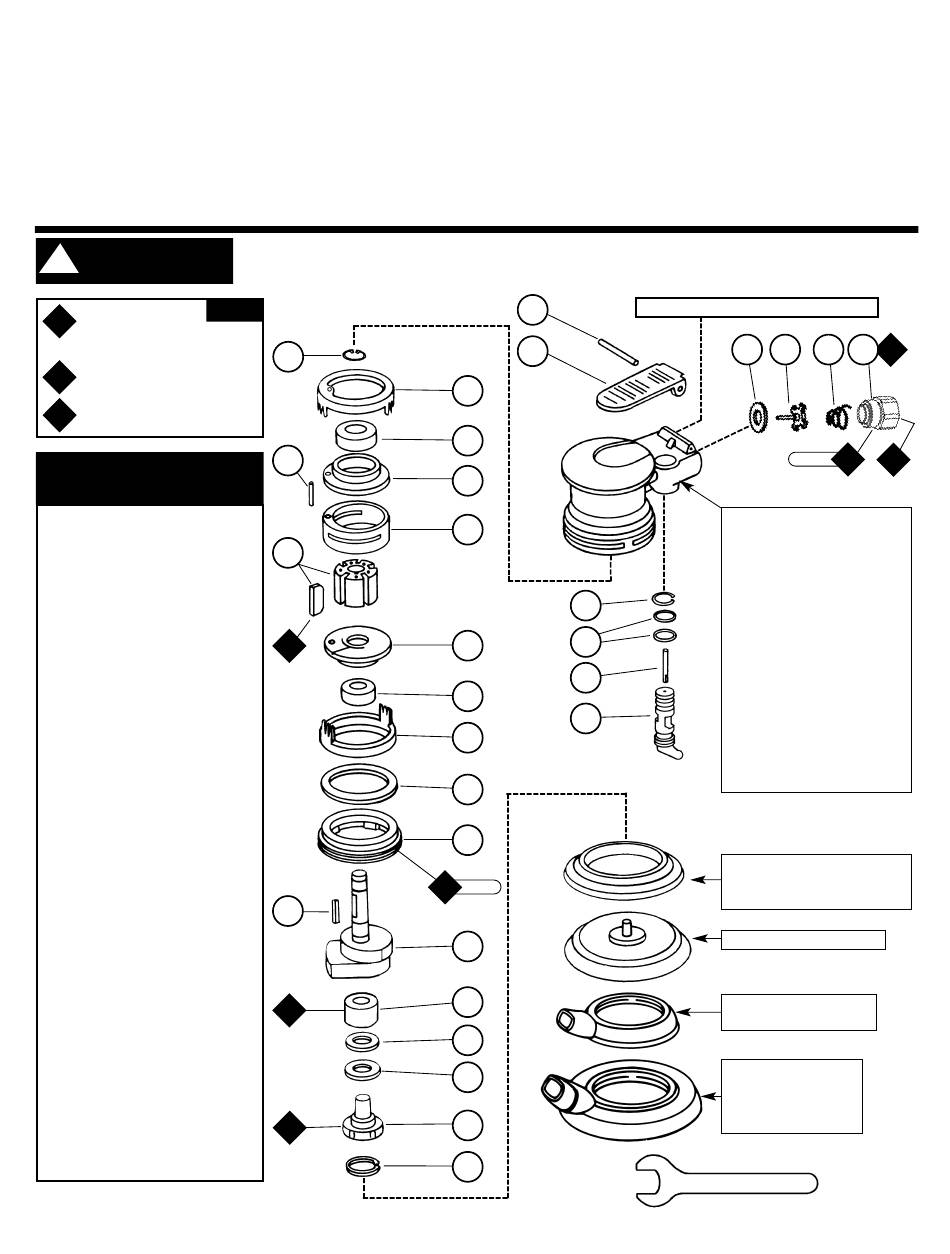

Index Key
No. Part
Description
1
95630 Snap Ring
2
57069 Balancer Shaft
3
95628 Bearing Shield
4
56053 Bearing Seal
5
56052 Balancer Bearing
6
Motor Shaft Balancer
57060 3-1/2"
57061 5"
57062 6"
7
56047 Rotor Key
8
57059 Lock Ring
9
95973 Washer
10
57055 Front Ring
11
57088 Bearing
12
57057 Front Bearing Plate
13
57113 Blade/Rotor Set
14
57058 Cylinder Assembly
(Incl. 95971 Line-up Pin)
15
95971 Line-up Pin
16
57056 Rear Bearing Plate
17
01206 Bearing
18
57054 Rear ring
19
95626 Snap Ring
20
56846 Lever
21
95979 Pin
22
01464 Seal
23
01472 Tip Valve
24
01468 Conical Spring
25
01494 Inlet Bushing
26
95697 Retaining Ring
27
01025 O-Ring (2)
28
01477 Valve Stem
29
57064 Speed Regulator
or
57053 Recessed Speed Reg.
57667 - 5" Vac-Ready w/ Overskirt
57668 - 5" Cntrl. Vac-Ready w/ Overskirt
57669 - 6" Non-Vacuum
57670 - 6" Basic-Vacuum
57671 - 6" Deluxe-Vacuum
57672 - 6" Vac-Ready
57673 - 6" Central Vac-Ready
57674 - 6" Basic-Vac w/ Overskirt
57675 - 6" Deluxe-Vac w/ Overskirt
57676 - 6" Vac-Ready w/ Overskirt
57677 - 6" Cntrl. Vac-Ready w/ Overskirt
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
19
15
13
O
1
7
A
2
A
2
Note: To order replacement parts specify the model and serial number of your machine.

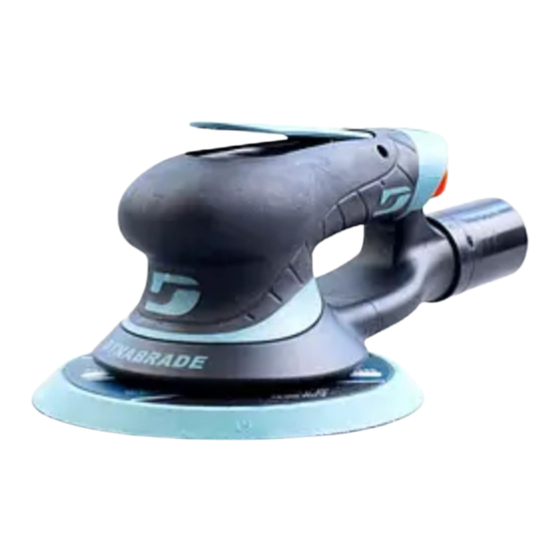

Dynorbital
21
20
18
17
16
14
26
27
12
28
11
29
10
9
8
T
28 N•m
6
5
4
3
2
1
Parts Page Reorder No. PD00•42
Effective June, 2000
Standard Grip
®
Supreme
3/16" Dia. Orbit, 12,000 RPM
Random Orbital Sander
See page 2 for Machine Exhaust Assemblies.
22
23
23 N•m
Housing & Models Used On
57678 - 3-1/2" Non-Vac
57679 - 3-1/2" Basic-Vac, Deluxe-Vac
Vac-Ready
57680 - 3-1/2" Central Vac-Ready
57653 - 5" Non-Vac
57681 - 5" Basic-Vac, Deluxe-Vac
Vac-Ready
57682 - 5" Central Vac-Ready
57683 - 5" Basic-Vac, Deluxe-Vac
Vac-Ready w/ Overskirt
57684 - 5" Central Vac-Ready
w/ Overskirt
57685 - 6" Non-Vac
57686 - 6" Basic-Vac, Deluxe-Vac
Vac-Ready
57687 - 6" Central Vac-Ready
57688 - 6" Basic-Vac, Deluxe-Vac
Vac-Ready w/ Overskirt
57689 - 6" Central Vac-Ready
w/ Overskirt
Lip-Seal Shroud (Non-Vac only)
54458 — 3-1/2" Models
56051 — 5" and 6" Models
Sanding Pads - see page 7.
Vacuum Lip-Seal Shroud
57089 — 5" and 6" Models
Vacuum Overskirts
57084 — 3-1/2" Models
57086 — 5" Models
57087 — 6" Models
50679 26mm Wrench
24
25
A
8
O
T
1
Advertisement
Table of Contents
Related Manuals for Dynabrade Dynorbital Supreme 57655
Summary of Contents for Dynabrade Dynorbital Supreme 57655
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools WARNING (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade’s Warning/Safety Operating Instructions for more complete safety information.
- Page 2 Machine Exhaust Assemblies Self Generated Vacuum (Vac-Ready)/Machine Exhaust For Models: 57656, 57657, 57658, 57661, 57662, 57663, 57665, 57666, 57667, 57670, 57671, 57672, 57674, 57675, 57676 Central Vacuum/Machine Exhaust Non-Vacuum/Machine Exhaust For Models: 57659, 57664, 57668, 57673, 57677 For Models: 57655, 57660, 57669 Index Key Part Description...
- Page 3 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade Rotary Vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute).
- Page 4 Drawing 3 6. Place the 57090 Rotor and 56047 Rotor Key on the motor shaft balancer. Place the 56073 Vanes into the rotor slots. Note: Vanes should be lightly lubricated with Dynabrade Air Lube P/N 95842 (or equivalent) before installation. 57091 7.
- Page 5 Note: Motor should operate at between 11,500 and 12,000 RPM at 6.2 bar (90 PSI). RPM should be checked with a reed tachometer. Before operating, we recommend that 2-3 drops of Dynabrade Air Lube P/N 95842 (or equivalent) be placed directly into the air inlet with throttle lever depressed. Operate the machine for approximately 30 seconds before application to workpiece to determine if machine is working properly and safely and to allow lubricating oils to properly dispense through machine.
- Page 6 Self-Contained Dust Collection Systems Easily attach to Dynorbital ® Supreme Random Orbital Sander – Self-Generated Vac-Ready Models. 50694 Mini-Reusable Cloth Bag 54284 Mini-Flex-Hose System • Mounts directly to any Vac-Ready • 95580 Air Line 1" dia. x 28" long. tool or to any exhaust hose. •...
- Page 7 Random Orbital Sanding Pads Perfectly balanced and weight-mated to Dynorbital ® Supreme Random Orbital Sander. Premium Urethane Pad - Vinyl Face for PSA-Type Discs 3-1/2" 5" 6" Description Dual Purpose Non-Vac Non-Vac 3/8" Thick, Soft Density — 56102 56100 56103 56101 3/8"...
- Page 8 Visit our Web Site: www.dynabrade.com Email: Customer.Service@Dynabrade.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 1 • Fax: 352 76 84 95 1 ©...
