Models:
57810 - Non-Vacuum
57811 - Vac-Ready
57812 - Basic Vacuum
57813 - Deluxe Vacuum
57814 - Central Vac-Ready
WARNING
!
95626 Snap Ring
57054 Rear Ring
01206 Bearing
57056 Rear Bearing Plate
95971 Line-up Pin
57058 Cylinder Assembly
(Includes 95971 Line-up Pin)
57113 Blade (5) and
O
Rotor set
57057 Front Bearing Plate
57088 Bearing
57055 Front Ring
95973 Washer
57059 Lock Ring Seal
T
7
56047 Rotor Key
57839 Motor Shaft Balancer
56052 Balancer Bearing
L
2
56053 Bearing Seal
95628 Bearing Shield
57069 Balancer Shaft
95630 Snap Ring

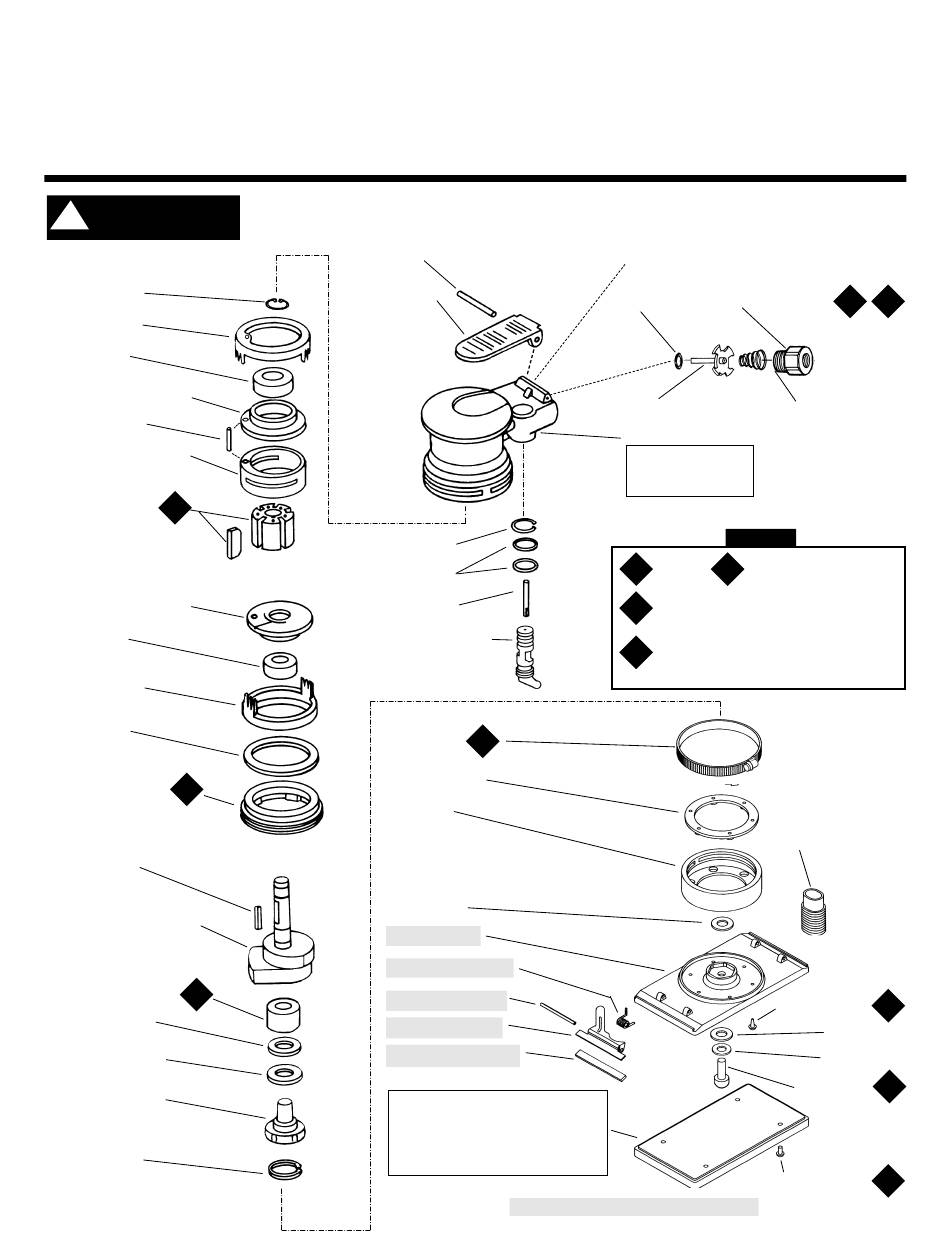

Dynabug Orbital Sander
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
95979 Pin
57820 Lever
95697 Snap Ring
01025 O-Ring (2)
01477 Valve Stem
57064 Speed Regulator
96116 Clamp
57823 Pad Mount
57822 Boot
57837 Washer
57825 Pad Top
57840 Clip Spring (2)
96115 Clip Post (2)
57826 Clip Top (2)
57834 Rubber Grip (2)
Pad Bases
57850 Non-Vac, Vinyl Face
57851 Non-Vac, "Hook" Face
57852 Non-Vac, Long "Nap Hook" Face
57855 Vac, Vinyl Face
57856 Vac, "Hook" Face
Note: To order replacement parts specify the model and serial number of your machine.
For Serial Number 7F1045 and higher
Air-Powered "Jitterbug -Type " Sander, 8,000 RPM
T
4
Shaded parts represent 57841 Assembly.
Parts Page Reorder No. PD97•53
Effective September, 1997
Supercedes PD97•15
See page 2 for Machine Exhaust Assemblies
01464 Seal
01494 Inlet Bushing
01472 Tip Valve
01468 Spring
Housing
57882 — Non-Vacuum
57883 — Vacuum
57886 — Central-Vac
KEY
Oil
Grease
O
G
Loctite/Hernon: L
= Loctite #271
L
2
Torque: N•m x 8.85 = In. - lbs.
T
T
= 1.6 N•m, T
= 2.0 N•m, T
2
3
T
= 11.3 N•m, T
= 23 N•m, T
5
6
57832 Vacuum Tube
(Vacuum Models Only)
96114 Screw (6)
96168 Screw
96258 Screw (4)
T
L
6
2
= 0.7 N•m,
4
= 28 N•m
7
T
2
57838 Washer
95183 Washer
T
5
T
3
Advertisement
Table of Contents
Related Manuals for Dynabrade 57811
Summary of Contents for Dynabrade 57811
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools WARNING (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
- Page 2 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example : if the tool specification state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute).
- Page 3 6. Place the 57090 Rotor and 56047 Rotor Key on the motor shaft balancer. Place the 56073 Vanes into the rotor slots Note: Vanes should be lightly lubricated with Dynabrade Air Lube P/N 95842 (or equivalent)before installation into the rotor slots.
- Page 4 Visit our new Web Site via Industry.Net MROP On-Line: http://www.dynabrade.industry.net E-Mail: DynaTalk@aol.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 • Fax: 352 76 84 95 ©...
