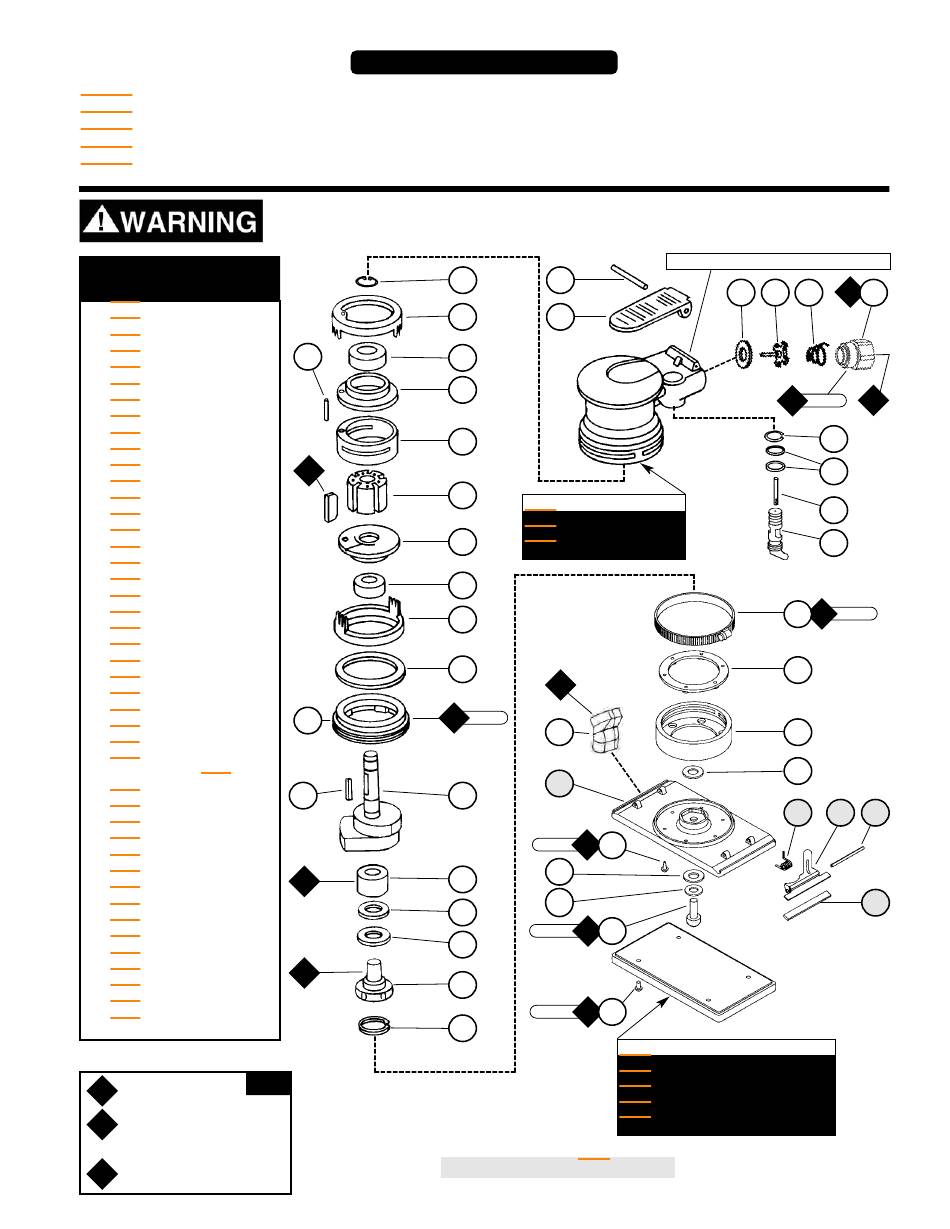

Dynabrade Dynabug 57810 Quick Start Manual

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Models:
57810 – Non-Vacuum
57811 – Vac-Ready
57812 – Basic Vacuum
57813 – Deluxe Vacuum
57814 – Central Vac-Ready
Index Key
No. Part # Description
1 96258 Screw (4)
2 96168 Screw
3 57834 Rubber Grip (2)
4 95183 Washer
5 57838 Washer
6 96114 Screw (6)
7 96115 Clip Post (2)
8 57826 Clip Top (2)
9 57840 Clip Spring (2)
10 57825 Pad Top
11 57837 Washer
12 57842 Vacuum Tube
13 57822 Boot
14 57823 Pad Mount
15 96116 Clamp
16 95630 Snap Ring
17 57069 Balancer Shaft
18 95628 Bearing Shield
19 56053 Bearing Seal
20 56052 Balancer Bearing
21 57839 Motor Balancer Shaft
22 56047 Rotor Key
23 57059 Lock Ring Seal
24 95973 Washer
25 57055 Front Ring
26 57088 Bearing
27 57057 Front Bearing Plate
28 57113 Blade (5/pkg.), Rotor Set
29 57058 Cylinder Assembly
(Includes 95971 Pin)
30 95971 Line-Up Pin
31 57056 Rear Bearing Plate
32 01206 Bearing
33 57054 Rear Ring
34 95626 Snap Ring
35 95979 Pin
36 57820 Lever
37 01464 Seal
38 01472 Tip Valve
39 01468 Conical Spring
40 01494 Inlet Bushing
41 95697 Snap Ring
42 01025 O-Ring (2)
43 01477 Valve Stem
44 57064 Speed Regulator
KEY
Oil: O = Air Lube
O
1
Adhesive: A = Loctite #271
A
2
A = Loctite #380
6
A = Loctite #567
8
T Torque: N•m x 8.85 = In. - lbs.
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
For Serial No. 8I3996 and Higher
Dynabug
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
30
O
1
T
23
22
A
2
A
2
Shaded parts represent
Note: To order replacement parts specify the model and serial number of your machine.
Orbital Sander
®
Standard Grip, 10,000 RPM, 3/32" Dia. Orbit
34 35
33 36
32
31
29
28
Housing
57882 — Non-Vacuum
57883 — Self-Generated Vac
27
57886 — Central-Vac
26
25
24
A
6
28 N•m
12
10
21
1.6 N•m T 6
5
20
4
19
2
T
11.3 N•m
18
17
1
T
2.0 N•m
16
Pad Bases
57850
57851
57852
57855
57856
57841 Assembly.
Parts Page Reorder No. PD00•38
Effective May, 2000
Supersedes PD97•53
Air-Powered "Jitterbug -Type" Sander
See page 2 for Machine Exhaust Assemblies.
37 38 39
T
23 N•m
15
T
14
13
11
9
Non-Vac, Vinyl Face
Non-Vac, "Hook" Face
Non-Vac, Long "Nap Hook" Face
Vac, Vinyl Face
Vac, "Hook" Face
A
40
8
O
1
41
42
43
44
0.7 N•m
8 7
3
