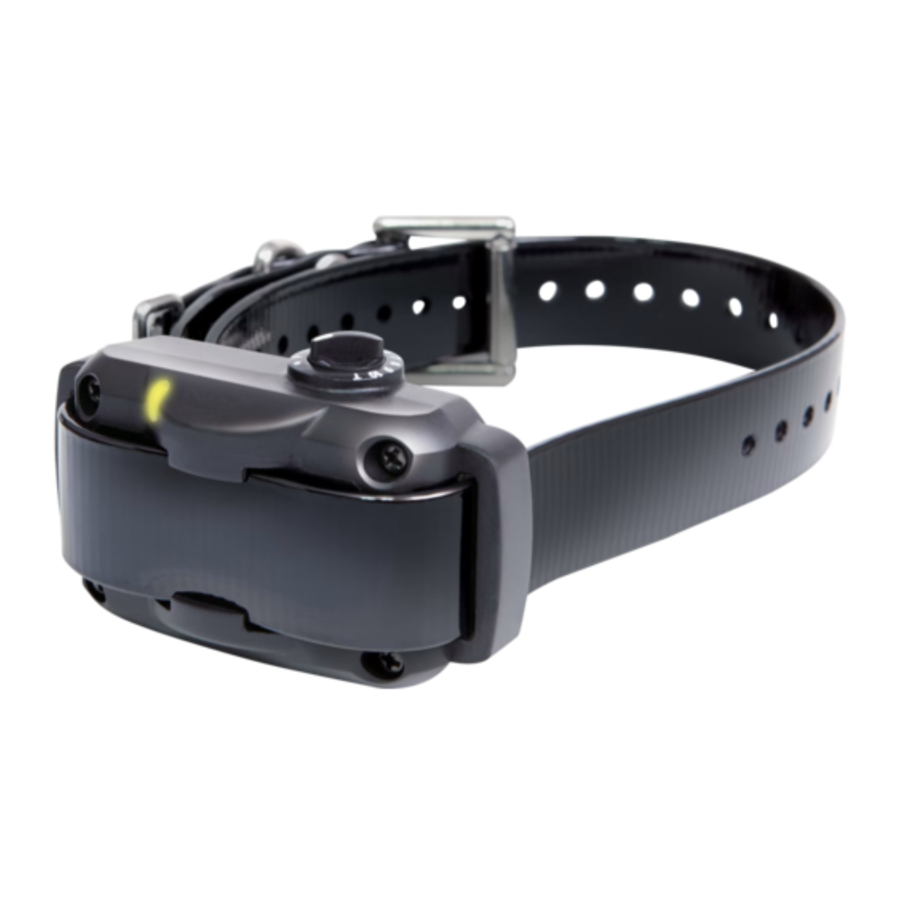

Dogtra YS600 Manual

AT A GLANCE

MAIN FEATURES

Contoured Design Receiver/Collar 2-Hour Rapid Charge Batteries
Persistent Bark Indicator Intensity Levels 1-10
Non-Stimulating High Performance Pager Accelerometer Bark Sensor
Enhanced Contact Points Low to High Power Stimulation
Fully Waterproof

OVERVIEW

OVERVIEW

HOW TO USE THE ON/OFF & INTENSITY DIAL

  • The On/Off Intensity Dial is used to turn the No Bark Collar on/off and to select the stimulation intensity level.
  • Set the dial to "•" to turn off the No Bark Collar.
  • Set the dial to "P" for non-stimulating vibration only mode.
  • The No Bark Collar has stimulation levels 1 (lowest) through 10 (highest). Each stimulation level begins with a vibration and is followed by the stimulation.
  • Set the dial to "T" to test the No Bark Collar. See Testing the YS600 to check if your unit is working properly.
On/Off & Intensity Dial Function
Power Off
P Non-Stimulating Vibration
1~10 Stimulation Level
T Test mode

NOTICE
When first using the YS600 No Bark Collar, it is recommended to start at the lowest stimulation intensity level. If your dog continues to bark, gradually increase the stimulation intensity level. Closely monitor you dog's reaction to find the right stimulation level for you dog.

THE LED INDICATOR

The LED indicator will flash for 1 second when the YS600 has been turned on, and every 4 seconds afterwards. If your dog does not bark for over 30 seconds, the LED indicator will turn off and the YS600 will go into a sleep mode to conserve battery life. It will reactivate when your dog barks and a vibration/correction needs to be made. Before going into Sleep mode, the LED light flashes green when the battery is fully charged and turns to amber when the battery life is getting low. When the LED indicator emits a blinking red light, the battery needs to be recharged.

LED window \ Battery life Fully charged Medium charge Needs charge
On Working Green Yellow Red
On Charging Green Red Red

OPERATING MODES

  1. Non-Stimulating High Performance Pager (P)
    • The YS600 will vibrate twice when your dog barks.
      It will not send a stimulation when set to "P".
  2. Stimulation Intensity Levels (1-10)
    • The YS600 will vibrate once followed by stimulation when your dog barks.
      * There is a 4 second delay between stimulation on levels 1-10 and vibration on P mode.

THE PERSISTENT BARK INDICATOR

The Persistent Bark Indicator activates when the unit is turned off and when there has been excessive barking.

  1. Without excessive barking:
    • The LED will glow red for 2 seconds when the unit is turned off.
  2. With excessive barking:
    • The LED will blink green for 10 seconds when the unit is turned off.
    • Excessive barking may indicate that the stimulation intensity level is set too low.
      * Before increasing the stimulation intensity level, check to see that the collar has a proper fit and both contact points are touching your dog's neck.

TESTING THE YS600

TESTING

  1. Turn the dial to "T". The LED indicator will blink once every 4 seconds.
  2. Use the cap end of a ballpoint pen and scratch between the contact points. The unit is working properly when it vibrates twice.
    * The sensor is set to high sensitivity on test mode to activate more easily. The test mode will only produce a non-stimulating vibration.

CHARGING THE BATTERY

CHARGING THE BATTERY

  1. Open the rubber plug on the YS600 and connect the charger to the battery charging receptacle as shown in the picture.
  2. Plug the charger into an electrical power outlet (120V).
  3. While the battery is recharging, the LED will stay on red. The LED light will become green when the battery is completely recharged (the battery is fully charged after 2 hours).
    Note: Only use Dogtra approved Lithium Polymer Battery chargers designed for the YS600. Non-Dogtra chargers could potentially damage the unit.

Charger Info
Manufacturer: E-SUN
Manufacturing country: CHINA
Model name: MKC-0501000S
INPUT: 100-240V~50/60Hz 0.4A OUTPUT: 5V 1000mA


During battery charging, the unit must be close to the wall outlet and the wall outlet must be easily accessible for security reasons.

COLLAR FITTING

The collar should be fitted so that the contact points press firmly against the dog's skin. When properly fitted, you should be able to fit a finger or two snugly in between the contact points and your dog's skin. When properly fitted, the receiver should not move on the dog. The best location for the receiver is either side of the dog's windpipe. A loose fit can allow the receiver to move around on the dog's neck and cause irritation. If the collar is too tight, the dog may have difficulty breathing. Leaving the receiver in the same location on the dog's neck for an extended period of time can cause skin irritation. If the dog is to wear the collr for long periods, occasionally reposition it every few hours so that the contact points are moved to a different location on the dog's neck and remove it after 8 hours of usage. Check for skin irritation each time you use the unit.
COLLAR FITTING


Remove all other collars when using the No Bark Collar. Additional collars or buckles that rub against the No Bark Collar may inadvertently activate the unit.

TROUBLESHOOTING GUIDE

My dog is not reacting to the collar

  • Make sure the receiver/collar is turned on.
  • Be sure the strap is on the dog tight enough so that both contact points are touching the dog's skin.
  • The contact points may be too short for your dog's thick or long coat. To place an order for longer contact points, please contact Dogtra or a Dogtra dealer. If you are already using longer contact points, you may need to trim the hair on the dog's neck, so that both contact points are touching the dog's skin.
  • The intensity level may be too low for your dog. Increase the stimulation until your dog responds.

My YS600 is not holding a charge

  • The charging pin may be damaged. A metal pin inside the charging port should stand straight up and firm in the center. If the pin is wobbly, broken or missing, you will need to send the unit in to the repairs department.
  • The charging port must be clean prior to charging, clean out any dirt with a cotton swab and some rubbing alcohol. If your dog was in salt-water, be sure to rinse the receiver and charging port with clean water.
  • For Dogtra units over two years old from the purchase date, the batteries may need to be replaced. You can replace them yourself by contacting Dogtra for a replacement battery. Damages incurred to the unit due to improper battery installations are not covered under the warranty. Dogtra strongly recommends sending the unit in for inspection.

My dog has skin irritation

  • This may be due to an improper fit. If your dog exhibits signs of skin irritation, consult with a veterinarian. Once the dog's skin returns to a normal condition, continue to use the collar and check your dog's neck each time you use the unit.

PRODUCT SAFETY AND HEALTH STATEMENT

  1. The YS600 is intended to prevent the barking of dogs only. It is NOT intended for use on humans or use on other animals other than dogs Dogtra does not assume any liability for the improper use of the YS600.
  2. Leaving the YS600 in the same position on a dog's neck for extended periods of time can cause skin irritation. To prevent this, occasionally reposition the unit so the contact points are moved to a different location on the dog's neck. ALWAYS check your dog's neck for signs of skin irritation when using the YS600.
  3. A proper fit is necessary for the YS600 to work optimally. Both contact points must be in contact with your dog's skin at all times for a consistent stimulation. A loose fitting collar can cause the contact points to rub against the skin and cause irritation.
  4. The YS600 is not intended for use on dogs weighing less than 15 kg or less than 6 months of age.
  5. Remove the YS600 before playing with your dog, as this may cause the dog to bark, which could lead him/ her to associate playing with the stimulation.
  6. Closely monitor your dog's activity and stimulation output while using the YS600. Switch the YS600 on AFTER fitting it on the dog's neck and switch it off BEFORE removing it, so as to avoid any accidental activation during the process.
