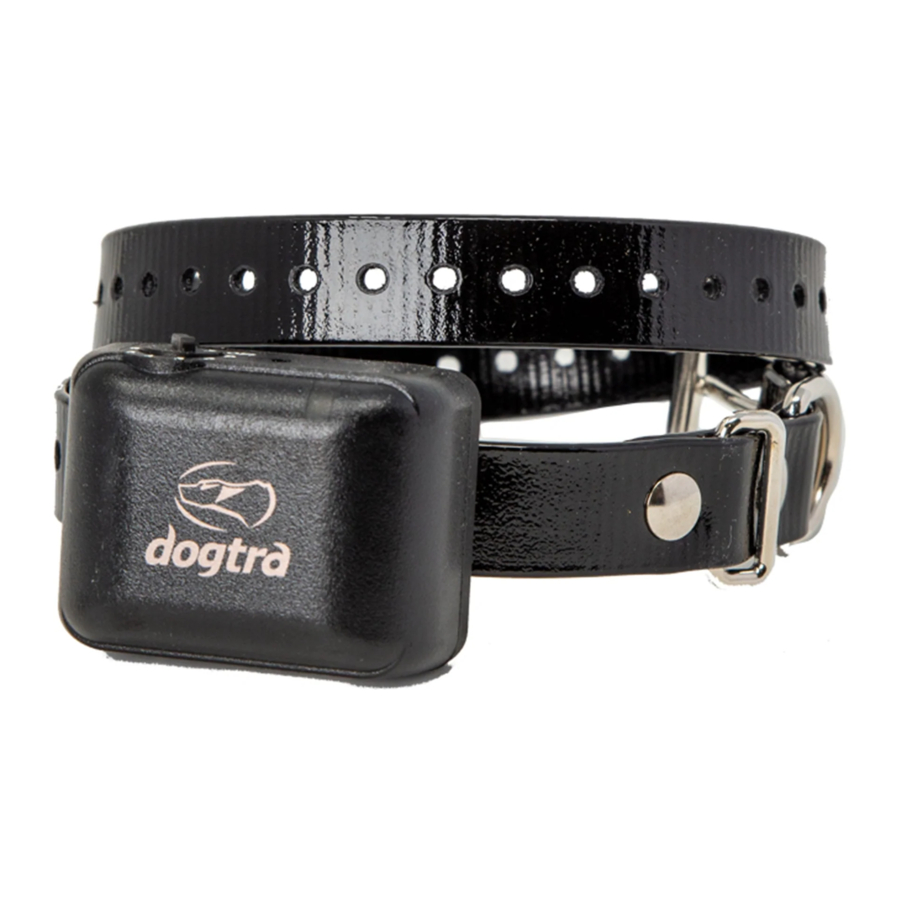

Dogtra YS300 Manual

AT A GLANCE

MAIN FEATURES

• Pager vibration (P) warning prior to the stimulation
• 6 intensity levels (2-7) for a wide variety of dispositions
• Test mode (T) for testing the YS300
• Fully waterproof receiver
• Medium output receiver
• Sound Recognition Sensor
• For dogs as small as 10 lbs
• 2-hour rapid charge lithium polymer battery

OVERVIEW

USING THE ON/OFF & STIMULATION DIAL

• The On/Off & Stimulation Dial is used to turn the YS300 on/off and to select the stimulation level.
• Set the dial to "OFF" to turn off the YS300.
• Set the dial to "P" for the Pager vibration only mode.
• The YS300 has stimulation levels 2 (lowest) through 7 (highest). Each stimulation level begins with a vibration and is followed by the stimulation.
• Set the dial to "T' to test the YS300. See TESTING THE YS300 to check if your unit is working properly.

Note: When first using the YS300, it is recommended to start at the lowest stimulation level. If your dog continues to bark, gradually increase the stimulation level. Closely monitor your dog's reaction to find the right stimulation level for you dog.

LED INDICATOR

The LED indicator light will flash for 1 second when the YS300 has been turned on and then flash every 2 seconds. If the dog does not bark for over 10 seconds, it will turn to sleep mode to conserve battery life and the LED will turn off.
Before going into sleep mode, the LED light flashes green when the battery is fully charged and turns to amber when the battery life is getting low. When the LED indicator emits a blinking red light, the battery needs to be recharged.

TESTING THE YS300

1. Turn the dial on the YS300 to "T" to set the system to test mode.
2. Test the unit by scratching the TEST area on the receiver (as shown in the diagram) with a coin or pen. The receiver will emit a vibration three times. Repeat the same process to test again.
3. The YS300 has a preset delay of 15 seconds in between corrections. Once the unit activates, it will not activate again until 15 seconds has gone by. The reason for the delay is so that your dog figures out the implications of the corrections from barking before being corrected again.

• When on the test mode, the YS300 emits a vibration without emitting stimulation at the same time.
• When on the test mode, the sensor is more sensitive and can be easily activated by a small sound or tap.

CHARGING THE BATTERY

1. Charge the unit before using the unit for the first time.
2. Do not charge the batteries near any flammable substances.
3. Fully charge the batteries if the unit is to be stored without use for a period of 3 months or more.

Recharge the Unit If:

• The LED indicator light on the receiver is emitting a red color.
• The indicator light on the receiver will not come on.

Battery Charging Procedure

The YS300 uses lithium-polymer batteries. The battery charger is designed for a 120 volt wall outlet.
Note 1: Only use Dogtra-approved lithium polymer batteries and chargers for your Dogtra unit. This will prevent any damage that can be incurred from attempting to use a different charger.
Note 2: The unit has a partial charge when it leaves the Dogtra facility. Upon receipt of the collar, be sure to give it a full 2-hour initial charge before the first use. When a charger is not in use, disconnect it from the power source.

1. Attach the charging cable to the receiver, as shown.
2. Plug the charger into a 120 volt wall outlet or, if using the auto charger, plug into a cigarette lighter only for lithium polymer batteries (use a 230 volt European charger for Europe). All indicator lights should glow red when properly plugged in and the unit will automatically shut off during the charging process. You will need to turn the unit on again before use once the unit is fully charged and unplugged from the battery cable.
3. The lithium polymer battery is fully charged within 2 hours. The lights will stay red during the charging process. The red light will turn green once the unit is fully charged.
4. After charging, cover the battery charging receptacle with the rubber plug on the receiver.

RECEIVER FITTING

Proper Fit
The receiver should be fitted so that the surgical stainless steel contact points press firmly against the dog's skin. You should be able to fit a finger in between the contact point and your dog's skin. The best location is on either side of the dog's windpipe.

Improper Fit
A loose fit can allow the collar to move around on the dog's neck. When this happens, the contact points may rub against the skin and cause irritation. If the receiver is too loose, the contact will not be consistent and cause the corrections to be inconsistent. Dogtra uses surgical stainless steel contact points and anti-microbial plastic to protect the dog's skin.

Attention!
Leaving the receiver in the same location on the dog's neck for an extended period of time can cause skin irritation. If the dog is to wear the receiver for long periods, occasionally reposition the receiver so that the contact points are moved to a different location on the dog's neck. Make sure you check for skin irritation each time you use the unit. Remove all other collars when using the YS300 since additional collars or buckles may inadvertently activate the unit.

MAINTENANCE

Basic Maintenance
Be sure the rubber charging cap is securely in place when the collar is in use. After each training session, carefully inspect the unit for any missing parts or damage to the casing. Damaged or broken casing may affect the waterproof guarantee on the unit. After confirming that there is no damage to the casing, rinse the receiver and clean out any dirt or debris.

Storage Maintenance
The YS300 should be fully charged before storing for extended periods. While in storage, the unit should be given a full charge once a month and before the first use. Store the units in room temperature. Do not keep the units exposed to extreme climates.

Troubleshooting
If the unit is malfunctioning, please refer to the "Troubleshooting Guide" before sending it to Dogtra for service. If you have any questions or concerns, you may email them to info@dogtra.com, or call customer service at (888) 811-9111.

TROUBLESHOOTING GUIDE

My dog is not reacting to the receiver

• Make sure the receiver is turned on.

• Be sure the strap is on the dog tight enough so that both contact points are touching the dog's skin.
• The contact points may be too short for the dog. To place an order for longer contact points that are more appropriate for your dog, please call (888) 811-9111. If you are already using the longest contact points available, you might need to trim down the hair on the dog's neck so both contact points are touching the dog's skin.
• The intensity level may be too low for your dog. Keep increasing the stimulation until the dog responds, usually with neck movement, head shaking, looking over its shoulder, etc. (response may be very subtle).

My YS300 is not holding a charge

• The batteries might not be charged properly, or the charger, splitter, and the charging port may not be functioning properly. You can send in your charging units to have us inspect them.
• The charging pin may be damaged. Inside the charging port, there is a metal pin that should be standing straight up and stiff. If the pin is wobbling, broken, or missing, you will need to send the unit in to the Repair Department. The charging port must be clean prior to charging; clean the dirt out with a cotton swab and some rubbing alcohol. If the dog is in salt-water, be sure to rinse the receiver and charging port with clean water.
• If the above does not resolve your issues, contact Dogtra customer service at info@dogtra.com or (888) 811-9111.

My dog has skin irritation

• Leaving the receiver in the same location on the dog's neck for an extended period of time can cause skin irritation. If the dog is to wear the receiver for long periods, occasionally reposition the receiver so that the contact points are moved to a different location on the dog's neck. Make sure you check for skin irritation each time you use the unit.

To register your product, visit www.dogtra.com/product-registration.
Dogtra Customer Service
22912 Lockness Avenue, Torrance, CA 90501
(888) 811-9111 repair@dogtra.com
Mon – Fri, 8:00 AM to 4:30 PM (PST)
