lefant M320 Manual

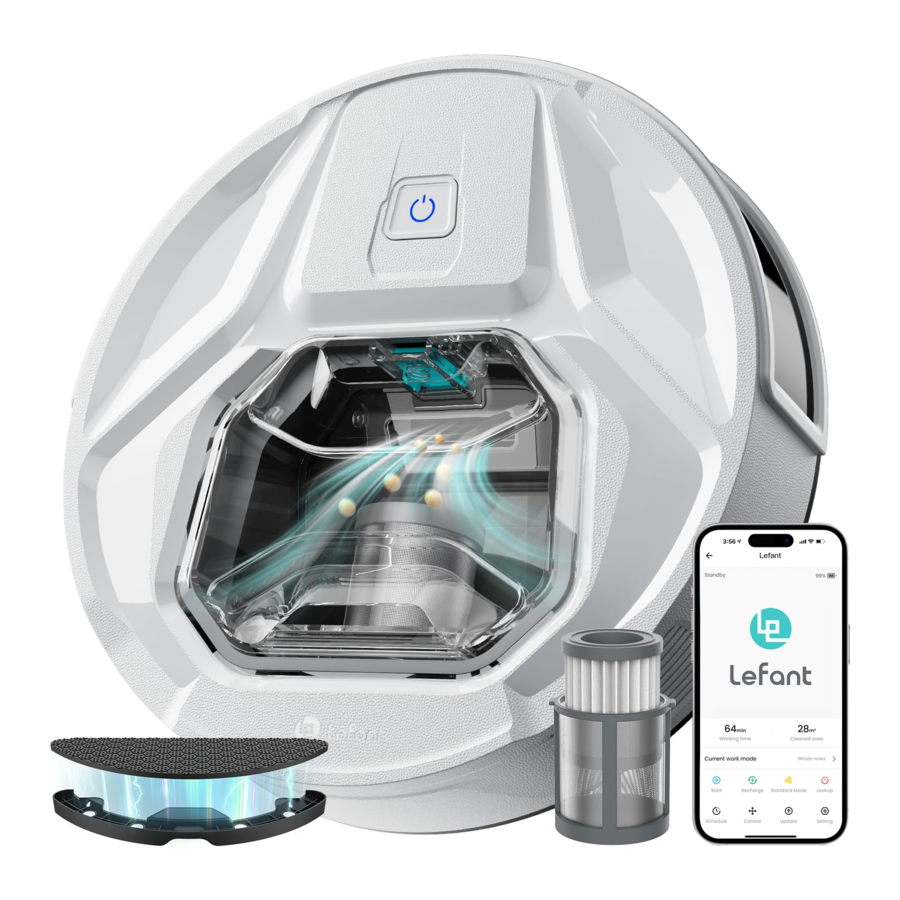

Product introduction

Packing list

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

How to use buttons

- How to use buttons
Hold for 3 seconds: Turn on
Fast press: Start/Pause (planned cleaning)
Fast press twice: Auto-recharge
Hold for 6 seconds: Enter network pairing mode
(Networking operation: Press and hold for 6 seconds and release when you hear two beeps, the light will blink and the robot will enter the networking mode, please open the App for networking and pairing).
Hold for 12 seconds: Turn off (a long "beep" indicates power off)
(a long "beep" indicates power off)

Part Name

Preparation

Assemble and charge

1. Remove the protective film on the robot and docking station

2. Install the side brushes

3. Placement of the docking station / connection of power supply
   Place the docking station against the wall on a flat surface. Ensure there are no items within 0.5m to the left or right and 1.5m in front to avoid blocking the charging signal.
   Avoid having reflective objects, such as floor mirrors, near the docking station to prevent signal reflection.

4. Charging
   Place the robot with its button side facing the docking station. When the button light starts to blink, it indicates correct placement. (As shown below)
   A purple blinking light indicates the battery is below 50%.
   A blue blinking light indicates the battery is above 50%.
   No light means the battery is fully charged.
   Charging time is approximately 4 hours.


The robot will turn on automatically if charging while powered off.

Using environment preparation

Tidy up the room

Please clear any scattered wires and debris from the floor before starting. If your carpet has tassels, tuck them under. Remove any items that are fragile, valuable, or potentially dangerous to avoid entanglement, jamming, dragging, or knocking over by the robot.

Do not use the robot in areas without protective barriers (like duplex floors, open balconies, tops of furniture). Ensure balcony doors are closed, or use a sturdy physical barrier to prevent accidental falls that could cause injury or property damage.

Do not let the robot operate on wet floors.

The robot can climb to the top of objects with a height of less than 12mm. If you don't want the robot to climb on them, please take them away.

Using the product

App download and configuration

Downloading and installation of the "Lefant" app
Method I: Scan the following QR code, and then download and install App as prompted.

Method II: Search "Lefant" in the App store, download and install the Lefant app.

Note: The robot works with 2.4GHz Wi-Fi networks only.

Tips:
*Follow the guidance in the Lefant app to register, login, and pair the robot.
*Please make sure that the mobile phone is connected to your Wi-Fi network before pairing the robot vacuum cleaner.

Maintenance

Dust bin

* When cleaning and maintaining the robot and its accessories, please unplug the charging stand.

The HEPA filter should not touch the water.

1. Take out the dust bin

2. Open the dust bin latch and dump the garbage

3. Rotate the filter cartridge to the left to remove

4. Remove the HEPA-filter

5. Clean the Pre-filter and the HEPA-filter


Others

* When cleaning and maintaining the robot and its accessories, please unplug the charging stand.

6. Clean the Anti-collision sensors to ensure sensitive obstacle avoidance.

7. Clean the side brush to prevent hair from tangling.

8. 1. Clean the charging pins on the charging base to ensure smooth charging.
   2. Clean the infrared sensor lens on the charging base to prevent signal interference.

Symptoms prompts

When the robot runs into trouble, its red indicator light will be on or flash and beep with different durations and separations. The following table summarizes the corresponding causes:

If the above methods don't resolve the problem, try the following: Hold the start/pause button on the robot for 12 seconds. After hearing a long "beep", turn off, then long press for 3 seconds to restart.

Troubleshooting

If the following problems occur in the application process of the product, users can resolve them independently by comparison and inquiry.
* If the fault cannot be eliminated according to the operation in the table, contact our customer service representative.

Technical parameters

Product model	M320
Rated input of machine	19V 1A, 19W
Docking Station Model	C3
Rated Output Voltage	19V	Rated Output Current	1A
Power Adapter Model	AD-0191900100US
Power Adapter Input	100-240V~ 50-60Hz 0.8A
Power Adapter Output	DC 19V, 1A, CLASS II
Off/Standby Mode Power	Less than 0.5W
Networked Standby Power	Less than 2.00W

Note: Since the product needs continuous improvement, the actual product shall prevail.
Our company reserves the right to update the product.

IMPORTANT SAFETY INSTRUCTIONS

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury.
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
For Household use only

When using an electrical appliance, basic precautions should always be followed, including the following:

1. The robot must be used in accordance with the directions in this User Manual. Our company cannot be held liable or responsible for any damages or injuries caused by improper use.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children.x Do not allow children to sit on the vacuum.
3. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Robot. Tuck rug fringe under the rug base, and lift items such as curtains and table cloths off the floor.
4. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Robot to ensure that it can detect the step necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
5. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
6. Please make sure your power supply voltage matches the power voltage marked on the Docking Station.
7. Do not handle or plug appliance with wet hands.
8. Non-rechargeable batteries are prohibited.
9. Do not use without dust bin and/or filters in place
10. Do not operate the robot in an area where there are lit candles or fragile objects on the floor to be cleaned.
11. Do not use and store in extremely hot or cold environments (below -5°C/23°F or above 40°C/104°F). Please charge the robot in temperature above 0°C/32°F and below 40°C/104°F. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
12. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
13. Do not operate the robot in a room where an infant or child is sleeping.
14. For INDOOR use ONLY. Do not use the robot in outdoor, commercial or industrial environments. Do not use Appliance on wet surfaces or surfaces with standing water.
15. Do not allow the robot to pick up large objects like stones, large pieces of paper or any item that may clog the robot.
16. Do not use the robot to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
17. Do not use the robot to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
18. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
19. Take care not to damage the power cord. Do not pull on or carry the robot or the Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run the robot over the power cord. Keep power cord away from hot surfaces. Do not unplug by pulling on cord, To unplug, grasp the plug, not the cord.
20. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
21. Do not use the Docking Station if it is damaged.
22. Do not use the robot or the Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
23. Turn OFF the power switch before cleaning or maintaining the robot. Turn off all controls
24. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.
25. Remove the robot from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the robot.
26. The battery must be removed and discarded according to local laws and regulations before disposal of the robot.
27. Please dispose of used batteries according to local laws and regulations.
28. Do not incinerate the robot even if it is severely damaged. The batteries can explode in a fire.
29. When not using the Docking Station for a long period of time, please unplug it.
30. Prevent unintentional starting. Ensure the switch is in the off position before connecting to battery pack, picking up or carrying the appliance. Carrying the robot with your finger on the switch or energizing the robot that have the switch on invites accidents.
31.
    When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, ect, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
32.
    Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
33. Do not use a battery pack that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
34. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C/265°F may cause explosion.
35. Have servicing performed by a qualified repair person using only identical replacement parts.
36. Do not modify or attempt to repair the robot or the battery pack (as applicable) except as indicated in the instructions.
37. Do not operate the robot in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.
38. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
39. Use the robot only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
40. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.
41. If the robot is not going to be used for a long time, fully charge the robot, power it OFF, and unplug the Docking Station.
42. Please remove any fragile and miscellaneous items from the floor (such as vases, plastic bags, etc.) to prevent the robot from being obstructed or causing damage to valuable items in the home due to minor collisions.

SAVE THESE INSTRUCTIONS

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

	Short-circuit-proof safety isolating transformer
	Switch mode power supply
	For indoor use only
	Direct current
	Alternating current
	detachable supply unit

Should you encounter situations that have not been properly addressed in this User Manual, please contact our Customer Service Center, we will solve your specific problem. For more information, please visit the Lefant ROBOTICS official website www.lefant.com or send email to the following email address:
NA: support.us@lefant.com
EU: support.eu@lefant.com
JP: support.jp@lefant.com

Official website

Website: www.lefant.com

Email:
NA: support.us@lefant.com
EU: support.eu@lefant.com
JP: support.jp@lefant.com

Facebook: @LEFANTOFFICIAL
Community: facebook.com/groups/Lefantofficialcommunity

Shenzhen lohas Technology Co., LTD.
Building 2, Fashion Brand Industrial Park, E'Bu Town,
Shenzhen-Shanwei Special Cooperation Zone, Shenzhen, Guangdong, China.
