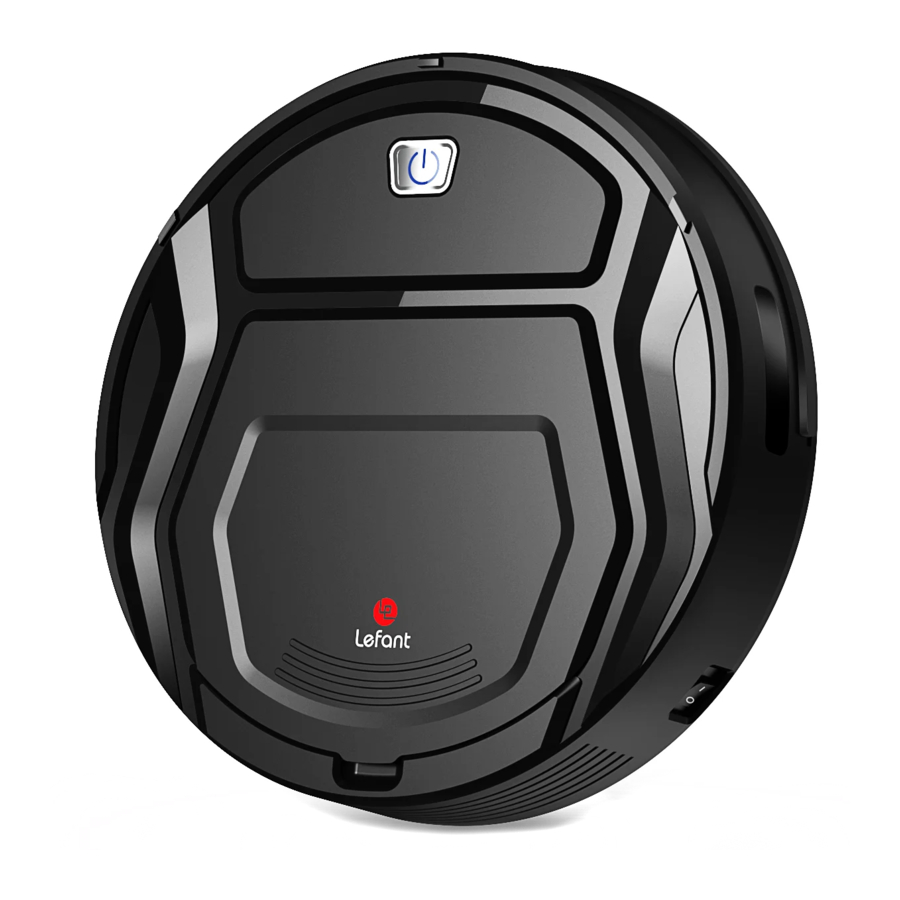

Lefant Robot Vacuum M201 Manual

Please read these instructions carefully before using the product and keep it in a safe place

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where atechnician can address your specific problem or question. For more information, please visit the Lefant ROBOTICS official website: www.lefantlife.com or send email to support@lefantlife.com

The Company reserves the right to make technological and design changes to this product for continuous improvement.

Important Safety Instructions

When using the product, please keep your vigilance and follow below information:

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuckrug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. Please make sure your power supply voltage matches the power voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
7. Non-rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in place.
9. Do not operate the Appliance in an area where there are li t candles or fragile objects.
10. Do not use in extremely hot or cold environments (below-5℃/23℉ or above 40℃/104℉).
11. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing water.
14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging Dock by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.
19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
21. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Charging Dock if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22. Turn OFF the Power Switch before cleaning or maintaining the Appliance. EN
23. The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock.
24. Remove the Appliance from the Charging Dock, and turn OFF the Power Switch to the Appliance before removing the battery for disposal of the Appliance.
25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and regulations.
27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
28. When not using the Charging Dock for a long period of time, please unplug it.
29. The Appliance must be used in accordance with the directions in this Instruction Manual. LEFANT ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
30. The robot contains batteries that are only replaceable by skilled persons. To replace or remove the battery, please contact Customer Service.
31. If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Charging Dock.

Product Composition

Robot

Charging Dock

Dust Bin

Operating and Programming

Notes Before Cleaning

Please refer to the following guidelines to check the cleaning area before using the robot.

Remove power cords and small objects from the floor that could entangle the products.

The product is not suitable for use on long-pile carpet. Before using the product near an area rug or on a short-pile area rug with tasseled edges, please fold area rug edges under themselves.

Please be aware that the robot needs at least an 8 cm (3" ) clearance to clean under furniture without complications.

If there is a step or stairs in the cleaning area, please operate robot to ensure its Anti-Drop Sensors can detect the drop off. It may be necessary to place a physical barrier at the edge of the drop off to keep the unit from falling over the edge.

Quick Start

Charging Dock Placement

1. Connect the adapter to the charging Dock
   Place the Charging Dock on a level floor surface against the wall with the base perpendicular to the ground. Keep the immediate area 2m (6.6' ) in front of the charger and 1 m (3.3' ) on both sides of the charger clear of objects and reflective surfaces. Plug the Charging Dock in, the Power Indicator Light on the Charging Dock glows.
   Place the Charging Dock


   Connect the power supply

2. Install Side Brush
   Attach Side Brush to the bottom of robot by pressing a brush into each slot until it clicks.


Start to Charge

1. Turn on the Robot
   Turn the robot's Side Power Switch to the ON position. "-" indicates power ON and "O" indicates power OFF. Robot is powered ON when button glows a continuous BLUE.

2. Charge Robot
   Place robot on the Charging Dock making sure the Charging Contacts on robot and the Charging Dock Pins make a connection.
   button in breathing status when robot is charging,
   button stops glowing after robot is fully charged.
   Usually take 3.5 hours from low battery mode to fully charged.


Start Cleaning

Press the button on the robot to start the automatic cleaning mode.

Pause Cleaning

Press the button to Pause the Cleaning.

Return to Charging dock

When battery power gets low, Robot automatically switches to Return to Charger Mode and returns to the Charging Dock to recharge itself. Alternatively, double click on the Start/Pause button on the robot to start the Return to Charger Mode.

APP download and network configuration

Scan the QR code to download and install

the app This app is compatible with IOS9.0 and Android 4.0 or above.
ios system: Please search "Lefant life" in the app store.
Android system: Please scan the QR code or search "Lefant Life" on google play to download.

Connect to your Indoor 2.4G WIFI network

Make sure the mobile device is connected to the indoor 2.4G WIFI network, and the signal quality is good enough, register and log in to the mobile app.

EZ MODE

1. Network paring EZ mode (Only 2.4G Wi-Fi can be supported)
   1. Turn on the side switch.
   2. Press and hold the key for about 3 seconds until you hear a beep and release.


      The robot enters the network configuration EZ mode, and the start / pause flash quickly in blue.

2. Open the app and select add device, the interface as follows:



   If you experience with network pairing failure, please restart the robot and start over again. Or try the AP mode network pairing method instead.

AP MODE

1. Network paring AP mode (Only 2.4G Wi-Fi can be supported)
   1. Turn on the side switch.
   2. Press and hold the key for about 6 seconds until you hear two beeps and release.


      The robot enters the nerwork configuration AP mode, and the start / pause flash slowly in blue.

2. Add Manually - Wi-Fi-AP Mode






3. Connect your phone to a Wi-Fi that starts with then name "SmartLife".



4. After successfully connecting to the Wi-Fi, return the the APP and start the network configuration.




Maintenance

Dust Bin and Filters

Open the Top Cover to take out the Dust Bin, open the Dust Bin Cover and empty the Dust Bin.

1. Remove the Dust Bin, open the Dust Bin Cover, and empty the Dust Bin.





2. Remove the High Efficiency Filter. Pat the High Efficiency Filter clean. Do not rinse the High Efficiency Filter under water.


3. Flush the Dust Bin and the Filter Net.

4. Dry the High Efficiency Filter, Dust Bin and Filter Net completely before reinstalling.


Suction Assembly and Side Brush

1. Clean the suction port
   If there is a lot of dust in the suction port, use a cloth clean up.

2. Cleaning the Side Brush
   Remove the Side Brush. Wipe the Side Brush and their slot with a dry cloth.

3. Clean the Driving Wheels to maintain their effectiveness.

4. Use the Multi-Function Cleaning Tool to cut off and remove any hair tangled around the Universal Wheel.


Other Components

• Clean Anti-Collision Sensors.

• Wipe the Anti-drop Sensors with the brush or the felt side of the Multi- Function Cleaning Tool to maintain their effectiveness.

• Wipe the Charging Contacts and Charging Dock Pins with the brush of the Multi-Function Cleaning Tool or a dry clean cloth to maintain their effectiveness.


Indicator Light and Alarm Sounds

Indicator Light

Alarm Tips

When the robot fails, the robot indicator flashes red and a beeping sound of varying lengths is emitted. Refer to the following table to query the cause of the failure:

If the trouble cannot be eliminated according to the above operation, Please try the following operations Re-open the Power Switch on the side of the robot and restart the robot. Please contact support@lefantlife.com.

Troubleshooting

Please use this chart to troubleshoot common problems using robot.

If the trouble cannot be eliminated according to the above operation, Please contact support@lefantlife.com
The images are only for reference, please refer to the actual item as the standard. Lohas reserves the right to update products without prior notice.

Technical Parameters

Robot Model: M201
Working Voltage(V): 12.8	Power Rating(W): 15
Charging Stand
Rated Input Voltage(V): 19	Rated output current(A): 0.6

Official website

Shenzhen Lohas Technology Co., LTD
http://www.lefantlife.com / support@lefantlife.com
Eastern area, 4th Floor, Factory Building 3, Longcheng Industrial Park,
Huanggekeng Community, Longcheng Street, Longgang District, Shenzhen
