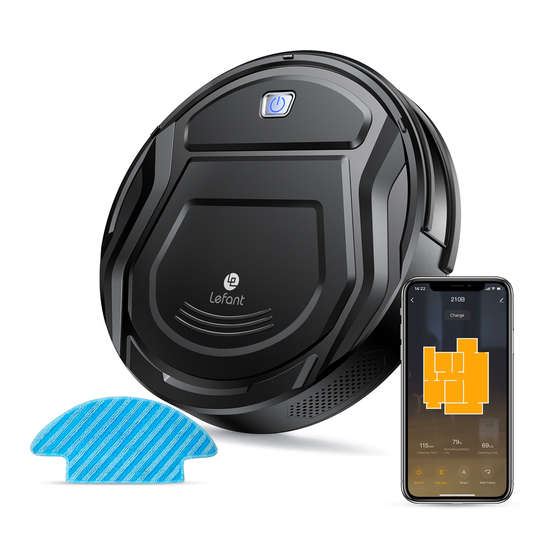

lefant M2 Instruction Manual
Robot vacuum cleaner
Hide thumbs
Also See for M2:
- Instruction manual (26 pages) ,
- Instruction manual (33 pages) ,
- User manual
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for lefant M2
Summary of Contents for lefant M2
- Page 1 INSTRUCTION M A N U A L 平面印刷品基本技术要求 深圳市云视机器人有限公司 设计： 日期:2021.1.14 物料名称 M210说明书（美规） 尺寸:140*210mm 产品型号 M210 材质： 100g双铜纸 页数： 36p 印刷颜色： 单色印刷 物料编号 903-0170-1131 比例： 1:1 版本号 V02 (01.14) 装订方式： 骑马钉装 变更记录： - 2021.1.14，增加尘盒检测后，物料编号和版本号有更新。 注意： - 此页不用印刷。 - 来料标签请列明物料名称、物料编码、版本号等信息。...
- Page 2 Robot Vacuum Cleaner Instruction Manual...
- Page 4 Should you encounter situations that have not been properly addressed in this Instruction Manual, please contactour Customer Service Center where a technician can address your specific problem or question. For more information, please visit the Lefant ROBOTICS official website: www.lefantlife.com or send email to support@lefantlife.com The Company reserves the right to make technological and/or design changes to this product for continuous improvement.
- Page 5 Important Safety Instructions Appliance to ensure that it can detect the step IMPORTANT SAFETY INSTRUCTIONS without falling over the edge. It may become necessary to place a physical barrier at the READ ALL INSTRUCTIONS BEFORE edge to keep the unit from falling. Make sure USING THIS APPLIANCE.
- Page 6 Keep hair, loose clothing, fingers, and all parts Take care not to damage the power cord. Do of body away from any openings and moving not pull on or carry the Appliance or Docking parts. Station by the power cord, use the power cord Do not operate the Appliance in a room where as a handle, close a door on the power cord, or an infant or child is sleeping.
- Page 7 The plug must be removed from the receptacle pack, picking up or carrying the appliance. Carrying the appliance with your finger on the before cleaning or maintaining the Docking switch or energizing appliance that have the Station. switch on invites accidents. Remove the Appliance from the Docking Station, When battery pack is not in use, keep it away and turn OFF the power switch to the Appliance...
- Page 8 Follow all charging instructions and do not charge the Recharge only with the charger specified by the battery pack or appliance outside of the manufacturer. A charger that is suitable for one temperature range specified in the instructions. type of battery pack may create a risk of fire when Charging improperly or at temperatures outside of used with another battery pack.
- Page 9 Federal Communications Commission (FCC) • Consult the dealer or an experienced radio/TV Interference Statement technician for help. This equipment has been tested and found to comply This device complies with Part 15 of the FCC Rules. with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 10 Contents 1.Package Contents ····························································································· 2.Operating and Programming. ············································································ 3.Maintenance ···································································································· 4.Indicator Light and Alarm Sounds ······································································ 5.Troubleshooting ································································································ 6.Product Specifications ·······················································································...
- Page 11 1. Package Contents /1.1 Package Contents Docking Station Robot Dust Bin Power Adapter Robot Vacuum Cleaner Instruction Manual Side Brushes Instruction Manual Remote Control with Batteries High Efficiency Filter Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.
- Page 12 1. Package Contents /1.2 Product Diagram Power Switch Robot (I=ON.O=OFF) Top Cover Start /Pause Button Start /Pause Button Dust Bin Infrared Anti-Collision Sensors Bottom Universal Wheel Anti-Drop Sensors Charging Contacts Side Brushes Suction port Driving Wheels...
- Page 13 Docking Station Remote Control Power Indicator Light Multi-function Cleaning Tool Power Adapter Infrared Signal Emitter Week display bar Clock icon Clock time display Appointment icon Schedule time display Mode status display Charging Contacts Power Adapter Port AUTO Mode Button Return to Charger Mode Button Direction Control Button START/PAUSE Button...
- Page 14 2. Operating and Programming /2.1 Notes Before Cleaning It may be necessary to place a physical barrier at the Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place. edge of a drop to stop the unit from falling over the edge.
- Page 15 2. Operating and Programming /2.2 Quick Start Remove Protective Materials Install Side Brushes...
- Page 16 2. Operating and Programming /2.3 Charging Robot Charge Robot Docking Station Placement flashes when Robot is charging. goes out when Robot is fully charged 4.5-5.5h ≥ Power ON *It is suggested to avoid picking up or moving Robot during the cleaning for Robot to return to charge successfully. Note: I ON, O = OFF...
- Page 17 2. Operating and Programming /2.4 APP Download To enjoy all available features, it is recommended to control your Robot via the Lefant Life App. Before you start, make sure that: •Your mobile phone is connected to a Wi-Fi network. Method2: Search for "Lefant Life", download and install.
- Page 18 2. Operating and Programming /2.5 Network Pairing • EZ Mode(only works with 2.4G WIFI) Turn on the POWER button to turn on the Robot. Press and hold the START/PAUSE button for about 3 seconds until you hear a beep. The START/PAUSE indicator flashes quickly and the ROBOT enters into EZ network configuration mode.
- Page 19 2. Operating and Programming /2.5 Network Pairing • AP (Access Point) Mode - only works with 2.4G WIFI Turn on the POWER button to turn on the Robot. Press and hold the START/PAUSE button for about 3 seconds and continue holding this button for another 3 seconds until you hear two beeps.
- Page 20 2. Operating and Programming /2.5 Network Pairing • AP (Access Point) Mode - only works with 2.4G WIFI Connect your phone to a Wi-Fi that starts with If your phone has been connected to the 2.4G Wi-Fi successfully, name “SmartLife”. you will see below interface.
- Page 21 2. Operating and Programming /2.6 Selecting Cleaning Mode During the first cleaning, please supervise Robot and assist it should there be a problem. Auto Cleaning Mode Robot will clean in Random Cleaning Pattern designed for carpet cleaning by default. Programmed Cleaning Mode Robot will clean in Programmed Cleaning Pattern optimized for hard floors.
- Page 22 Spot Cleaning Mode (Less than 3 minutes) Edge Cleaning Mode Return to Charging Dock ×2...
- Page 23 Start/Pause Power OFF Note: I ON, O = OFF The robot’ s Control Panel stops glowing after the robot is paused for a few minutes. Press the Start/Pause Button on Robot to wake up the robot. Start/Pause *If Robot will not be used for a while, fully charge Robot and power OFF before storage.
- Page 24 2. Operating and Programming / 2.7 Schedule Setting Robot has a Time Scheduling function. Robot can be programmed to automatically clean at a specific time using the Remote Control, even if nobody is at home.The current time of day and the cleaning times are scheduled using the Remote Control. The remote control is 24-hour system.
- Page 25 2. Operating and Programming / 2.7 Schedule Setting Schedule the Cleaning Time using Remote Control Press button, the icon and the week Press the Buttons to switch “hour” “minute” After the scheduled cleaning time is adjusted, align the and“week”. Press the Buttons to adjust column area flash on the Remote Control remote control with the robot, press the button on...
- Page 26 3.Maintenance /3.1 Regular Maintenance To keep Robot running at peak performance, perform maintenance tasks and replace parts: Replacement Frequency Maintenance Frequency Robot Part Every 3-6 months Side Brush Once every 2 weeks High Efficiency Filter Once per week Every 3-6 months Universal Wheel Anti-Drop Sensors Once per week...
- Page 27 3.Maintenance /3.2 Dust Bin Tips: High Efficiency Filter may not be cleaned with water. Gently tap it to remove the dust.
- Page 28 3.Maintenance /3.3 Direct Suction Option and Side Brushes Side Brushes Direct Suction Option 3.Maintenance /3.4 Other Components...
- Page 29 4.Indicator Light and Alarm Sounds /4.1 Indicator Light Start/Pause Button Status Flashes BLUE/ PINK The Robot is charging The Robot has a problem Flashes RED or glows a continuous RED The Robot has low battery Glows a continuous RED The Robot is cleaning Glows a continuous BLUE Flashes BLUE In the state “pending for network configuration”...
- Page 30 4.Indicator Light and Alarm Sounds /4.2 Alarm Sounds If Robot detects a problem, it emits alarm beeps and the Start/Pause Button flashes RED or glows RED. Glowing a solid RED Beeps Cause of issue APP Error prompts and solutions Check Driving Wheel for tangled hair or debris and clean as Driving Wheel malfunction 1 Beep sounds 3 times described in section 3 Maintenance...
- Page 31 5.Troubleshooting /5.1 Troubleshooting Malfunction Possible Cause Solutions Incorrect home Wi-Fi username or password entered Enter the correct home Wi-Fi username and password Make sure Robot is within range of your home Wi-Fi signal Robot is not within range of your home Wi-Fi signal Robot is not able to connect to the home The network can only be configured when the device is in the state...
- Page 32 Malfunction Possible Cause Solutions Remove power cords and small objects from the floor to The cleaning cycle is interfered by small objects or ensure cleaning efficiency. Robot will automatically clean barriers on the floor the area missed, please avoid moving Robot manually or Robot misses cleaning block the path during the cleaning cycle spots to be cleaned, or...
- Page 33 5.Troubleshooting /5.2 Wi-Fi Connection Before Wi-Fi setup, make sure Robot, mobile phone, and Wi-Fi network meet the following requirements. Robot and Mobile Phone Requirements •Robot is fully charged and the power switch of Robot is turned on. •Robot is ready for network setup. •Turn off...
- Page 34 6.Product Specifications M210 Model Rated Input 19 V 0.6A 11.4W Docking Station Model Rated Output Voltage 19 V Rated Output Current 0.6A AD-0121900060US Power Adapter Model 100-240V~ 50-60Hz 0.5A Power Adapter Input Power Adapter Output DC 19V, 0.6A, CLASS II Less than 0.5W Off/Standby Mode Power Networked Standby Power...
- Page 35 Warranty This warranty covers the repair or replacement of the malfunction device at our company’ s discretion for a period of 1-year. In addition this certificate is void if altered. The serial number must be provided as well as all accessories to be eligible for warranty coverage.
- Page 37 Official website Shenzhen lohas Technology Co.，LTD http://www.lefantlife.com / support@lefant.com Part of the eastern section,level 4 Building 3, Longcheng Industrial Park, Huanggekeng Community, Longcheng Street, Longgang District, Shenzhen M210-LH20210114-V02...
