lefant F1 User Manual

lefant F1 User Manual

Intelligent robot vacuum cleaner

Advertisement

F1
Lefant Intelligent
Robot Vacuum Cleaner
User Manual
Please keep the manual properly and read it carefully before using the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1 and is the answer not in the manual?

Questions and answers

Brian Desilets
April 8, 2025

Just double checking that the charging dock for the Lefont M201 and the Lefont F1 are comparable. Thanks

1 comments:
Mr. Anderson
April 9, 2025

Yes, the charging dock is compatible with both the Lefant M201 and Lefant F1, as indicated by the description "Compatible for Lefant Robot Vacuum" and the color name "M201 F1."

This answer is automatically generated

Brian Desilets
April 6, 2025

Where can I find a replacement charging deck foe my f1 vacuum?

1 comments:
Mr. Anderson
April 6, 2025

You can find a replacement charging dock for the Lefant F1 vacuum on Amazon. It is listed as "Charging Dock Station X1 Pcs. Compatible for Lefant Robot Vacuum. Cleaner Accessory Part Without Adapter (Color: M201 F1)" and is priced at $64.36.

This answer is automatically generated

Rob
July 17, 2025

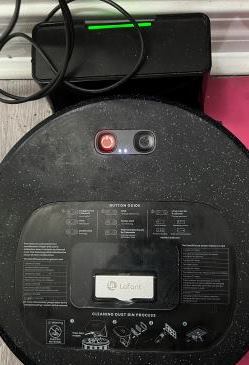

My Lefant F1 will not recharge after cleaning and ensuring proper connections. I get red flashing Power light and beeps when it starts to charge. Then turns green and fades off and on. Is it possible to get a new battery? If so, where and instructions.

User image 687984151da00
Kristie Lemoine
July 15, 2025

Is the Lafont T800 charging dock compatible with the F1 model? My vacuum will not charge or turn on

birocchi mario
May 2, 2025

robot M571 non c arica più dove è la batteria??

Subscribe to Our Youtube Channel

Summary of Contents for lefant F1

  • Page 1 Lefant Intelligent Robot Vacuum Cleaner User Manual Please keep the manual properly and read it carefully before using the product.
  • Page 2 Should you encounter situations that have not been properly addressed in this User Manual, please contact our Customer Service Center, we will solve your specific problem. For more information, please visit the Lefant ROBOTICS official website: www.lefantlife.com or send email to support.us@lefant.com The Company reserves the right to make technological and/or design changes to this product for continuous improvement.
  • Page 3 Important Safety Instructions If there is a drop off in the cleaning area due to IMPORTANT SAFETY INSTRUCTIONS a step or stairs, you should operate the Robot to ensure that it can detect the step necessary READ ALL INSTRUCTIONS BEFORE to place a physical barrier at the edge to keep USING THIS APPLIANCE.
  • Page 4 and do not charge the battery pack or appliance Do not put any object into openings. Do not outside of the temperature range specified in the use with any opening blocked; keep free of instructions. Charging improperly or at tempera- dust, lint, hair, and anything that may reduce tures outside of the specified range may air flow.
  • Page 5 keys, nails, screws,ect, that can make a connection The plug must be removed from the receptacle from one terminal to another. Shorting the battery before cleaning or maintaining the Docking terminals together may cause burns or a fire. Station. Under abusive conditions, liquid may be ejected Remove the robot from the Docking Station, from the battery;...
  • Page 6 Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use the robot only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  • Page 7 Federal Communications Commission (FCC) • Consult the dealer or an experienced radio/TV Interference Statement technician for help. This equipment has been tested and found to comply This device complies with Part 15 of the FCC Rules. with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 8 Contents . Product composition ·························································································· . Using the product ···························································································· . Maintenance and servicing ·············································································· . Lighting effect and alarm prompt ····································································· . Troubleshooting ······························································································· . Technical parameters ······················································································...
  • Page 9 Re-usable mop X 2 Disposable duster Disposable Locking Water Non-woven fabric Fast dry without any water stains Lefant Intelligent Robot Vacuum Cleaner User Manual Please keep the manual properly and read it carefully before using the product. User manual High Efficient Particulate Air...
  • Page 10 1. Product composition / 1.2 Part name Top view Dust bin handle Gear indicator light [Timer button] [Start/pause button] [Timer button] Anti-collision sensor Dust bin [Start/pause button] Botton view mecanum wheel Anti-falling sensor Charging electrode Side brush Suction port Anti-falling sensor Anti-falling sensor Driving Wheels...
  • Page 11 Docking Station Indicator light Power adapter Cleaning tool Power adapter socket Charging Electrodes Dust bin HEPA support High Efficient Particulate Air (HEPA) Filter Pre-filter Dust bin padlock...
  • Page 12 2. Using the product / 2.1 Precautions Arrangement of room to be cleaned Prevention of robot falling Please put tables, chairs, floor fan, weighing scale, etc. in place Although the robot has built-in anti-falling sensors, it is still a good before using the robot to maximize the cleaning area.
  • Page 13 2. Using the product / 2.2 Preparation Remove the protective film on the Docking Station Remove the protective film on the Robot Installation of the side brushes Please install the side brushes in the side brush sockets at the bottom of product. A click sound indicates a proper installation.
  • Page 14 2. Using the product / 2.3 Charging the robot Turning on the robot Placement of the charging base/ connection of power supply Keep pressing the [start/pause button] for three seconds to turn * Place the charging base against the wall and on flat ground. Make sure that on/off the robot.
  • Page 15 2. Using the product / 2.4 Controlling the robot with buttons Function Button operation Keep pressing the [start/pause button] for 3 seconds ON/OFF Single press of the [start/pause button] Start/pause Automatic recharge Double clicking the [start/pause button] Setting/Refreshing a scheduled daily Single press of [Timer button] cleaning at the current time of day.
  • Page 16 2. Using the product / 2.5 Floor-mopping functions Mopping the floor Maintenance and servicing...
  • Page 17 2. Using the product / 2.6 Application of virtual wall with magnetic strip A magnetic strip can be used to separate an area not Please place the virtual wall with magnetic strip on dry ground for expected to be cleaned (e.g. bathrooms or an area best performance.
  • Page 18 Tips: * Follow the guidance in the Lefant app to register, login, and pair the robot. * Please make sure that the mobile phone is connected to your WiFi network before paring the robot vacuum cleaner. * Note that the robot works with 2.4-GHz WiFi networks only.
  • Page 19 3. Maintenance and servicing / 3.1 Dust bin and HEPA filter Lift up the handle on the top Open the dust bin lock latch, Warning: surface of dust bin to take it out. to dump the dust. Neither the dust bin nor the HEPA filter can be washed with water.
  • Page 20 3. Maintenance and servicing / 3.2 Suction inlet and side brushes Clean side brush Clean the suction inlet Unplug the side brushes and wipe them with a piece of clean cloth. Clean the mecanum wheel and remove Clean the driving wheels any hair tangles...
  • Page 21 3. Maintenance and servicing / 3.3 Other components Clean the anti-collision sensor Clean the anti-falling sensors to guarantee the sensitivity of sensor Clean the charging electrodes Please clean the charging electrodes of the robot and the Docking Station, respectively, with duster cloth.
  • Page 22 4. Lighting effects and alarm prompts / 4.1 Lighting effects Display status of indicator light Robot status [Start/pause button] The ice blue light turns on Cleaning [Start/pause button] The ice blue light slowly lights up and dims Charging Charging complete [Start/pause button] The light turns off Charging automatically [Start/pause button] The ice blue light or red light turns on...
  • Page 23 4. Lighting effects and alarm prompts / 4.2 Alarm prompts When the robot runs into trouble, it will turn on or flash its red indicator light, and send out buzzing "beep" with different durations and separations. The following table summarizes the corresponding causes: The red light is normally on Prompt sound Fault cause...
  • Page 24 5. Troubleshooting / 5.1 Robot working If the following problems occur in the application process of product, user can solve them independently by comparison and inquiry. Fault Possible causes Solution The router network is configured to ensure that the "user name" The user name and password of router are inaccurate.
  • Page 25 5. Troubleshooting / 5.1 Robot working Fault Possible causes Solution Please arrange the wire, slipper and other objects scattered on the ground before robot running to reduce the scattered articles on the ground as far as possible. In The wire, slipper and other objects on the ground case of sweeping omission, the robot will automatically influence the normal running of robot.
  • Page 26 5. Troubleshooting / 5.2 Wi-Fi Connection Before Wi-Fi setup, make sure Robot, Mobile Phone, and Wi-Fi network meet the following requirements. Robot and Mobile Phone Requirements •The power switch of Robot is turned on. •Robot is ready for network setup. Wi-Fi Network Requirement •You are using a or 2.4/5-GHz mixed network.
  • Page 27 6. Technical parameters Product model Rated input of machine 19 V Docking Station Model Rated Output Voltage Rated Output Current 19 V Power Adapter Model A934-190100W-US1 Power Adapter Input 100-240V~ 50-60Hz 0.5A DC 19V, 1A, CLASS II Power Adapter Output Less than 0.5W Off/Standby Mode Power Networked Standby Power...
  • Page 28 Warranty This warranty covers the repair or replacement of the malfunction device at our company’s discretion for a period of 1-year. In addition this certificate is void if altered. The serial number must be provided as well as all accessories to be eligible for warranty coverage.
  • Page 29 Official website ShenZhen Lohas Technology Lo.,Ltd Email: support.us@lefant.com Website: http://www.lefantlife.com Building 2, Fashion Brand Industrial Park, E'Bu Town, Shenzhen-Shanwei Special Cooperation Zone, Shenzhen, Guangdong, China. 903-0601-0001 F1-LH20210811-V02...
