Copeland Supervisory E3 Quick Start Manual

Supervisory Controller
Setup with M400 VFD Drive
This document will guide you through setting up and commissioning the
M400 VFD Drive in Supervisory Controllers (E3 and Site Supervisor).
Complete All Programming before you setup the M400 Drive.
Note that the M400 Drive requires Supervisory Controller
firmware version 2.14F01 and above.
The keypad and display gives information about the
operating status of the drive and trip codes. It provides
the ability to change parameters, stopping and starting the
drive, and the ability to perform a drive reset.
Keypad Number
The Enter button is used to enter parameter
1 (Enter) view or edit mode, or to accept a parameter
edit.
The Navigation keys can be used to select
individual parameters or to edit parameter
2 (Navigation) values. In keypad mode, the "Up" and
"Down" keys are also used to increase or
decrease the motor speed.
The Start key is used to start the drive in
3 (Start)
keypad mode.
The Stop / Reset key is used to stop and
4 (Stop/Reset)
reset the drive in keypad mode. It can also be
used to reset the drive in terminal mode.
The Escape key is used to exit from the
5 (Escape) parameter edit / view mode or disregard a
parameter edit.
026-4176 R3
©2024 Copeland LP.
Keypad Description
QUICK START GUIDE

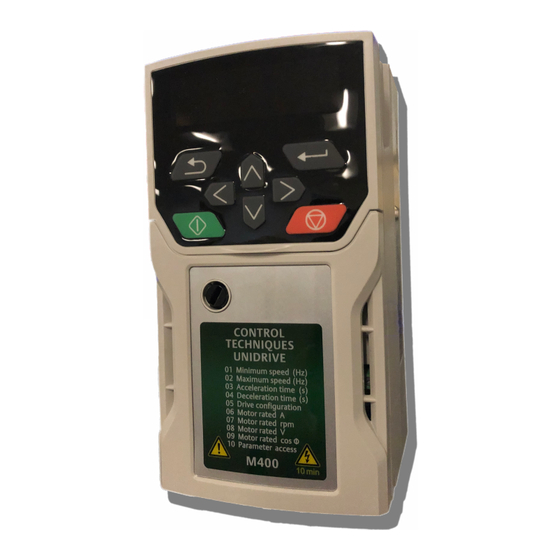

Figure 1 - Unidrive M400 Keypad Details
Figure 2 - Unidrive M400 Keypad Details
