Audient EVO 4 Manual

Connect

To connect your EVO 4 to your computer, simply plug in the USB cable provided. Once successfully connected, EVO 4's volume wheel LEDs will illuminate and perform a short animation followed by the Volume button illuminating.

Install Drivers

In order to start using your EVO 4 you will need to download and install the latest drivers, which can be found at evo.audio/evo4/downloads. Once the drivers are installed, you may be prompted to update the units firmware.

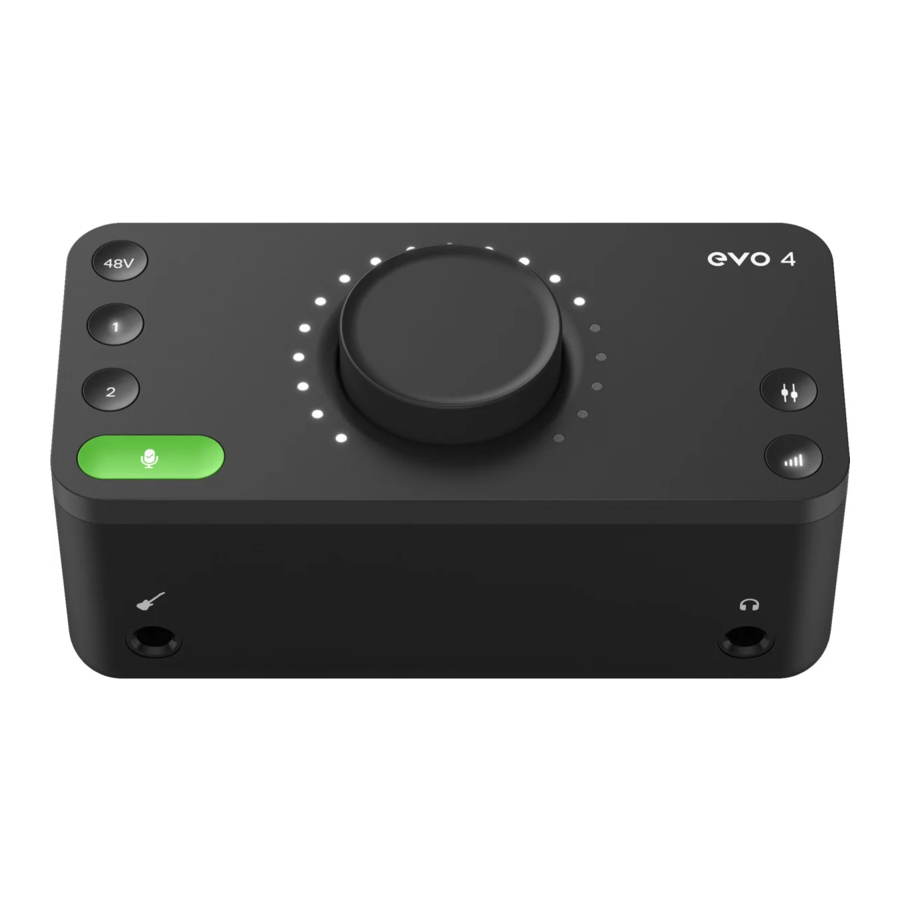

The Features

1. Smartgain Mode
2. Inputs 1 + 2
3. Phantom Power
4. Volume knob
5. Monitor Mix
6. Output volume

Smartgain Mode

1. Press the Smartgain button to begin

2. The Smartgain LED will illuminate green and the input channel LEDs (1 & 2) will begin to flash (indicating a channel must be selected)

3. Press one or more of the input channel buttons to select the channels to be adjusted

4. Press the Smartgain button again to begin the process

5. The Smartgain LED will start flashing red and the volume wheel LED's will illuminate indicating that Smartgain Mode is now listening

6. Start playing or performing into the microphone

7. Smartgain Mode will dial in the correct levels and when complete the Smartgain button will flash green twice to indicate it has been successful

8. You are now ready to start recording
