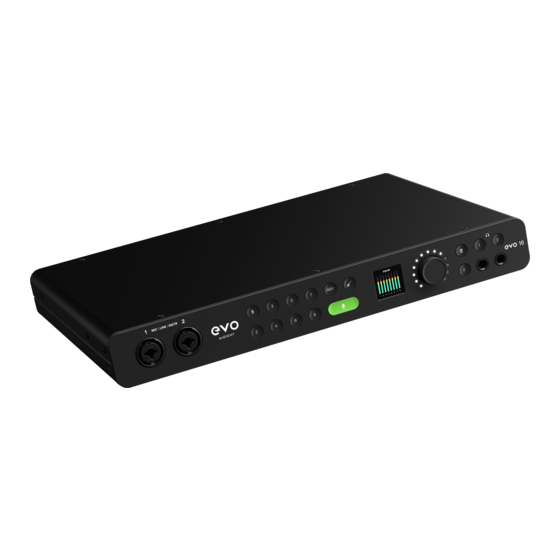

Audient evo 16 User Manual

24in/24out audio interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

24in/24out Audio Interface
User Manual 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the evo 16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audient evo 16

Summary of Contents for Audient evo 16

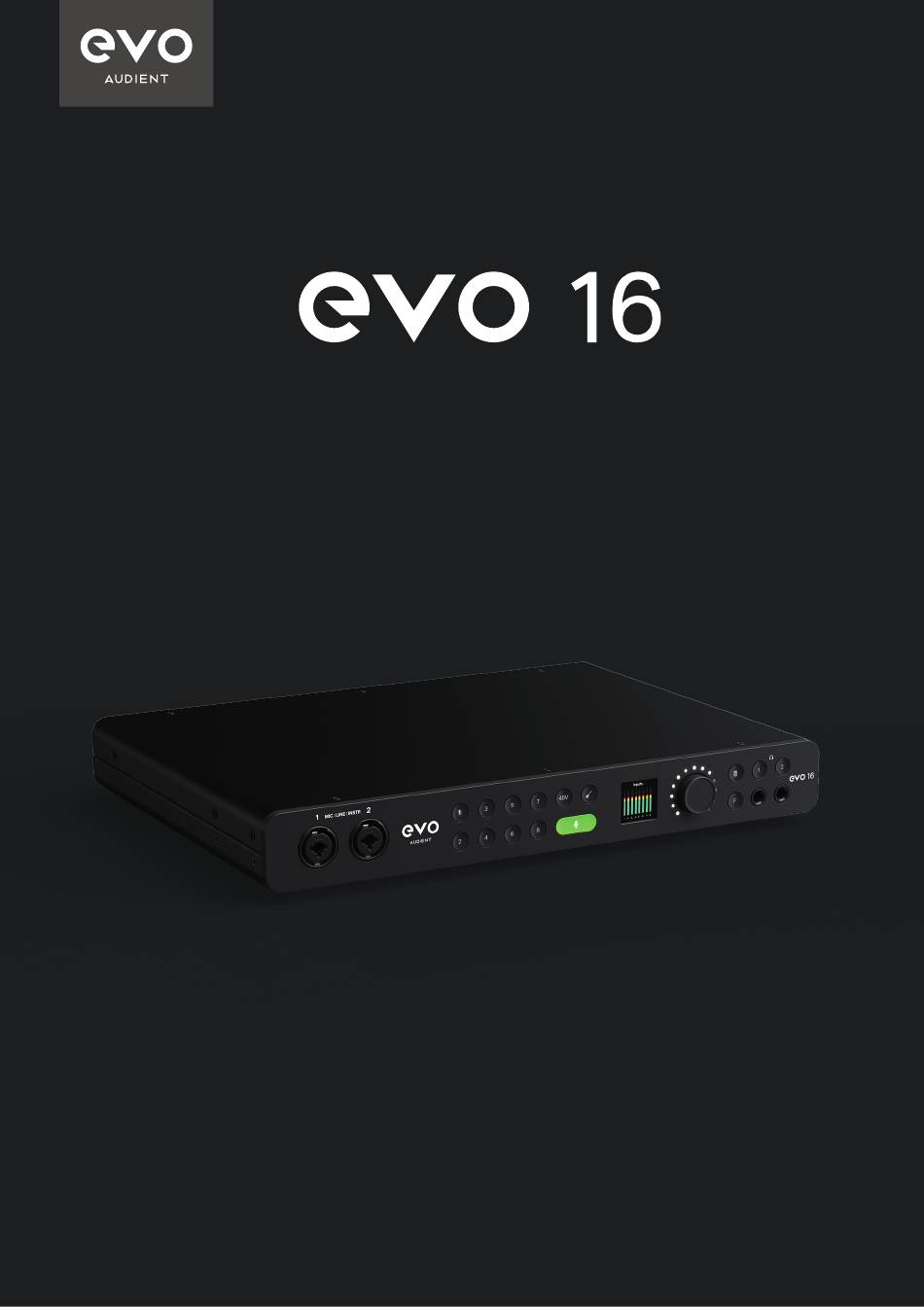

  • Page 1 24in/24out Audio Interface User Manual 1.0...
  • Page 2 We hope you enjoy using EVO 16 and it helps you in your creative endeavours, whatever they may be! Work smarter not harder.

  • Page 3: Table Of Contents

    EVO Software Mixer Mic Preamps & Line Level Inputs Overview Smartgain Input Mute Audio Loop-back Mixer Stereo Linking Using Audio Loop-back on EVO 16 Phantom Power (48V) Recording/Streaming your Loop-back Channels Instrument Input Analogue Outputs Headphone Outputs Firmware Update Procedure...

  • Page 4: Declaration Of Conformities

    We, EVO Audient, declare that the product, the EVO 16, to which this declaration If this equipment does cause harmful interference to radio or television...

  • Page 5: Installation/Setup

    You can then set EVO 16 as your main output by going to System of the application. Once downloaded, simply open the .dmg file and Preferences > Sound and then selecting the EVO 16 as your device for then drag and drop the EVO application into your applications folder.
  • Page 6 To set the EVO 16 as your default sound device, go to Control Panel > Hardware and Sound > Sound. Now select the Playback tab. In the list of devices, find EVO 16 Main Output 1+2, click on it and select Set Default Device.

  • Page 7: Registration With Arc

    Spam and Junk folders if you cannot see this. Once you’ve verified your account, register your EVO 16 by entering the serial number and the unique 4 digit PIN found on the bottom of the EVO 16. Once you have registered the product, you can now select from a wide array of free software and plugins, giving you easy access to powerful creative tools straight away.

  • Page 8: Hardware Features

    EVO 16 into a fully immersive, easy to use experience. The first time powering on EVO 16, Motion UI will ask to follow the setup procedure, allowing you to customise EVO 16’s settings to your liking.

  • Page 9: Mic Preamps & Line Level Inputs

    1+2. EVO 16 can lower the signal level by 8 decibels and boost it by up to 50 Control Wheel...
  • Page 10 Smartgain Mode Smartgain is a powerful feature which helps you get recording as quickly as If all selected channels are successfully set, you will see the ‘Smartgain possible. It is able to listen to all the activated inputs, and set gain within a Successful’...

  • Page 11: Input Mute

    Green - means it was successful Input Mute - means it failed Grey - means the channel was not selected To quickly mute a channel, simply hold down the hardware channel button until the Mute Feature Toggle screen is shown, and the channel button begins flashing.

  • Page 12: Stereo Linking

    Stereo Linking All of the input channels can be linked as stereo pairs, for example: Channel When two channels are linked, a ‘Link’ icon will appear on the Input Status 1+2, 3+4, 5+6, 7+8. This allows you to match the gain for both channels to make Screen and the input name will update.

  • Page 13: Phantom Power (48V)

    When turning on and off phantom power, EVO 16 will automatically mute the input to avoid unwanted noises coming through to your speakers or headphones.

  • Page 14: Instrument Input

    DI (Direct Injection) and provides a high input impedance, which enables you to get the best tone from your instruments. The two instrument inputs are found on the front of EVO 16, and accept unbalanced TS jacks, just like the ones you’d plug into a guitar amp.

  • Page 15: Analogue Outputs

    Line Outputs To quickly mute an output, hold down the channel button until the Mute EVO 16 also provides you with eight dedicated line level outputs, which can screen is shown, and the channel button begins flashing. When a channel be found at the rear of the unit.

  • Page 16: Function Button

    Dim, ALT speakers, and Mono. the EVO 16. This enables you to quickly control your monitoring at the click of a button. To assign a monitor control to the F-Button, refer to either the Software Mixer or Motion UI Settings section of this manual.

  • Page 17: Talkback

    Talkback The F-button can also be used to activate Talkback, enabling you to stay in contact with an artist through their headphones. This is configured in the EVO Mixer App’s Settings Panel. When Talkback is activated, whether using the F-button or the EVO Software Mixer, the Talkback screen is breifly shown.
  • Page 18 The Word Clock output will send a clock signal at the same sample rate (44.1, to 4 channels at sample rates of 88.2kHz or higher. 48, 88.2 or 96kHz) that the EVO 16 is operating at. This will occur regardless of whether the EVO 16 is being clocked internally or externally.
  • Page 19 EVO 16 with daisy chained BNC connection EVO 16 as the Master Clock With the EVO 16 set as the master clock the other devices in the chain can be BNC T Connector clocked by either the optical output port or the BNC word clock output.
  • Page 20 Metering Motion UI Menu When not adjusting settings or pressing buttons on EVO 16 for more than 5 In the Motion UI menu, you will find the options to power the unit down, seconds, the screen will default to display either the input or output meters, customise the brightness levels of the LEDs, assign any of the monitoring depending on whether you last pressed an input or output button.
  • Page 21 Here, rotate the Control Wheel between the different options, and press to confirm if you want to turn off EVO 16, select Yes, and press the Control the Control Wheel to select it. Then press OK to confirm your selection.
  • Page 22 Factory Reset To reset EVO 16 to its factory settings, select the factory reset button and The status screen displays the sample rate EVO 16 is currently set to via the select Yes to start the process. EVO Mixer as well as showing what protocol both the digital inputs are set to and whether they have been successfully clocked.

  • Page 23: Evo 16 Rack Mounting

    We would suggest a space of at least one rack unit above and below the unit. holes found on the side of the EVO 16. Refer to the image above for correct positioning. Insert the x4 M4 screws into the holes, and tighten until firm.

  • Page 24: Software Features

    ARC can be found on page 12. Check for Updates This option will check if any updates are available for your EVO 16 to add new features or support for future operating systems. If any updates are available then you’ll be prompted to install them.

  • Page 25: Evo Software Mixer

    EVO SOFTWARE MIXER Each fader has the following functions: The EVO Software Mixer allows you to completely control your monitoring for recording, mixing or content creation. Pan Control This allows you to monitor the audio on either the left speaker, the right speaker or anywhere in between.
  • Page 26 Mic 1, 2, 3, 4, 5, 6, 7 & 8 These are the eight microphone inputs of the EVO 16. Pulling up the faders for these channels allows you to listen to the eight inputs through your speakers or headphones with very low latency.
  • Page 27 The EVO 16 Software Mixer has 8 DAW Return Channels allowing you to set DAW 1+2, 3+4, 5+6, 7+8 up multiple cue mixes or sends to hardware outboard gear. Using these three channel types, you can build up your main monitor mix and up to four additional On the far right side of the mixer is the master section.
  • Page 28 Various functions of the EVO Software Mixer can be assigned to the Function Key of the EVO 16 to allow you to quickly control your monitoring at the click of a button. To assign a monitor control to an F-Button, simply right click on the control and select the F-Button.
  • Page 29 Cue’s have seperate trims which can be adjusted when the Cue Mix is selected in the Main Mixer Window. • Amber - A clock signal is detected but at a different sample rate to EVO 16 • Green - A clock signal is detected and is at the correct sample rate.
  • Page 30 • DAW THRU - This allows you to route to outputs exactly as they would appear Talkback Device in your DAW. For example, if you set Analogue out 1+2 to DAW THRU, anything your DAW sends out to Outputs 1+2 will be sent directly to Analogue outputs If an external device is selected then this allows you to select which connected 1+2.
  • Page 31 Saving and Opening EVO Configurations If you have a configuration you want to use again in the future then you can save it as a preset. EVO 16 will save all your settings to allow for speedy recall. Mic Preamp Controls To Save a configuration, go to File >...

  • Page 32: Using Audio Loop-Back On Evo 16

    ‘Load From File’ and then use the file explorer to find the setting you wish to load. Standalone Operation If you would like to use EVO 16 without a host computer, EVO 16 can be configured to operate in standalone mode. This is great for setting up complex tracking setups in remote locations.

  • Page 33: Recording/Streaming Your Loop-Back Channels

    Cue C - The audio mix created in the EVO mixer on the CUE C panel device to EVO 16 channels 23-24. (Please note that not all applications will Cue D - The audio mix created in the EVO mixer on the CUE D panel allow you to access channels 23 and 24, which may mean you are unable to use loop-back with this application).

  • Page 34: Firmware Update Procedure

    Firmware Update Procedure To update your firmware, go to the EVO Application Menu and select ‘Check for Updates’. Provided you have an internet connection, the EVO App will now check with our update service to see if there are any new firmware updates for your EVO If a firmware update is available, you’ll be prompted to install it directly from our update service.

  • Page 35: Specifications

    ANALOGUE TO DIGITAL CONVERTER SPECIFICATIONS Digital Reference Level: 0dBFS = +10.5dBu Frequency Response: +/-0.5dB 10Hz to Fs/2 Crosstalk: -125dBu @ 1kHz & 10kHz THD+N @ -1dBFS (1kHz): <0.001% MICROPHONE PREAMPLIFIER: Dynamic Range: 112.5dB A-Weighted Mic Gain Range: 58 dB Line Gain Range: 58dB with -10dB Pad DIGITAL TO ANALOGUE CONVERTER Phantom Power:...

  • Page 36: Warranty Information

    • Follow Instructions - All operating and use instructions should be followed. We accept liability to repair or replace your EVO 16 as described above. We do not accept any additional liability. This warranty does not affect any legal rights you •...
  • Page 37 • Ventilation - Slots and openings in the cabinet are provided for ventilation • Object and Liquid Entry - Never push objects of any kind into this product to ensure reliable operation of the product and to protect it from overheating. through openings as they may touch dangerous voltage points or short-out These openings must not be blocked or covered.
  • Page 38 The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Tel: 0044 1256 381944 support@evo.audio.com support.audient.com SAFETY INSTUCTIONS SAFETY INSTUCTIONS...
  • Page 39 FCC STATEMENT This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
