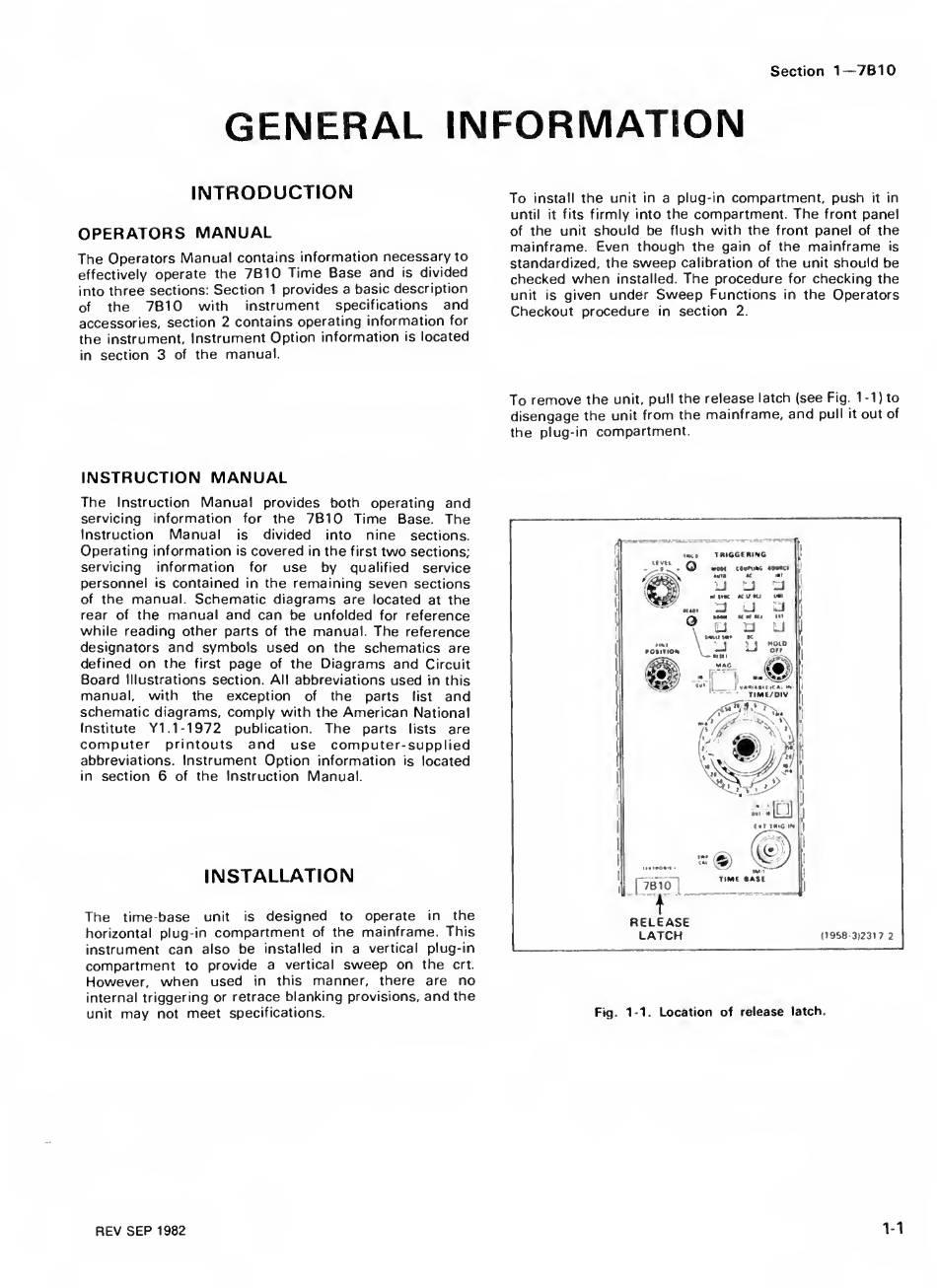

Tektronix 7B10 Instruction Manual page 9

Section 1
—
7B10
GENERAL INFORMATION
INTRODUCTION
OPERATORS
MANUAL
The Operators
Manual
contains information necessary
to
effectively
operate the
7B10 Time Base and
is
divided
into
three sections:
Section
1
provides a
basic description
of
the
7B10
with instrument specifications
and
accessories, section 2
contains operating information for
the instrument, Instrument Option information
is
located
in
section
3
of
the
manual.
INSTRUCTION
MANUAL
The
Instruction
Manual
provides both operating and
servicing
information
for
the
7B10
Time
Base.
The
Instruction
Manual
is
divided
into
nine
sections.
Operating information
is
covered
in
the
first
two
sections;
servicing information
for
use by
qualified service
personnel
is
contained
in
the remaining seven
sections
of
the
manual. Schematic diagrams
are located
at
the
rear of the
manual and
can be unfolded
for
reference
while reading
other parts
of
the manual.
The
reference
designators
and symbols
used on
the
schematics
are
defined
on
the
first
page
of
the
Diagrams and
Circuit
Board
Illustrations section.
All
abbreviations
used
in
this
manual, with
the exception
of
the
parts
list
and
schematic diagrams, comply with
the
American
National
Institute Y1. 1-1
972
publication.
The
parts
lists
are
computer
printouts and use computer-supplied
abbreviations.
Instrument Option information
is
located
in
section 6
of
the
Instruction
Manual.
INSTALLATION
The
time-base unit
is
designed
to
operate
in
the
horizontal plug-in
compartment
of
the
mainframe.
This
instrument
can also be
installed in
a vertical plug-in
compartment
to
provide a vertical
sweep
on
the
crt.
However,
when
used
in
this
manner,
there are
no
internal triggering or
retrace blanking provisions,
and
the
unit
may
not
meet
specifications.
To
install
the
unit
in
a plug-in
compartment, push
it
in
until
it
fits
firmly into the
compartment.
The
front panel
of
the unit
should be flush
with
the
front
panel
of
the
mainframe. Even though
the gain
of the
mainframe
is
standardized, the
sweep
calibration of the
unit
should be
checked
when
installed.
The
procedure
for
checking the
unit
is
given
under
Sweep
Functions
in
the Operators
Checkout procedure
in
section 2
To remove the
unit, pull
the release latch (see
Fig.
1
-1
)
to
disengage the unit
from the
mainframe, and
pull
it
out of
the plug-in
compartment.
LATCH
(19S8 312317
2
Fig.
1-1. Location of release latch.
REV SEP
1982
1-1
