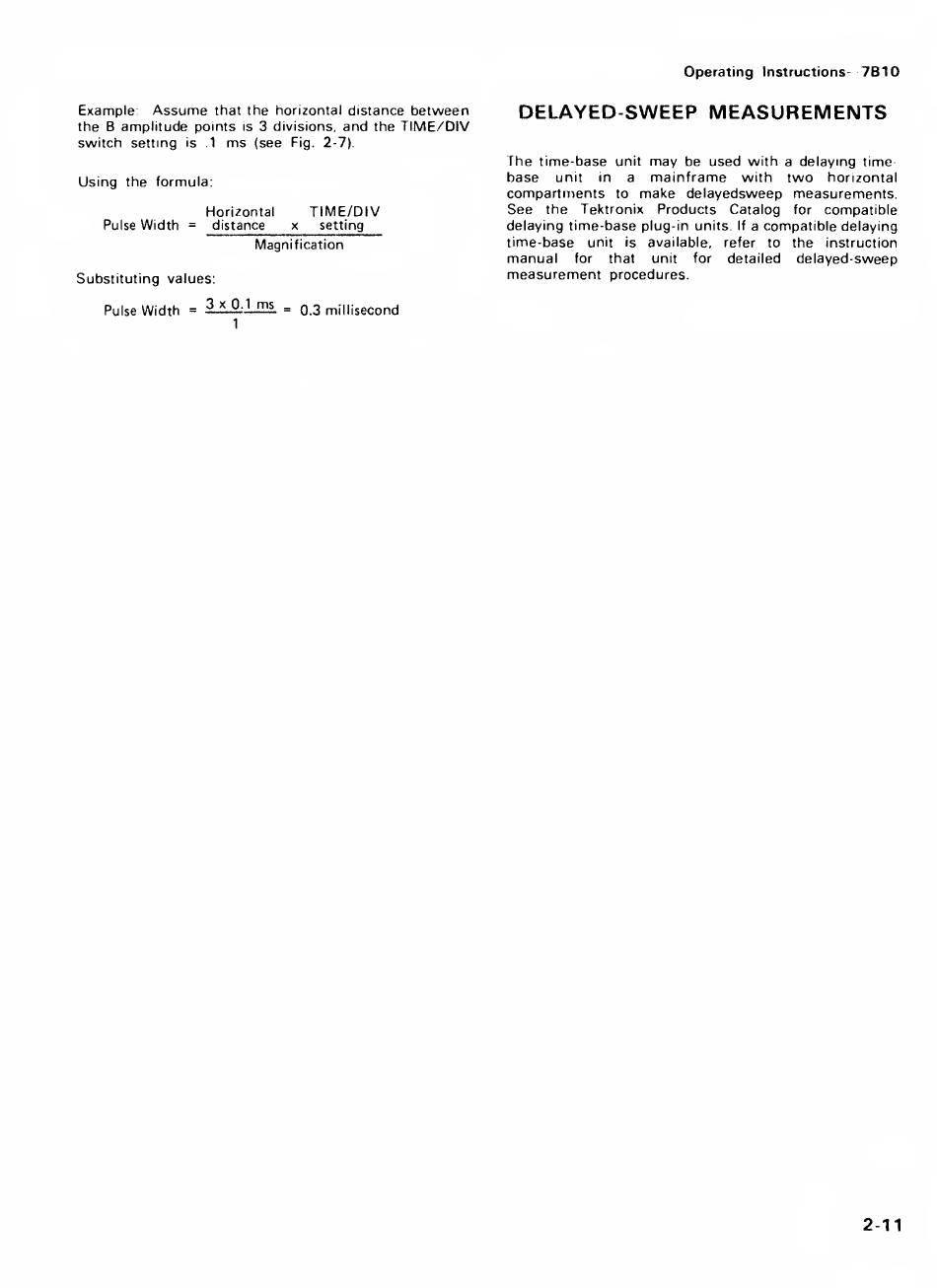

Operating
Instructions-
7B10
Example:
Assume
that
the
horizontal
distance
between
the
B amplitude
points
is
3 divisions,
and
the
TIME/DIV
switch
setting
is .1
ms
(see Fig.
2-7)
Using the formula:
Horizontal
TIME/DIV
Pulse
Width
=
distance x setting
Magnification
Substituting values:
Pulse
Width
=
= 0.3 millisecond
1
DELAYED-SWEEP MEASUREMENTS
The time-base
unit
may
be used with
a delaying time
base
unit
in a
mainframe
with
two
horizontal
compartments
to
make
delayedsweep measurements.
See the
Tektronix Products Catalog
for
compatible
delaying time-base
plug-in units
If
a
compatible delaying
time-base
unit
is
available,
refer
to
the
instruction
manual
for that unit for detailed
delayedsweep
measurement
procedures.
2-11
