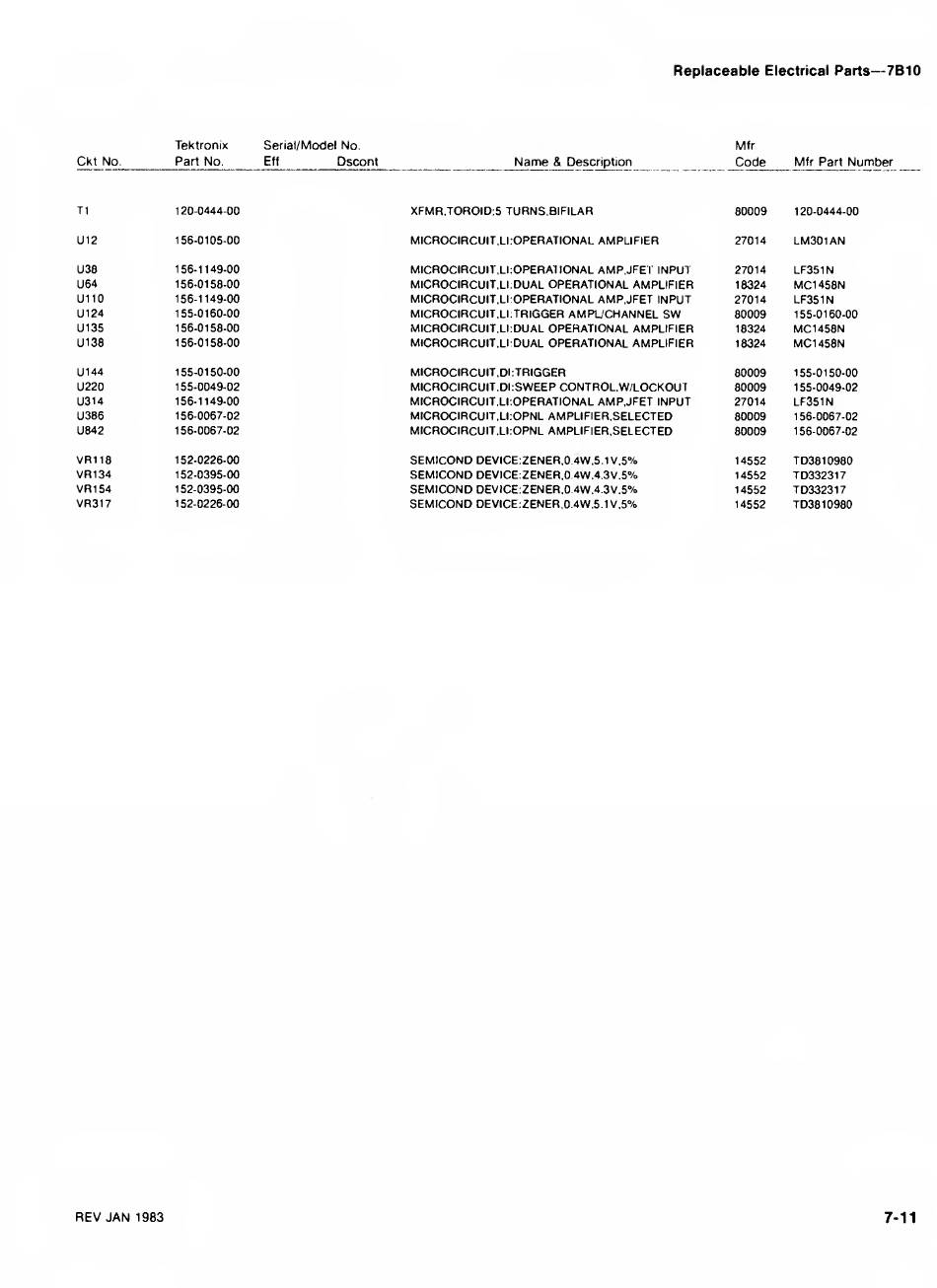

Tektronix 7B10 Instruction Manual page 89

Replaceable
Electrical
Parts
—
7B10
Ckt
No.
Tektronix
Part No.
Serial/Model No.
Eft
Dscont
Name
&
Description
Mfr
Code
Mfr Part
Number
T1
120-0444-00 XFMR,TOROID:5 TURNS,
BIFILAR 80009 120-0444-00
U12 156-0105-00 MICROCIRCUIT.
LI
:OPERATIONAL AMPLIFIER
27014 LM301AN
U38 156-1149-00 MICROCIRCUIT. LLOPERAIIONAL AMP.JFET
INPUT 27014 LF351N
U64
156-0158-00
MICROCIRCUIT.LI DUAL OPERATIONAL AMPLIFIER
18324
MC1458N
U110
156-1149-00
MICROCIRCUIT.LLOPERATIONAL AMP.JFET
INPUT 27014 LF351N
U124 155-0160-00 MICROCIRCUIT.LLTRIGGER
AMPUCHANNEL
SW
80009 155-0160-00
U135 156-0158-00
MICROCIRCUIT.LLDUAL OPERATIONAL
AMPLIFIER
18324
MC1458N
U138 156-0158-00 MICROCIRCUIT.LI
DUAL OPERATIONAL
AMPLIFIER
18324
MC1458N
U144 155-0150-00
MICROCIRCUIT.DITRIGGER
80009
155-0150-00
U220 155-0049-02 MICROCIRCUIT.DI
SWEEP
CONTROL.W/LOCKOUT
80009 155-0049-02
U314 156-1149-00
MICROCIRCUIT.LLOPERATIONAL AMP.JFET
INPUT
27014
LF351N
U386 156-0067-02
MICROCIRCUIT.LLOPNL AMPLIFIER.SELECTED
80009 156-0067-02
U842 156-0067-02
MICROCIRCUIT.LLOPNL AMPLIFIER.SELECTED
80009
156-0067-02
VR118
152-0226-00
SEMICOND
DEVICE;ZENER.0
4W,5.1V,5% 14552 TD3810980
VR134
152-0395-00
SEMICOND
DEVICE:2ENER.0
4W.4.3V.5% 14552 TD332317
VR154
152-0395-00
SEMICOND
DEVICE:ZENER.O 4W.4.3V.5%
14552
TD332317
VR317
152-0226-00
SEMICOND
DEVICE:ZENER,0.4W.5.1V.5%
14552
TD38
10980
REV
JAN
1983 7-11
