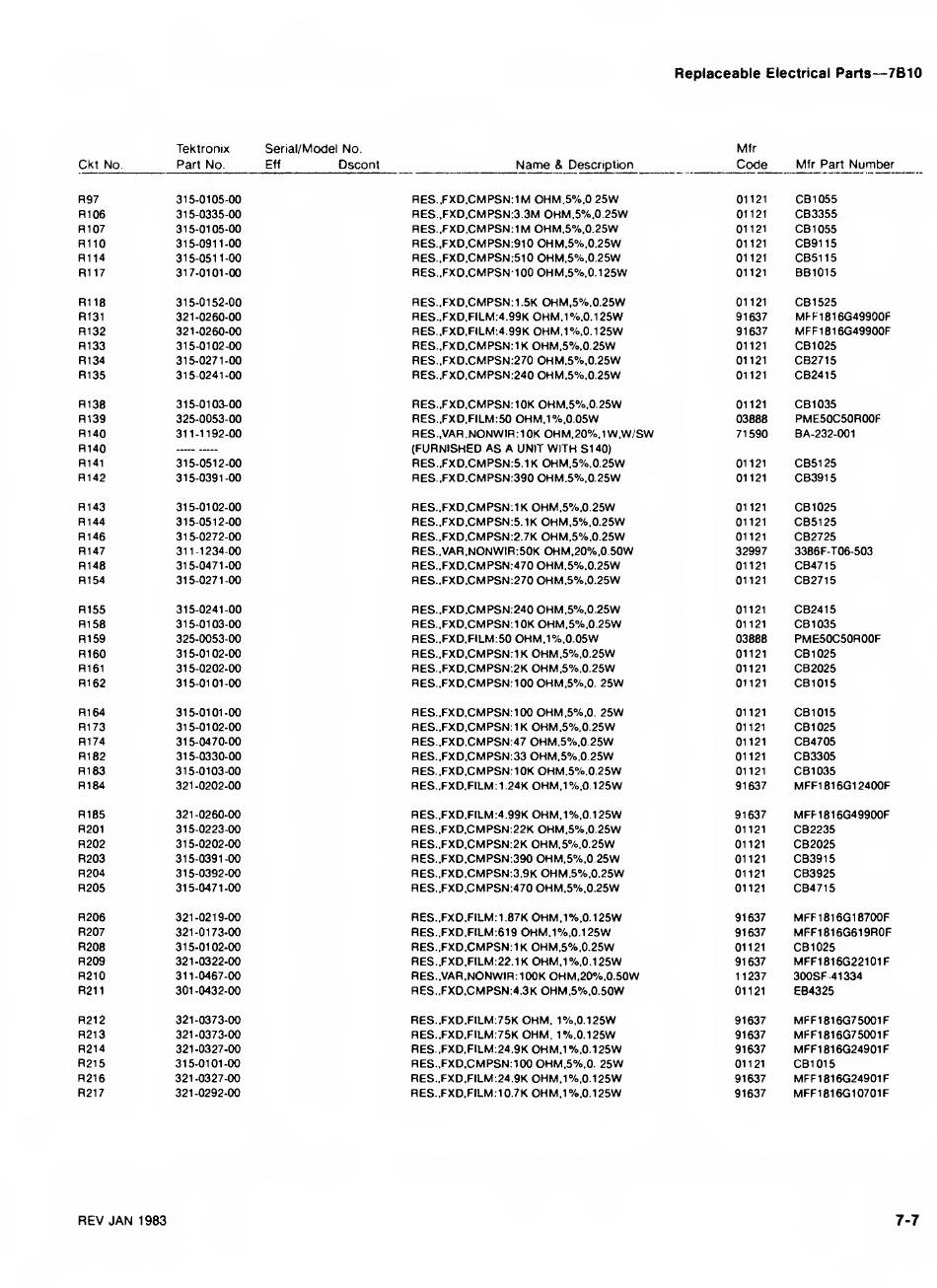

Tektronix 7B10 Instruction Manual page 85

Replaceable
Electrical Parts
—
7B10
Ckt No.
Tektronix
Part No.
Serial/Model No.
Efi
Dscont
Name
&
Description
Mfr
Code Mfr
Part
Number
R97
315-0105-00
RES
,FXD,CMPSN:1M OHM.5%,0
25W
01121
CB1055
R106
315-0335-00
RES
.FXD,CMPSN:3.3M OHM.5%,0
25W
01121
CB3355
R107 315-0105-00
RES„FXD.CMPSN:1M OHM.5%,0 25W
01121
CB1055
R110
315-0911-00 RES..FXD.CMPSN:910 OHM,5%,0.25W 01121 CB9115
R114 315-0511-00
RES.,FXD,CMPSN:510 OHM.5%,0 25W
01121
CB5115
R117 317-0101-00
RES .FXD.CMPSN'IOO OHM,5%,0.125W
01121
BB1015
R118
315-0152-00
RES.,FXD.CMPSN;1.5K OHM,5%,0.25W
01121
CB1525
R131 321-0260-00
RES..FXD.FILM:4.99K OHM,1%.0.125W
91637
MFF1816G49900F
R132 321-0260-00 RES..FXD.FILM:4.99K OHM,1%.0.125W 91637
MFF1816G49900F
R133 315-0102-00
RES .FXD.CMPSNrlK OHM,5%,0.25W
01121
CB1025
R134 315-0271-00
RES.,FXD.CMPSN;270 OHM,5%,0.25W
01121
CB2715
R135
315-0241-00
RES.,FXD.CMPSN:240 OHM.5%.0.25W
01121
CB2415
R138 315-0103-00
RES..FXD,CMPSN:10K OHM,6%.0 25W
01121
CB1035
R139 325-0053-00 RES..FXD.FILM:50
OHM,1%,0.05W
03888
PME50C50R00F
R140
311-1192-00 RES.,VAR,NONWIR:10K
OHM.20%.1W.W/SW
71590 BA-232-001
R140 (FURNISHED AS A
UNIT
WITH
SI
40)
R141 315-0512-00
RES..FXD.CMPSN:5.1K OHM,5%.0.25W
01121
CB5125
R142
315-0391-00
RES..FXD,CMPSN:390 OHM,5%.0.25W
01121
CB3915
R143 315-0102-00 RES.,FXD,CMPSN:1K OHM,5%.0.25W 01121 CB1025
R144 315-0512-00
RES.,FXD,CMPSN:5.1K OHM,5%,0.25W
01121 CB5125
R146 315-0272-00
RES..FXD,CMPSN:2.7K OHM,5%,0.25W
01121 CB2725
R147
311-1234-00
RES..VAR,NONWIR:50K OHM,20%,0.50W
32997 3386F-T06-503
R148 315-0471-00 RES..FXD,CMPSN:470 OHM,5%,0.25W
01121
CB4715
R154 315-0271-00 RES.,FXD,CMPSN:270 OHM,5%,0.25W
01121
CB2715
R155 315-0241-00
RES.,FXD.CMPSN:240 OHM.5%,0.25W
01121
CB2415
R158
315-0103-00
RES
,FXD.CMPSN:10K OHM,5%,0.25W
01121
CB1035
R159
325-0053-00
RES..FXD.FILM:50 OHM,1%,0.05W
03888
PME50C50R00F
R160 315-0102-00
RES.,FXD,CMPSN;1K OHM,5%.0.25W
01121
CB1025
R161 315-0202-00
RES.,FXD.CMPSN:2K OHM,5%.0.25W
01121
CB2025
R162 315-0101-00 RES,,FXD.CMPSN:100 OHM,5%,0.
25W
01121
CB1015
R164
315-0101-00
RES.,FXD.CMPSN:100 OHM,5%,0.
25W
01121
CB1015
R173 315-0102-00 RES..FXD,CMPSN:1K OHM,5%,0.25W
01121
CB1025
R174 315-0470-00 RES..FXD.CMPSN:47 OHM.5%,0.25W
01121
CB4705
R182 315-0330-00
RES..FXD,CMPSN:33 OHM,5%.0.25W
01121
CB3305
R183 315-0103-00
RES..FXD,CMPSN:10K OHM.5%.0.25W
01121
CB1035
R184
321-0202-00 RES.,FXD,FILM:t 24K
OHM,1%,0 125W
91637
MFF1816G12400F
R185 321-0260-00
RES.,FXD.FILM:4.99K
OHM,1%,0 125W
91637 MFF1816G49900F
R201 315-0223-00
RES.,FXD,CMPSN:22K OHM,5%,0.25W
01121 CB2235
R202
315-0202-00
RES.,FXD,CMPSN:2K OHM,5%,0.25W
01121 CB2025
R203
315-0391-00
RES.,FXO.CMPSN:390 OHM,5%,0 25W
01121
CB3915
R204 315-0392-00 RES.,FXD.CMPSN:3.9K OHM.5%,0.25W
01121
CB3925
R205 315-0471-00 RES.,FXD.CMPSN:470 OHM,5%,0.25W
01121
CB4715
R206 321-0219-00 RES..FXO.FILM;1
87K OHM.1 %,0
1
25W
91637 MFF1816G18700F
R207 321-0173-00 RES..FXD.FILM:619
OHM,1%,0.125W
91637
MFF1816G619R0F
R208
315-0102-00
RES.,FXO.CMPSN:1K OHM,5%,0.25W
01121 CB1025
R209
321-0322-00 RES..FXO,FILM:22.1K
OHM,1%,0.125W
91637 MFF1816G22101F
R210 311-0467-00 HES..VAR.NONWIR:100K OHM,20%.0.50W
11237
300SF
41334
R211 301-0432-00 RES..FXD.CMPSN
4.3K
OHM.5%.0.50W
01121 EB4325
R212 321-0373-00 RES..FXD.FILM:75K
OHM.
1%,0
125W
91637
MFF1816G75001F
R213
321-0373-00 RES..FXD.FILM:75K
OHM.
1%,0
125W
91637 MFF1816G75001F
R214 321-0327-00
RES
.FXD.FILM
:24.9K
OHM.1%,0 125W
91637
MFF1816G24901F
R215 315-0101-00 RES.,FXD,CMPSN:10O OHM.5%.0.
25W
01121
CB1015
R216 321-0327-00 RES.,FXD.FILM:24.9K
OHM.1%,0 125W
91637 MFF1816G24901F
R217 321-0292-00 RES..FXD.FILM:10.7K
OHM,1%,0,125W
91637
MFF1816G10701F
