Behringer HEAVY DISTORTION HD300 Manual

HEAVY DISTORTION HD300
Heavy Metal Distortion Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER HEAVY DISTORTION HD300.
This high-quality effects pedal enables you to produce super thick, tube-like distortion plus
endless sustain. Thanks to its high-performance features you can achieve the typical hard rock
or heavy metal distortion sounds, when playing over a clean amp channel.

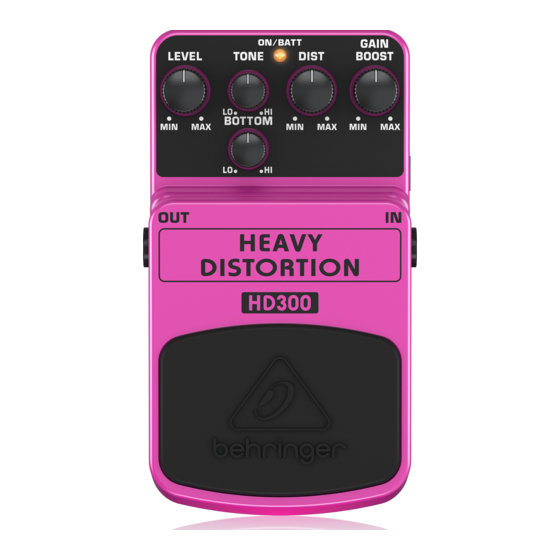

1. Controls
(2)
(1)
(3)
(9)
(1) The LEVEL control adjusts the output level.
(2) The TONE control allows you to shape your overall sound.
(3) The BOTTOM control allows you to boost/cut the low-frequency range.
(4) The DIST(ortion) control adjusts the amount of distortion.
(5) The GAIN BOOST control adjusts the gain for more extreme distortion sounds.
(6) The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
(7) Use the footswitch to activate/deactivate the effect.
(8) Use this ¼" TS IN connector to plug in the instrument cable.
(9) The ¼" TS OUT connector sends the signal to your amp.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery
(not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to
scratch the unit.
◊
The HD300 has no on/off switch. As soon as you insert the plug into the in connector,
the HD300 is on. When not in use, remove the plug from the in connector. This extends
the life of the battery.
The SERIAL NUMBER is located at the underside.
(6)
(5)
(4)
(8)
(7)
