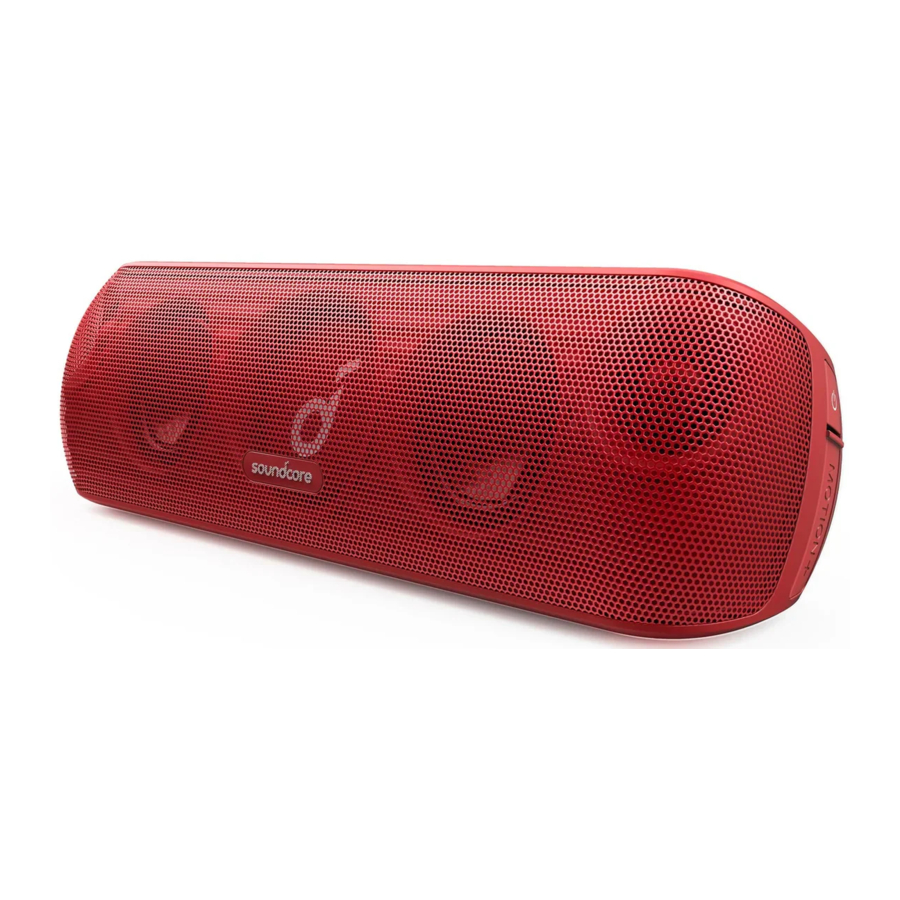

Soundcore Motion+ - Speakers Manual

Safety Instructions

• Avoid dropping.
• Do not disassemble.
• Soundcore Motion+ can be immersed in water up to 1m for up to 30 minutes.
• Avoid extreme temperatures.
• Do not use the device outdoors during thunderstorms.
• Do not use any corrosive cleaner / oil to clean.

What's Included

At a Glance

1. Bass Indicator
   Bass indicator color: White
2. Bass Button
3. Volume - Button
4. Multi-function Button
5. Volume + Button
6. Bluetooth Button
7. Bluetooth Indicator
   Bluetooth indicator color: Blue / White
8. Power Button / Power Indicator
   Power indicator color: Red / White
9. USB Type C Port
10. 3.5mm Audio Input Port

Using Your Soundcore Motion+

1. Turn On / Off


Soundcore Motion+ is equipped with High-Resolution Audio. This specialty gives the speaker a better sound quality by referring to digital processes that allow playback of music using higher sampling rates.

Note: Soundcore Motion+ supports Qualcomm® aptX™.

1. Bluetooth mode


Slowly Flashing Blue (Fade in and out)	Bluetooth Pairing Mode Note: starts to connect to previous connected mobile device when speaker is turned on.
Solid Blu	Connected to a device

Enter True Wireless Stereo Group Mode / Disconnect True Wireless Stereo
Slow Flashing White	True Wireless Stereo Group Mode
Solid White(Secondary speaker) Solid Blue(Primary speaker)	Connected to True Wireless Stereo

With True Wireless Stereo technology, you can pair your Soundcore Motion+ with another Soundcore Motion+ to explore the best sound effects with left and right sound channels separated on both speakers.

Music

Mobile phone

When turned on, Soundcore Motion+ will automatically connect to the last connected device if available. If not, press the Bluetooth button to activate pairing mode.
To pair a different device, press the Bluetooth button to re-enter pairing mode. Then repeat the pairing steps.
Having connection problems? Remove Soundcore Motion+ from your device's Bluetooth history and ensure it's less than 3 feet away. Then try pairing again. To get the best sound quality, make sure there is a clear line of sight between the connected device and your speaker.

2. AUX-In mode


Plugging in an audio cable will automatically switch to AUX mode.
When using AUX mode, control audio playback via the connected device.

Charging your Soundcore Motion+

	Slow Flashing Red	Low Battery
	Solid Red	Charging
Off		Fully Charged

Use the included USB cable to charge your Soundcore Motion+ and make sure it is fully charged before its first use.
USB type C cable only supports charge in, it does not support charge out.
Disconnect your speaker from the charger when fully charged. Do not charge your speaker for extended periods.
When not in use, store your speaker in a cool place.

Specifications

Input: 5 V2 A
Audio output: 30 W
Battery capacity: max.6700mAh
Charging time: Approximately 4 hours(When power is off and the adapter must be at least 5V/2A)
Playtime (varies by volume level and music content): 12 hours
Size: 257 x 79 x 81 mm / 10.1 x 3.1 x 3.2 inch
Weight (without packaging): 1050 g / 37 oz
Bluetooth version: V 5.0
Bluetooth range: 30m/99ft
Sound Frequency Range: 50Hz~40kHz

* Specifications are subject to change without notice.
