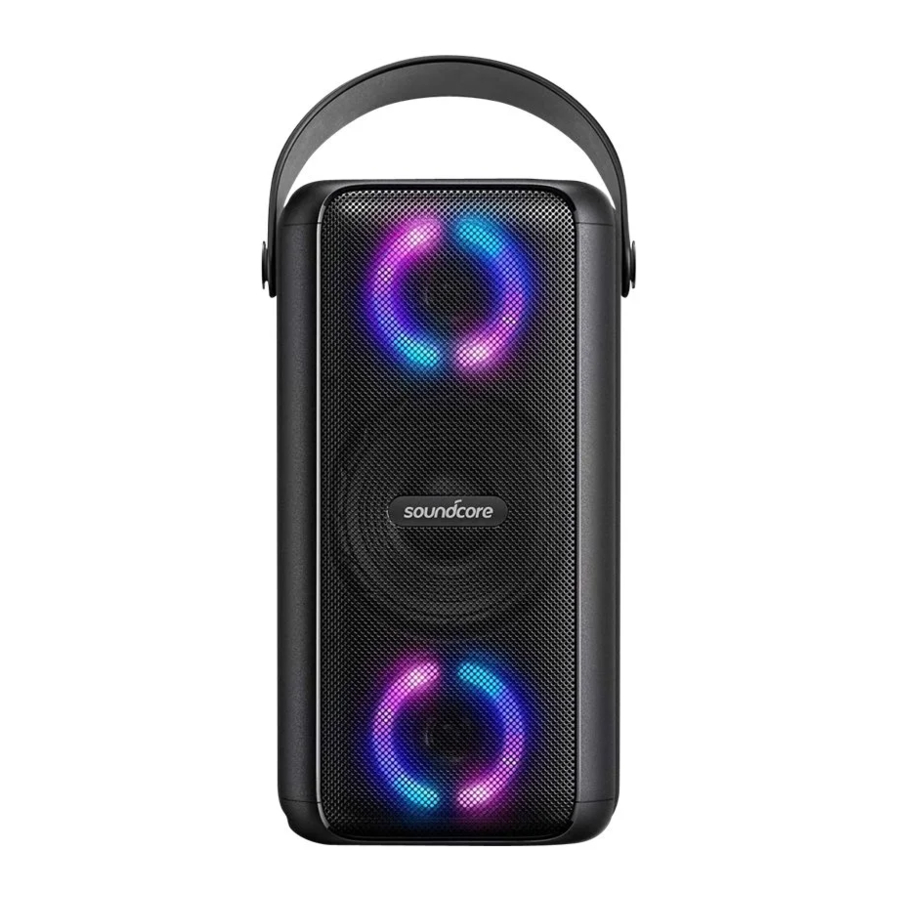

Soundcore Trance / Mega, A3392, A3393 Manual

What's Included

At a Glance

Top Panel

1. • Press and hold for 2 seconds to power on / off.
2. • Press to enter Bluetooth pairing mode.
   • Press and hold to enter True Wireless Stereo (TWS) mode while pairing.
3. (Source input button)
   • Press repeatedly to select source input.
   • Press and hold for 2 seconds to enter Bluetooth pairing mode.
4. • Press to skip to previous / next track.
5. • Press to decrease / increase volume.
6. (Multi-function button)
   • Press to play / pause music.
   • Press to answer or end a call.
7. (Light effect button)
   • Press to turn on / off and adjust the light mode.
8. • Press to turn on or off the BassUP mode.
   • Press and hold for 2 seconds to switch between indoor / outdoor sound mode.

Connectors (A3392)

1. DC IN
   • Connect to the provided power adaptor.
2. USB
   • Connect to a USB storage device.
   • Charge a USB device.
3. AUX
   • Connect to an external audio device through a 3.5mm aux cable (not provided).
4. Guitar / Mic port
   • Connect to a guitar / microphone (not provided).
5. Guitar / Mic volume knob
   • Rotate to adjust guitar / microphone volume.

Connectors (A3393)

1. DC IN
   • Connect to the provided power adaptor.
2. USB
   • Connect to a USB storage device.
   • Charge a USB device.
3. AUX
   • Connect to an external audio device through a 3.5mm aux cable (not provided).

Charging

Charging your Soundcore Speaker

• Fully charge this speaker when using for the first time, which prolongs the lifespan of the built-in battery.

Use the provided power adaptor to charge this speaker.

LED behaviour ()

	Battery level <10%
	Battery level 25% - 50%
	Battery level 50% - 75%
	Battery level 75% - 100%
	Fully charged

Checking Battery Level

Press any button to check the remaining battery level when it is powered on.

LED behaviour ()

	Battery level <10%
	Battery level 10% - 25%
	Battery level 25% - 50%
	Battery level 50% - 75%
	Battery level 75% - 100%

Charging your USB Devices

Use this speaker as an external battery to charge your USB devices.
Connect your USB device to the USB port on the rear of this speaker.

Powering On / Off

Connect the provided power adaptor to the DC IN power jack of this speaker, and then to an AC mains outlet.

Press and hold for 2 seconds to power on or off.

• Built-in battery can be used as power supply of this speaker.
• Unplug the power adaptor from the AC mains outlet when not in use for an extended period of time.
• If this speaker is powered by built-in battery, it will power off automatically after 30 minutes of button inactivity or no audio playback.
• If this speaker is connected to AC power and the built-in battery is fully charged, it will power off automatically after 30 minutes of button inactivity or no audio playback.

Using your Soundcore

Bluetooth Mode

With this speaker, you can enjoy music through your Bluetooth-enabled devices.

LED behaviour ()

Flashing blue	Bluetooth pairing
Steady blue	Bluetooth connected

• Dual Bluetooth Connection: This speaker can pair up to two mobile devices via Bluetooth. This speaker can only play music on one mobile device at the same time.
• To pair with another Bluetooth device, press to re-enter Bluetooth pairing mode.
• To play from another connected device, pause the currently active device first.
• Each time you power on your Soundcore speaker, it will automatically connect to your last connected device if available within the Bluetooth range. If not, press to enter Bluetooth pairing mode.
• You may also control music in the Soundcore App.

True Wireless Stereo (TWS) Mode

With True Wireless Stereo technology, you can pair your Soundcore Trance / Mega with another Soundcore Trance / Mega to explore the best sound effects with left and right sound channels separated on both speakers.

Press and hold on both Soundcore Trance / Mega speakers simultaneously to enter TWS mode.

LED behaviour ()

Flashing white twice	TWS connecting
Steady white for 5 seconds then fade out	TWS connected

• With TWS connected, volume can be controlled at the same time for the two speakers.
• With TWS connected, both speakers can be paired with different smartphones.

USB / Aux Playback

Plug in a 3.5mm audio cable or insert a USB drive, then press to switch between AUX in mode and USB mode.

LED behaviour ( )

Steady green	AUX in mode
Steady white	USB mode

• SoundLine AUX cable sold separately.
• When using AUX mode, control audio playback via the connected device.

Button controls

Press	Play / Pause
Press	Next track
Press	Previous track
	Volume down / up
Press	Turn BassUp on / off
Press and hold for 2 seconds	Switch between Indoor / Outdoor sound modes

Microphone / Guitar Connection (Only available for A3392)

1. Connect your microphone / guitar (not provided) to the MIC / GUITAR port on the rear of this product.
2. Rotate the microphone / guitar volume knob to adjust the microphone / guitar volume.


Beat-Driven Light Show

Press to turn on / off or adjust the light show effects.

Check all available light modes in the Soundcore App.

Soundcore App

Download the Soundcore app for an enhanced product experience.

• Set up Bluetooth connection
• Update firmware
• Indicate battery status
• Switch among multiple light modes ( Default light scenario is "Party")
• Switch between indoor and outdoor sound modes
• Light DJ mode to support light and sound variation
• Enjoy party games
• Switch BassUP mode
• Remotely control the volume and play / pause

Specifications

Specifications are subject to change without notice.

Customer Service

For FAQs and more information, please visit https://www.soundcore.com/ .

Important Safety Instructions

• Please read this user manual carefully and save it for future reference.
• Do not place naked flame sources, such as lighted candles, on or near the product.
• Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Protect the power supply or cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the product.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this product during lightning storms or when unused for long periods of time.
• The maximum ambient temperature during use of the product must not exceed 45°C.
• Suitable for safe use in tropical and non-tropical areas.
• Only suitable for safe use in areas below 2000m above sea level.
• Do not make unauthorized alterations to the product; doing so may compromise safety, regulatory compliance, system performance, and may void the warranty.
• Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way.
• The product contains battery pack, so should not be exposed to excessive heat such as sunshine, fire or the like.
