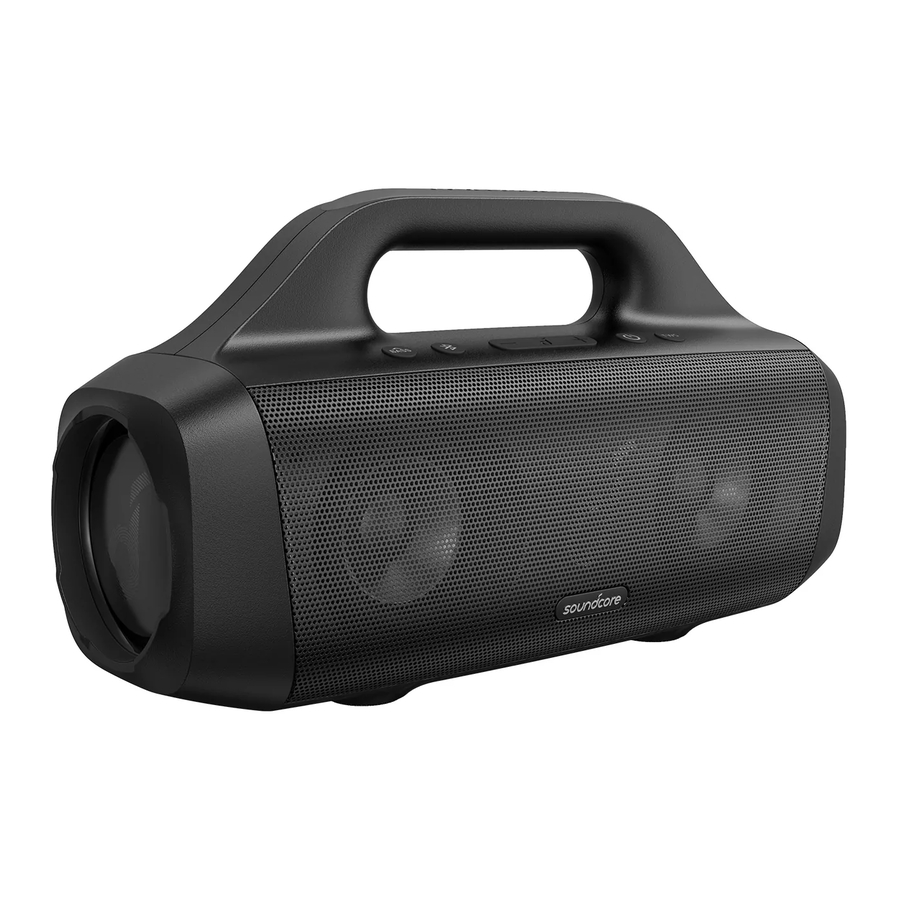

Soundcore Motion Boom Outdoor Speaker Manual

At a Glance

Parts of the Device

Bass button
Bluetooth button
Volume down button
Multi-function button
Volume up button
Power button
TWS button
USB-A port for charging out
USB-C port for charging in

Charging

Charge your Unit

information

Use a certified USB-C cable and charger to prevent any damage.
Fully charge this speaker before the first use to prolong the lifespan of the built-in battery.
Disconnect this speaker from the charger when fully charged. Do not charge for extended periods.

Charging - Charging your Unit

	Flashing red	Low battery
	Steady red	Being charged
	Steady white	Fully charged

Charge your USB Devices

Charging - Charging your USB devices
Charge your USB devices through the USB-A charging port.

Powering On/Off

Press and hold for 2 seconds	Steady white	Power on
Press and hold for 2 seconds	Light off	Power off

This speaker will power off automatically after 30 minutes if no device is connected.

Using Your Device

Bluetooth Mode

With this speaker, you can enjoy music through your Bluetooth-enabled devices.
Using Your Device - Bluetooth pairing mode

	Press	Enter Bluetooth pairing mode
	Flashing blue	Bluetooth pairing
	Steady blue	Bluetooth connected

Each time you power on your Soundcore speaker, it will automatically connect to your last connected device if available within the Bluetooth range. If not, press the Bluetooth button to enter Bluetooth pairing mode.

TWS (True Wireless Stereo) Mode

Two identical Soundcore speakers can pair up with each other for true wireless stereo sound. In TWS mode, connect either one of the two speakers with your mobile device so that both speakers play the same audio (one as L channel and the other as R channel).

Using Your Device - TWS pairing mode
On both Soundcore speakers, press the TWS button to enter TWS pairing mode.

The speakers start searching for each other to establish the TWS connection.
The TWS LED indicator on both speakers will flash white.
Once successfully connected, the TWS LED indicator on both speakers will become steady white.

TWS	Press	Enter TWS pairing mode
	Flashing white	TWS pairing
	Steady white	TWS connected

To exit the TWS mode, press and hold the TWS button for 2 seconds.

Button Controls


	Press	Play/Pause
	Press twice	Next track
	Press three times	Previous track
	Press or press and hold	Adjust volume
	Press	Turn BassUp on/off

	Press	Answer/End a call
	Press	Answer a second incoming call and put the current call on hold
	Press and hold for 2 seconds	Reject an incoming call
	Press and hold for 2 seconds	Switch between a call on hold and an active call

	Press and hold for 2 seconds	Activate Siri or other voice assistant software

Soundcore App

Using the Soundcore App

Download the Soundcore app to enhance your experience.

Product information: Check the product name and software version, or read the user manual.

Firmware update: You will be informed once a new version of firmware is detected when you connect the speaker with the app.

Battery status: Indicates the remaining battery level of your speaker.

Volume control: Adjust the volume level via the app without pressing the buttons on the speaker.

EQ settings: There are 4 EQ settings you can choose from in the app to optimize your experience while enjoying different music genres.

Soundcore Signature: Normal EQ mode with well-balanced sound.
Voice: Voices stand out more clearly from other ambient sounds.
Treble Boost: High frequencies are enhanced.
Balance: No enhancement for high-frequency and low-frequency sounds.

Set Auto-power off time: Set an auto-power off time (5/10/30/60 minutes, 30 minutes by default), the speaker will automatically power off when time is up.

Voice prompt: Mute or restore the voice prompt while powering on/off.

Specifications

Specifications are subject to change without notice.

DC power input	5V 2.1TA
Battery capacity	10000 mAh
USB output	5V=1 A
Audio output power	30W
Charging time	4 hours
Playtime (varies by volume level and music content)	Up to 24 hours
Waterproof level	IPX7
Bluetooth version	5.0
Bluetooth range	20m/ 66 ft
