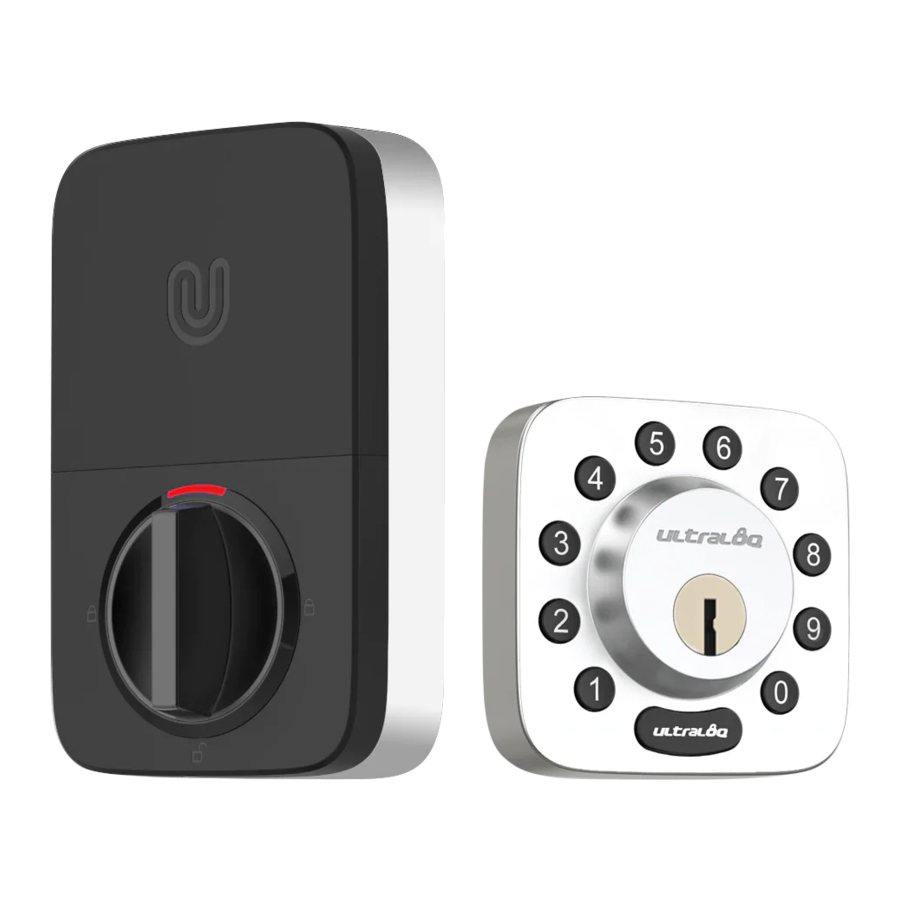

U-Tec Ultraloq U-Bolt, U-Bolt-BK - Smart Lock Manual

Important Notes

• Do not use a power drill for installation.
• Install and test the lock with the door open to avoid being locked out.
• Please read all the instructions before contacting customer support.
• Please contact customer support before returning the product to the store.
• DO NOT install the batteries before installing the lock!
• Follow the instructions in sequential order!
• This lock is designed for the following operating temperatures:
  Outside Lock Body: -31°F(-35°C) to 158°F(70°C)
  Inside Lock Body: 14°F(-10°C) to 131°F(55°C)
• Please must use AA Alkaline Battery and don't use Lithium Battery or Rechargeable Battery.

Statements

To ensure the best service, please register your account at www.u-tec.com/register.html

Packing List

Installation Guide

Installation Video

Please scan this QR code to watch the easy step by step installation video before attempting to install Ultraloq U-Bolt.
Or you can also view the webiste directly.
www.u-tec.com/Iock/U-boIt/guide

Preparing Door

Check the door's dimensions.

1. Measure to confirm that the door is between 1³/₈"- 1³/₄" (35 mm- 45 mm) thick.
2. Measure to confirm that the diameter of the hole is 2¹/₈" ( 53 mm)
3. Measure to confirm that the backset is either 2³/₈"or 2³/₄" (60 mm or 70 mm).
4. Measure to confirm that the diameter of the hole in the door edge is 1" (25 mm).
5. Measure to confirm the depth of the hole in the frame is at least 1" (25 mm).

If you have a new door, please drill the holes according to Drill Template.

Installing Bolt and Strike

1. Install Bolt into the door. Make sure the UP icon goes up.
   Note: Bolt isset for 2³/₈" backset initially. It can be adjusted to 2³/₄" if needed.
   To adjust it please make sure the bolt is retracted, then, press it, twist and pull it or push it to your desired length.
2. Install Strike into the door frame.

Installing Exterior Assembly

1. Keep Bolt retracted and the cylinder tailpiece horizontal. Install Exterior Assembly. Please do not insert the mechanical key during installation.
2. Align its two sticks with two holes on Bolt. The cable goes through the hole below Bolt.

Installing Interior Assembly Mounting Plate

1. Route the cable through the hole on Interior Assembly Mounting Plate.
2. Secure Interior Assembly Mounting Plate to Exterior Assembly using Screws D.

Installing Interior Assembly

1. Remove the battery cover of the Interior Assembly.
2. Insert the connector of the cable to the socket on Interior Assembly. Press the connector in firmly until it is completed seated.

3. Rotate the knob and keep it in a vertical position to stay unlocked.

4. Attach Interior Assembly to Mounting Plate and tighten 2 Screws E.


Installing the Batteries and Performing the Door Handing Process

This step will teach your lock the orientation of your door and is crucial to lock operation.

1. Rotate the knob and keep it in a horizontal position to stay locked.

2. Insert 4 AA Alkaline Batteries.


Note: Any fingerprint or code can unlock U-Bolt Pro in Factory Default Mode.

3. Install battery cover.

Need Help?
For technical documents and more
Please visit support.u-tec.com
