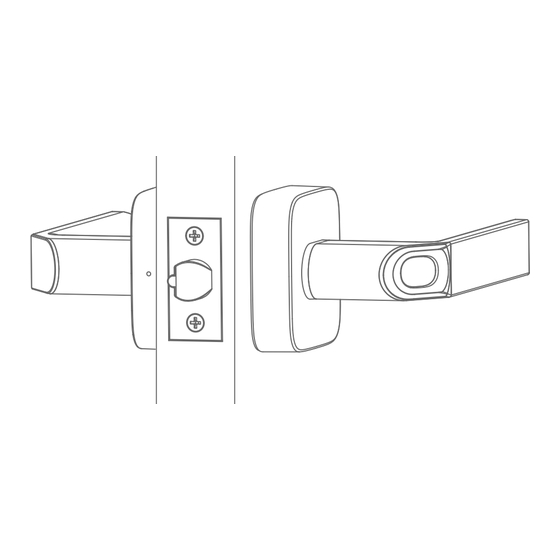

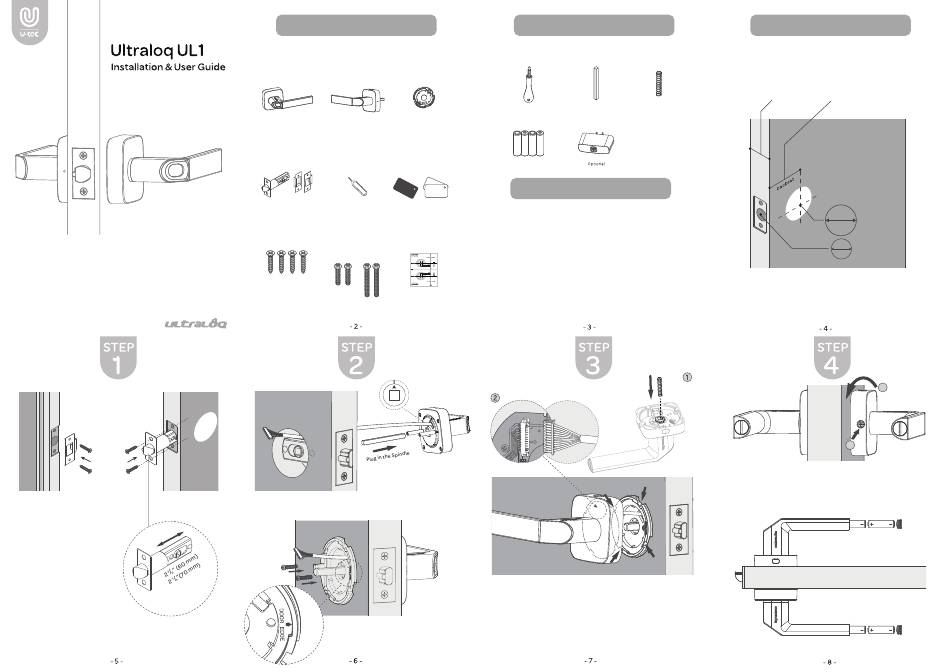

U-tec Ultraloq UL1 Installation & User Manual

(V1.2)
www.u-tec.com/lock/ul1/installation
Visit this link to watch the installation video guide
Screw A
Angle faces jamb
1. Insert Latch and Strike.
Please align the Latch
with the door's edge.
2. Tighten 2 Screw A on
each side to fix the
position.
Adjust the latch
basket length
What's in the Box
Internal Internal Assembly
External
Assembly Mounting Plate
Assembly
Latch & Strike Reset Needle Key Fob
Admin
Screw A Screw B Drill Template
For Door Thickness Between:
1.30 ''~ 1.65 '' 1.65 ''~ 1.97 ''
33 ~ 42mm 42 ~ 50mm
Please note the arrow
points down for left
handed installation.
1. Install External Assembly. Plug in the Spindle, Align its two sticks with
two holes on the latch. Hole's arrow should be directed as illustrated.
2. Install Internal Mounting Plate.
Tighten 2 Screw B simultaneously to
fix the position.
What's in the Box
Screwdriver Spindle
Bridge
Battery
User
May not be included
for some regions
Notes
· Install and test the lock with door open to avoid being
locked out.
· Please follow the instruction in order.
· Need Help? Please contact customer support before
returning the product.
Visit www.u-tec.com/support
Email support@u-tec.com
· Opreating temperature:
External Assembly: -4 °F ~ 149 °F (-20 °C ~ 65 °C)
Internal Assembly: 14 °F ~ 131 °F (-10 °C ~ 55 °C)
1. Install the Spring into Internal Assembly.
2. Loose the side srew, and push the metal block all the way
into the slot.
3. On Internal Assembly, connect the wire to the receiver.
4. Align and insert the Spindle into the hole.
5. Match and connect the gaps between Internal Mounting
Plate and Internal Assembly. Internal Assembly should be
tilted around 30 degrees to click the gaps.
Preparing Door
Please check the door's dimensions.
Spring
/
1 5 "~2 "
16
(33~50 mm)
If you are installing UL1 on a new door,
please refer to the Drill Template.
Install this Spring.
1. Turn Internal Assembly to the horizonal level.
2. Tighten the side screw.
3. Use a tool (e.g. coin) to open battery cap
(turn counterclockwise) and insert two AA batteries.
/
2 3 " (70 mm)
4
OR
2 / "
3 (60 mm)
8
2 / "
1
8
/
2 1 " (53 mm)
53 mm 8
1"
1" (25 mm)
25 mm
1
2
