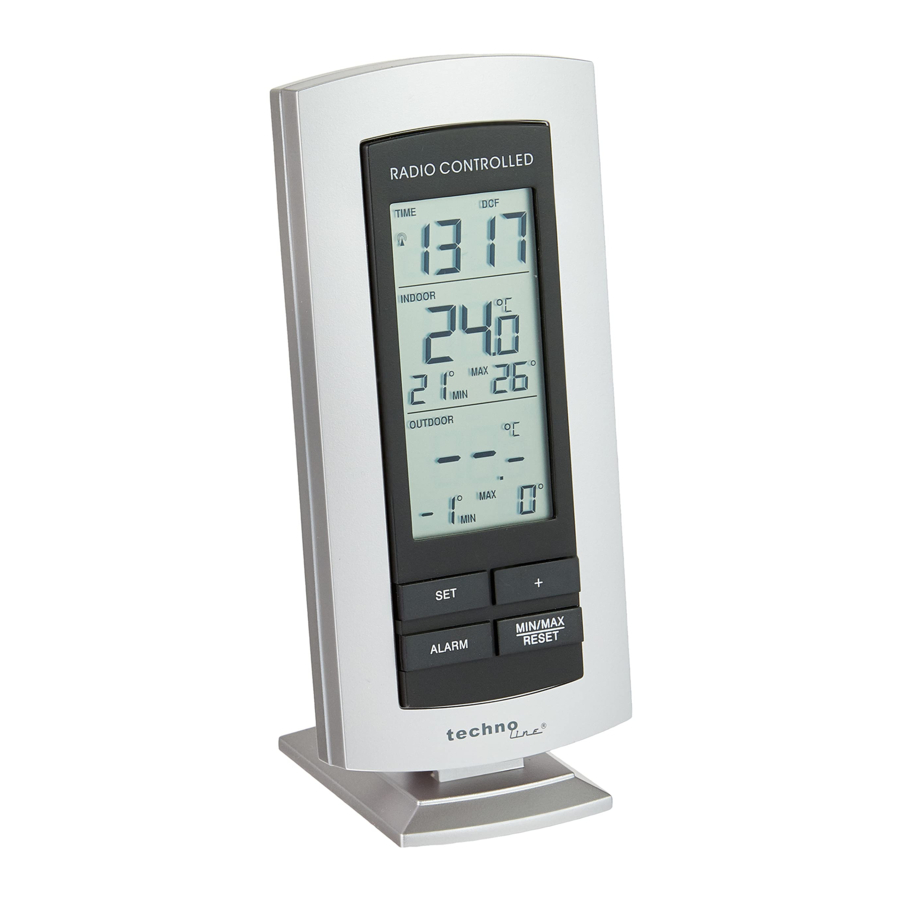

Technoline WS 9140 - TEMPERATURE STATION Manual

FEATURES

The Temperature Station

• DCF-77 Radio controlled time function with manual time setting options
• DCF time reception ON/OFF
• 24 hour display
• Alarm function with snooze
• Temperature display in degree Celsius (°C)
• Indoor and outdor temperature with MIN/MAX records
• Manual reset of MIN/MAX records
• Wireless transmission at 433 MHz
• Signal reception intervals at 4 seconds
• Low battery indicator
• Wall mounting or table standing (foldout stand)

The Outdoor Temperature Transmitter

• Remote transmission of outdoor temperature to temperature station by 433 MHz signals
• Shower proof casing
• Wall mounting and table-standing

SETTING UP

Note: This temperature station receives only one outdoor transmitter.

1. First, insert the batteries into the temperature transmitter. (see "Install and replace batteries in the temperature transmitter").
2. Immediately after and within 30 seconds, insert the batteries into temperature station (see "Install and replace batteries in the Temperature station"). Once the batteries are in place, all segments of the LCD will light up briefly. Following the time as 0:00 will be displayed. If these are not displayed after 60 seconds, remove the batteries and wait for at least 30 seconds before reinserting them.
3. After inserting the batteries, the temperature station will start receiving data from the transmitter. The outdoor temperature and the signal reception icon should then be displayed on the temperature station. If this does not happen after 3 minutes, the batteries will need to be removed from both units and reset from step 1.
4. In order to ensure sufficient 433 MHz transmission however, this should under good conditions be a distance no more than 100 meters between the final position of the temperature station and the transmitter (see notes on "Mounting" and "433 MHz Reception").
5. Once the remote temperature has been received and displayed on the temperature station, the DCF time (radio controlled time) code reception is automatically started. This takes typically between 3-5 minutes in good conditions.

Note:
Daily DCF reception is done at 1:00, 2:00 and 3:00 every day. If the reception at 3:00 is not successful, then at 4:00 and 5:00 there are other tries, until one is successful. If the reception at 5:00 is still not successful, then the next try takes place at 1:00 next day.

If reception is successful, the received time will override the manually set time. (Please refer also to notes on "DCF-77 Radio Controlled Time" and "Manual Time Setting")

HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE STATION

The temperature station uses 2 x AA, IEC LR6, 1.5V batteries. When batteries will need to be replaced, the low battery icon will appear on the LCD.

To install and replace the batteries, please follow the steps below:

1. Lift up the battery compartment cover.
2. Insert batteries observing the correct polarity (see marking).
3. Replace compartment cover.

HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER

The temperature transmitter uses 2 x AAA, IEC LR03, 1.5V battery.

To install and replace the batteries, please follow the steps below:

1. Remove the battery compartment cover at the back of the transmitter.
2. Insert the batteries, observing the correct polarity (see marking).
3. Replace the battery compartment cover on the unit.

Note:
In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is because a security code is assigned by the transmitter at start-up and this code must be received and stored by the Temperature station in the first 3 minutes of power being supplied to it.

BATTERY CHANGE

It is recommended to replace the batteries in all units regularly to ensure optimum accuracy of these units (Battery life See Specifications below).

FUNCTION KEYS

Temperature station

The temperature station has four easy to use function keys.

SET key

• Press the key to enter manual setting modes: Time zone, Time reception ON/OFF and Manual time
• Stop the alarm
• Exit manual setting modes

+ key

• To make adjustment for various settings
• Stop the alarm

ALARM key

• Enter the alarm setting mode
• Switch the alarm ON/ OFF
• Stop the alarm

MIN/MAX RESET key

• Press and hold to reset the MIN/MAX temperature records
• Activate the snooze
• Exit manual setting modes

LCD SCREEN AND SETTINGS

* When the outdoor signal is successfully received by the temperature station, this icon will be switched on. (If not successful, the icon will not be shown in LCD) So user can easily see whether the last reception was successful (icon on) or not (icon off).

For a better display clarity, the LCD screen is split into 3 sections.

Section 1 - TIME AND ALARM

• In normal mode display of radio controlled time
• A reception tower symbol will be shown indicating that the DCF-77 time signal is scanned for (flashing) or received (steady).
  Note: The symbol will not be shown when radio time reception is not successful or when time reception function is turned off.
• In normal display, the alarm icon will be shown when the alarm is turned on. Or when the snooze function is activated, the alarm icon will be flashing.

Section 2 - INDOOR TEMPERATURE

• Display the current indoor temperature and indoor MIN/MAX records
• Display of low battery indicator (temperature station)

Section 3 - OUTDOOR TEMPERATURE

• Display the current outdoor temperature and outdoor MIN/MAX records
• A signal reception symbol will be shown indicating that receiver is receiving outdoor temperature
• Display of low battery indicator (transmitter)

MANUAL SETTINGS

The following manual settings can be done in the setting mode:

• Time zone
• Time reception DCF ON/OFF
• Manual time

Press and hold the SET key for about 3 seconds to advance to the setting mode:

TIME ZONE SETTING

The time zone default is "0" hour. To set a different time zone:

1. The current time zone value starts flashing.
2. Use the+ key to set the time zone. The range runs from 0, -1, -2...-12, 12, 11, 10... 2, 1, 0, in consecutive 1-hour intervals.
3. Confirm with theSET key and enter the Time reception On/Off setting.

TIME RECEPTION ON/OFF SETTING

In area where reception of the radio-controlled time (DCF time) is not possible, the time reception function can be turned OFF. The clock will then work as a normal Quartz clock.
(Default setting is ON).

1. The digit "ON" digit will start flashing on the LCD.
2. Use the+ key to turn OFF the time reception function if necessary.
3. Confirm with the SET key and enter the Manual time setting.

Note:
If the Time Reception function is turned OFF manually, the clock will not attempt any reception of the radio-controlled time (DCF time) as long as the Time Reception OFF function is activated. The Time Reception icon and the DCF icon will not be displayed on the LCD.

MANUAL TIME SETTING

In case the temperature station is not able to detect the radio-controlled time (DCF time) signal (disturbances, transmitting distance, etc.), the time can be manually set. The clock will then work as a normal Quartz clock.

To set the clock:

1. The hour digits start flashing in the time display section.
2. Use the+ key to adjust the hours and then press SET key to go to the minute setting.
3. The minute will be flashing. Press the+ key to just the minutes.
4. Confirm with the SET or MIN/MAX RESET key and exit the setting mode.

Note:
The unit will still try to receive the signal despite a manual setting. When the signal is received, the manually set time will automatically be replaced by the received time. During reception attempts, the DCF tower icon will flash. If reception has been unsuccessful, the DCF tower icon will not appear but reception will still be attempted.

ALARM SETTING

To set alarm:

1. Press and hold ALARM for about 3 seconds until the alarm time display flashes.
2. The hour digit will be flashing and the alarm icon will appear. Press the+ key to adjust the hour.
3. Press ALARM button once and minute digit will be flashing. User shall then press + button to set the minute.
4. Press ALARM button once to confirm the setting.
5. To activate/ deactivate the alarm function, press the ALARM button once. The display of the alarm icon represents that the alarm is "ON".

Note: The duration of alarm sounding is 85 seconds

TO ACTIVATE THE SNOOZE FUNCTION AND STOPPING THE ALARM

1. When the alarm is sounding, press the MIN/MAX RESET key to activate the snooze function. The alarm will stop and re-activate after the snooze interval of 10 minutes.
2. To stop the alarm completely, press any keys other than the MIN/MAX RESET key.

INDOOR TEMPERATURE AND MIN/MAX RECORDS

The indoor temperature and indoor MIN/MAX records are displayed on the second section of the LCD.

Note: The MIN/MAX indoor temperature range is -9ºC to + 38ºC with 1°C resolution.

OUTDOOR TEMPERATURE AND MIN/MAX RECORDS

The outdoor temperature and outdoor MIN/MAX records are displayed on the last section of the LCD.

Note: The MIN/MAX outdoor temperature resolution range is -40ºC to + 60ºC with 1°C resolution.

RESETTING THE INDOOR AND OUTDOOR MIN/MAX RECORDS

Note: All the MIN/MAX records will be reset at the same time.

1. In normal display mode, press and hold the MIN/MAX RESET key for 3 seconds. This will reset the indoor and outdoor MIN/MAX temperatures.

LOW BATTERY INDICATOR

Low battery indicator is displayed on the LCD when the batteries require changing.

433 MHz RECEPTION CHECK

The temperature station should receive the temperature data within 3 minutes after setup. If the temperature data is not received 3 minutes after setting up (not successfully continuously, the outdoor display shows "- - -" ), please check the following points:

1. The distance of the temperature station or transmitter should be at least 1.5 to 2 meters away from any interfering sources such as computer monitors or TV sets.
2. Avoid positioning the temperature station onto or in the immediate proximity of metal window frames.
3. Using other electrical products such as headphones or speakers operating on the same signal frequency (433 MHz) may prevent correct signal transmission and reception.
4. Neighbours using electrical devices operating on the 433 MHz signal frequency can also cause interference.

Note:
When the 433 MHz signal is received correctly, do not re-open the battery cover of either the transmitter or temperature station, as the batteries may spring free from the contacts and force a false reset. Should this happen accidentally then reset all units (see Setting up above) otherwise transmission problems may occur.
The transmission range is about 100 m from the transmitter to the temperature station (in open space). However, this depends on the surrounding environment and interference levels. If no reception is possible despite the observation of these factors, all system units have to be reset (see Setting up).

POSITIONING THE TEMPERATURE STATION

The temperature station may be hung onto wall easily or free standing.

To wall mount

Choose a sheltered place. Avoid direct rain and sunshine. Before wall mounting, please check that the outdoor temperature values can be received from the desired locations.

1. Fix a screw (not supplied) into the desired wall, leaving the head extended out the by about 5mm.
2. Remove the stand from the temperature station by pulling it away from the base and hang the station onto the screw. Remember to ensure that it locks into place before releasing.

Free standing

With the foldout stand, the temperature station can be placed onto any flat surface.

POSITIONING THE TEMPERATURE TRANSMITTER

The outdoor sensor may be hung onto wall easily or used free standing.

To wall mount

Choose a sheltered place. Avoid direct rain and sunshine. Before wall mounting, please check that the outdoor temperature values can be received from the desired locations.

Relocate the transmitter by moving it slightly to better receive the signal.

1. Fix a screw (not supplied) into the desired wall, leaving the head extended out the by about 5mm.
2. Hang the station onto the screw. Remember to ensure that it locks into place before releasing.

Free standing

With the standing foot, the outdoor sensor can be placed onto any flat surface.

CARE AND MAINTENANCE

• Extreme temperatures, vibration and shock should be avoided as these may cause damage to the unit and give inaccurate forecasts and readings.
• Precautions shall be taken when handling the batteries. Injuries, burns, or property damage may be resulted if the batteries are in contact with conducting materials, heat, corrosive materials or explosives. The batteries shall be taken out from the unit before the product is to be stored for a long period of time.
• Immediately remove all low powered batteries to avoid leakage and damage. Replace only with new batteries of the recommended type.
• When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or scouring agents as they may mark the LCD and casings.
• Do not submerge the unit in water.
• Special care shall be taken when handling a damaged LCD display. The liquid crystals can be harmful to user's health.
• Do not make any repair attempts to the unit. Return them to their original point of purchase for repair by a qualified engineer. Opening and tampering with the unit may invalidate their guarantee.
• Never touch the exposed electronic circuit of the device as there is a danger of electric shock should it become exposed.
• Do not expose the units to extreme and sudden temperature changes, this may lead to rapid changes in forecasts and readings and thereby reduce their accuracy.

SPECIFICATIONS

Recommended operating temperature range: 0ºC to 50ºC

Temperature measuring range:
Indoor: -9,9ºC to +37,8ºC with 0,1ºC resolution ("OF.L" displayed if outside this range)
Outdoor: -49,9ºC to +69,9ºC with 0,1ºC resolution ("OF.L" displayed if outside this range)

Indoor temperature checking interval: every 60 seconds

Outdoor data reception: every 60 seconds

Transmission frequency: 433 MHz

Maximum transmission power: 5.66 dBm

Power consumption:
Temperature station: 2 x AA, IEC, LR6, 1.5V
Temperature transmitter: 2 x AAA, IEC, LR03, 1.5V
Battery life cycle (Alkaline batteries recommended): Approximately 24 months

Dimensions (L x W x H):
Temperature station: 73,4 x 25,2 x 158 mm
Temperature transmitter: 40 x 25 x 98 mm
