Technoline WS9132 Manual

Technoline WS9132 Manual

Barometer temperature humidity clock
Hide thumbs Also See for WS9132:

Advertisement

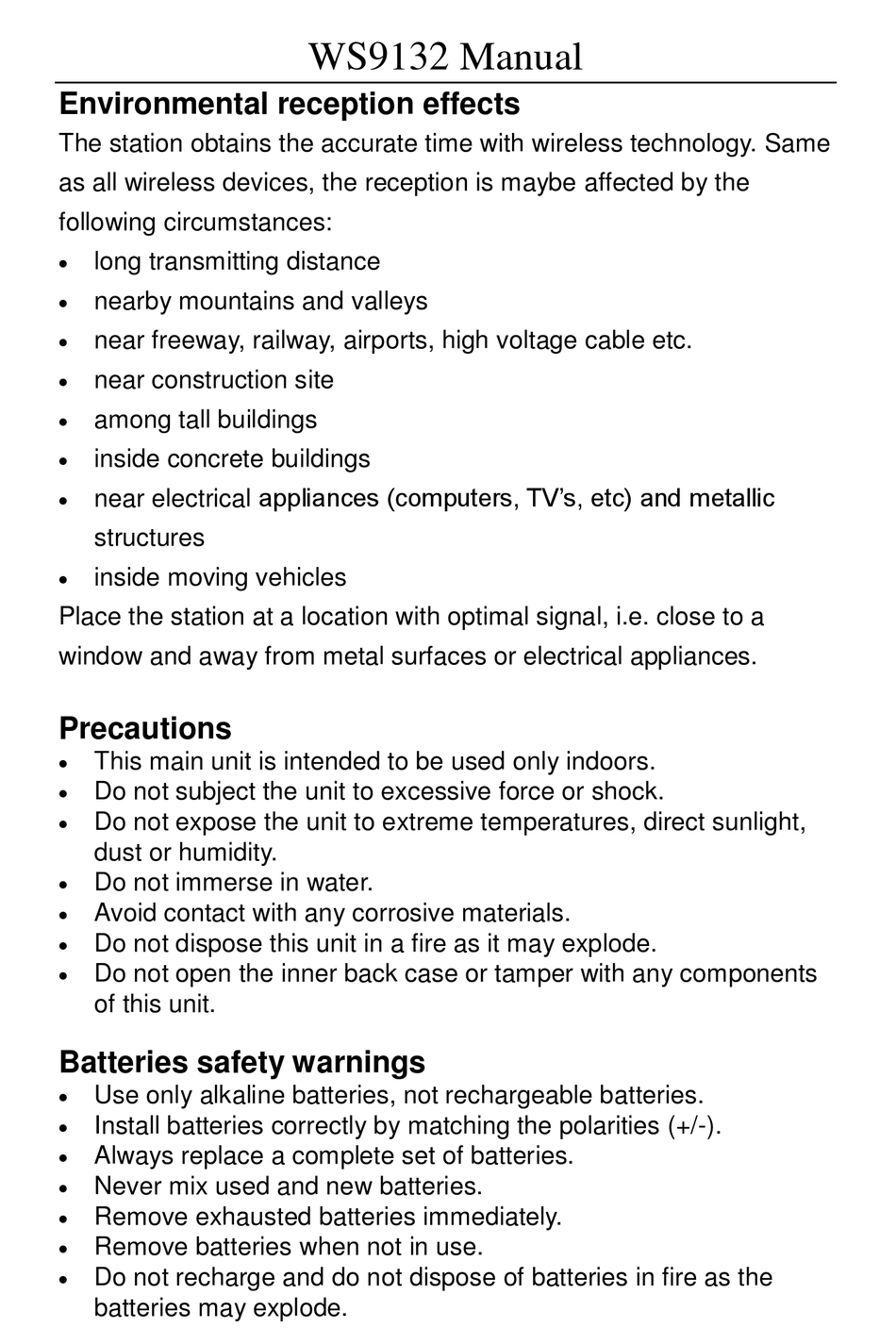

Environmental reception effects

The station obtains the accurate time with wireless technology. Same
as all wireless devices, the reception is maybe affected by the
following circumstances:
long transmitting distance
nearby mountains and valleys
near freeway, railway, airports, high voltage cable etc.
near construction site
among tall buildings
inside concrete buildings
near electrical appliances (computers, TV's, etc) and metallic
structures
inside moving vehicles
Place the station at a location with optimal signal, i.e. close to a
window and away from metal surfaces or electrical appliances.

Precautions

This main unit is intended to be used only indoors.
Do not subject the unit to excessive force or shock.
Do not expose the unit to extreme temperatures, direct sunlight,
dust or humidity.
Do not immerse in water.
Avoid contact with any corrosive materials.
Do not dispose this unit in a fire as it may explode.
Do not open the inner back case or tamper with any components
of this unit.

Batteries safety warnings

Use only alkaline batteries, not rechargeable batteries.
Install batteries correctly by matching the polarities (+/-).
Always replace a complete set of batteries.
Never mix used and new batteries.
Remove exhausted batteries immediately.
Remove batteries when not in use.
Do not recharge and do not dispose of batteries in fire as the
batteries may explode.
WS9132 Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS9132 and is the answer not in the manual?

Questions and answers

Summary of Contents for Technoline WS9132

  • Page 1 WS9132 Manual Environmental reception effects The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:  long transmitting distance  nearby mountains and valleys  near freeway, railway, airports, high voltage cable etc.
  • Page 2 WS9132 Manual  Ensure batteries are stored away from metal objects as contact may cause a short circuit.  Avoid exposing batteries to extreme temperature or humidity or direct sunlight.  Keep all batteries out of reach from children. They are a choking hazard.
  • Page 3 WS9132 Manual Features:  DCF Radio controlled time function  12/24 hour format  Daily Alarm Function  Snooze function (OFF or 1~60min)  Low battery indicator  Maximum /minimum value record of temperature and humidity  Temperature in °C or °F ...

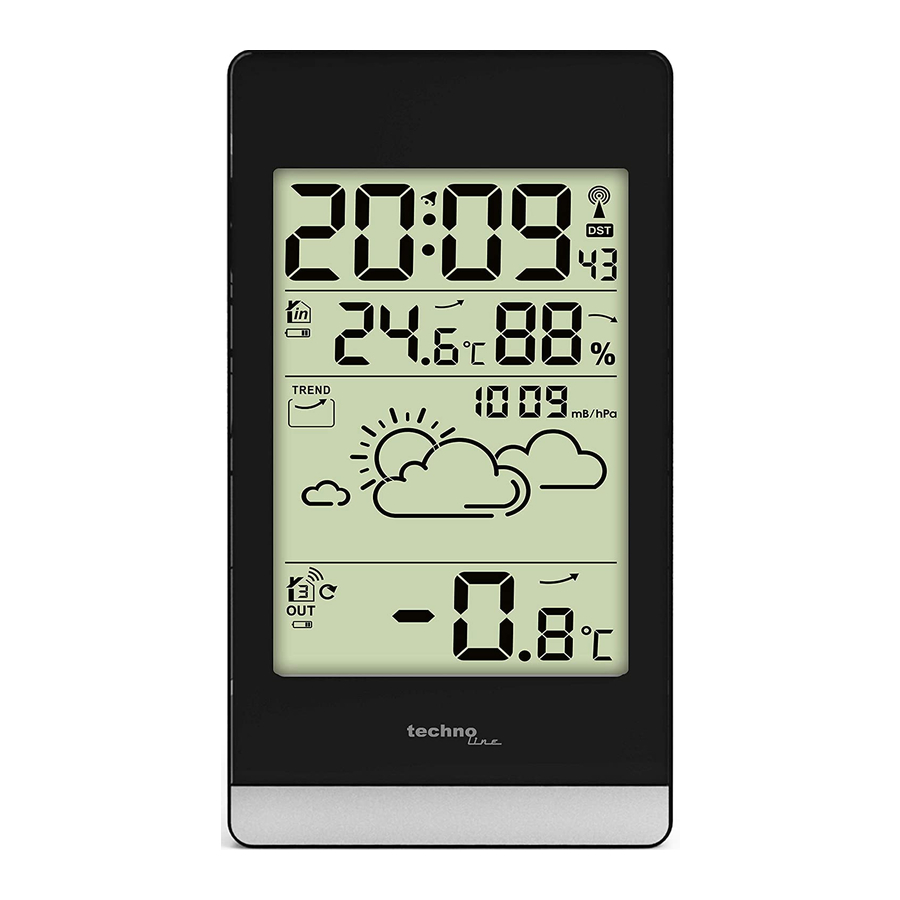

  • Page 4 WS9132 Manual Weather Station Appearance...
  • Page 5 WS9132 Manual Part A – Weather station A1: Time A2: Indoor temperature and humidity A3: Ice alert icon A4: Radio Controlled Icon A5: DST icon A6: Weather forecast pattern A7: Outdoor temperature A8: Operation buttons A9: Stand cover A10: Battery door Part B –...
  • Page 6 WS9132 Manual  After receiver has created a connection to the outdoor remote sensor, After 3 minutes it will enter the Radio control time receive mode. Reception of the DCF signal:  The clock will automatically search the DCF (radio controlled time) signal after 3 minutes of any restart or changing of new fresh batteries.
  • Page 7 WS9132 Manual interference, such as televisions or computer monitors  Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.  During the DCF reception mode, only the “...
  • Page 8 WS9132 Manual barometric pressure data according to the local relative air pressure. If not changed, the value corresponds to the absolute air pressure.  Press the “ ” button to confirm your setting, the weather forecast pattern starts to flash. Now use “+” and “-” buttons to set the weather forecast pattern according to the current weather..
  • Page 9 WS9132 Manual Please note:  If there is no valid operation within 20 seconds, the station will automatically return to normal time mode from the alarm time set mode.  The alarm will sound for 2 minutes if you do not deactivate it by pressing any button.
  • Page 10 WS9132 Manual  If the Weather Station failed to receive transmission from outdoor sensor (“- -.-”display on the LCD), press and hold the “CH” button for 3 seconds to receive transmission manually. RF icon “ ” flashes on the LCDof the Weather Station to receive the remote sensor.
  • Page 11 WS9132 Manual  If the temperature reading is below ranges, the LL.L will be displayed. If the temperature reading is above ranges, the HH.H will be displayed. Trend displaying  The current temperature/humidity/barometric pressure and the temperature/humidity/barometric pressure trend are shown in the LCD display.
  • Page 12 WS9132 Manual  The weather station displays the following weather symbols: S u n n y S l i g h tl y c l o u d y C l o u d y R a i n y S n o w ...
  • Page 13 WS9132 Manual RF receiving distance: 30meter (free field) Air pressure measuring range: 850-1100hpa Air pressure change accuracy: ±5hpa...
