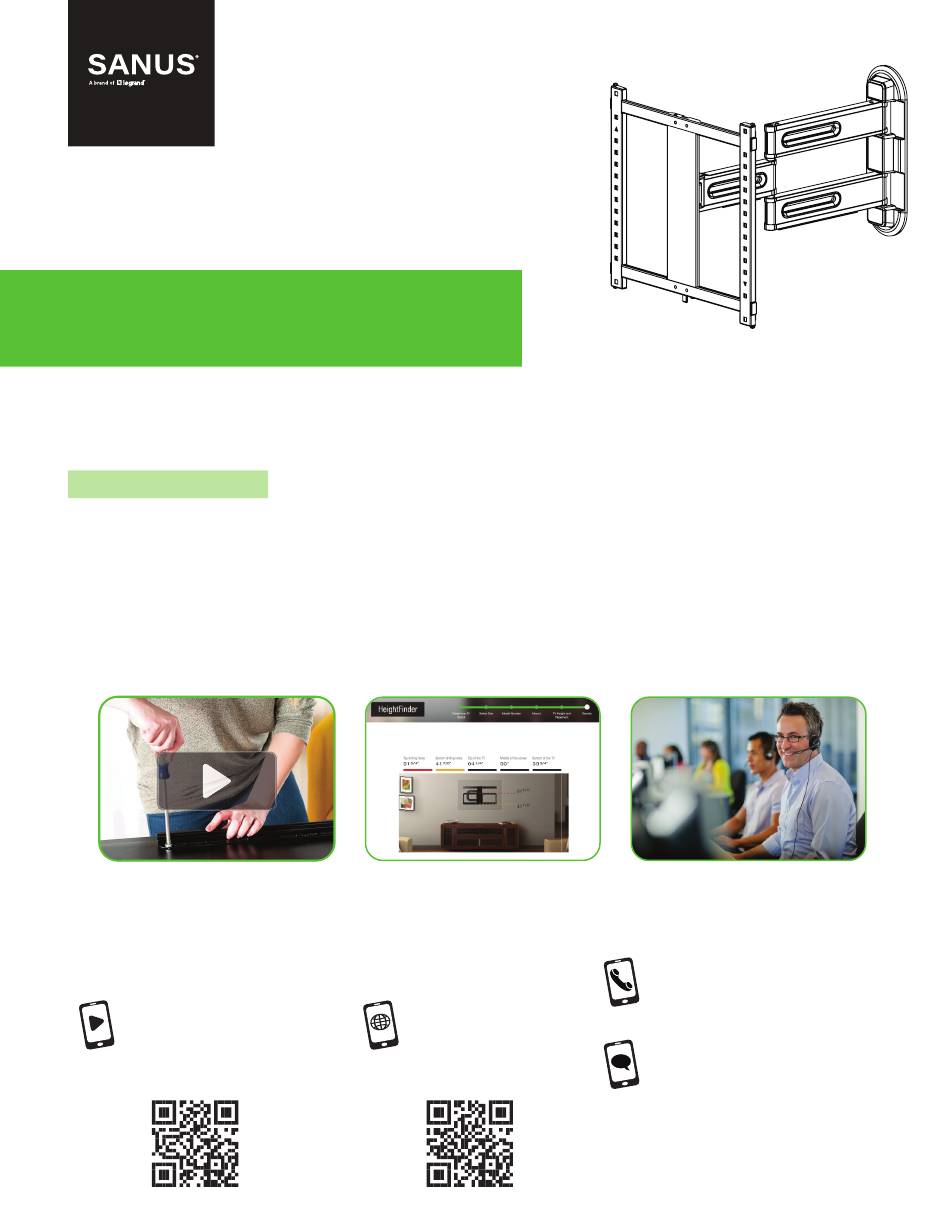

VMF 822- B 3

ADVANCED FULL-MOTION

TV WALL MOUNT

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS

Texte français page 14

NOUS POUVONS VOUS AIDER !

Want to watch a video that shows

how easy this DIY project will be?

Souhaitez-vous regarder une vidéo

démontrant la facilité de ce projet

de bricolage ?

Watch it now at:

Regardez-la maintenant sur :

SANUS.com/3216

Need help?

Do you have a question about the SANUS VMF822-B3 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND SANUS VMF822-B3

Page 1 VMF 822- B 3 ADVANCED FULL-MOTION TV WALL MOUNT INSTRUCTION MANUAL MANUEL D’INSTRUCTIONS Texte français page 14 WE’RE HERE TO HELP NOUS POUVONS VOUS AIDER ! Recommended placement Want to watch a video that shows Get it right the ﬁrst time! Our US-based install experts are how easy this DIY project will be? HeightFinder...
Page 2 IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS Please read through these instructions completely to be sure you’re comfortable with this easy install process. Check your TV owner’s manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service: US: +1 (800) 359-5520.
Page 3 Dimensions TV INTERFACE 7.9in 200mm 15.7in 400mm 3.9in 100mm 15.7in 400mm WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 10 deg 2.0in DOWN 52mm 55 deg 55 deg 12.3in 10.6in 312mm 270mm SIMULATED 55" 5 deg 22.3in FLAT SCREEN TV 567mm FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED...
Page 4 Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
Page 5 STEP 1 Attach TV Bracket to TV 1.1 Select TV Screw Diameter 1.2 Select TV Screw Length and Spacers Only one screw size fits your TV. NO SPACER SPACER NEEDED • Flat Back TV • Flat Back TV • Rounded or Irregular Back TV with extra space needed [for deep inset holes or cable interference] [TV brackets NOT resting flat on your TV]...
Page 6 Align with your TV's mounting hole pattern (VESA).
Page 7 NO SPACER SPACER NEEDED 2.5 mm 5 mm 7.5 mm NOTE: Hanging tab is oriented to the TOP of your TV. CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to secure the TV brackets to the TV.
Page 8 STEP 2A Attach Wall Plate Wood Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm) ●...
Page 9 STEP 2B Attach Wall Plate Solid Concrete or Concrete Block Installation CAUTION: Avoid potential personal injury or property damage! ● Mount wall plate directly onto concrete surface (no wall covering) ● Minimum solid concrete thickness: 8 in. (203 mm) ● Minimum concrete block size: 8 x 8 x 16 in.
Page 10 STEP 3 Hang TV onto Wall Plate HEAVY! You may need assistance with this step. CAUTION: Avoid potential personal injury or property damage! Locking screw must be installed to secure the TV to the arm assembly...
Page 11 Manage Cables IMPORTANT: Fully extend arm assembly to ensure enough slack in cables. 1. Slide to remove the cable covers 2. Route your cables through the arm assembly 3. Reattach the cable covers over the cables.
Page 12 TV Adjustments TILT ADJUSTMENT Your TV should adjust easily when moved, then stay in place. If your TV is too loose or too tight, adjust the side tension knob by hand or use hex for additional tightening. NOTE: Once your TV is in place, tighten the tension knob to prevent unwanted movement.
Page 13 HEIGHT ADJUSTMENT RAISE LOWER Hex Bit Extension may be useful (not included). REMOVING THE TV HEAVY! You may need assistance with this step.
Page 14 FRANÇAIS INFORMATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ – CONSERVEZ CES INSTRUCTIONS – VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D’UTILISER CE PRODUIT Avant de commencer, assurons-nous que ce support vous convient parfaitement! Votre téléviseur pèse-t- Non — Parfait! il plus de 31,7 kg (70 lb) 31,7 kg avec les accessoires? Oui —...
Page 15 FRANÇAIS 1-3 Fixez le support de téléviseur Desserrez les quatre vis A . Alignez-le avec le modèle de trou de montage de votre téléviseur (VESA). REMARQUE : la languette de suspension H est orientée vers le HAUT de votre téléviseur. ATTENTION : Évitez les risques de blessures corporelles ou de dommages matériels ! N’utilisez PAS d’...
Page 16 Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein.
