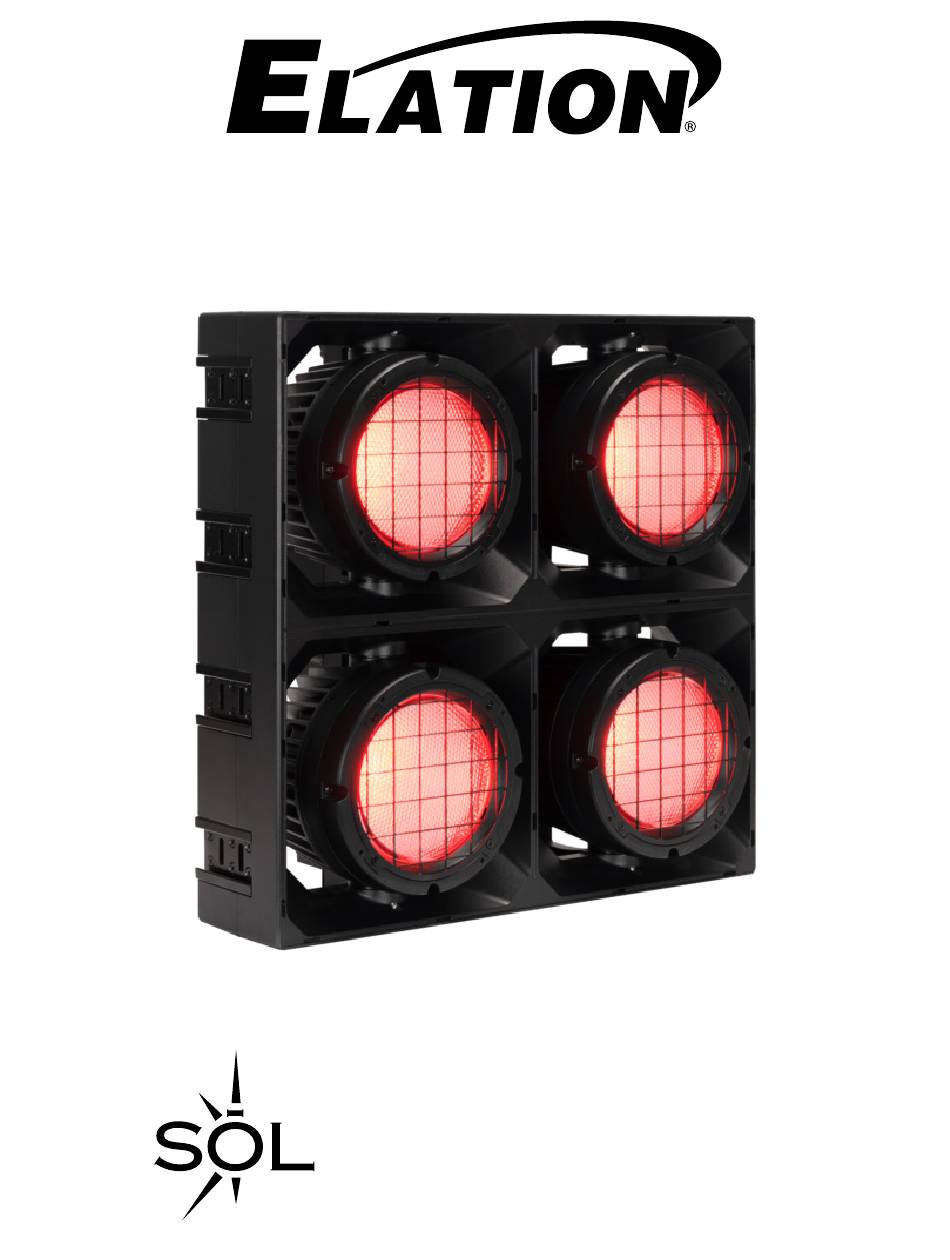

  • Page 1 IV BLINDER user manual...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000...

  • Page 3: Table Of Contents

    C O N T E N T S General Information IP65 Rated Limited Warranty (USA Only) Safety Guidelines Overview Torque Settings for Screws IP Test Parameters Installation Guidelines Accessory Installation Remote Device Management (RDM) System Menu Output Mode Options Cell Layout Dimmer Modes &...

  • Page 4: Box Contents

    • Fixture Interconnect Splice (x2) • Safety Cable (x1) • IP65 Locking Power Cable (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | support@elationlighting.com...

  • Page 5: Ip65 Rated

    I P 6 5 R AT E D The International Protection (IP) rating system is commonly expressed as “IP” (Ingress Protection) followed by two numbers (i.e. IP65), where the numbers define the degree of protection. The first digit (Foreign Bodies Protection) indicates the extent of protection against particles entering the fixture, and the second digit (Water Protection) indicates the extent of protection against water entering the fixture.

  • Page 6: Limited Warranty (Usa Only)

    It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 7: Safety Guidelines

    S A F E T Y G U I D E L I N E S This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 8 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

  • Page 9: Overview

    O V E R V I E W Display Screen Enter Mode Button Safety Button Cable Fixture Loop Down Interconnect Button Slots Button Bracket Adjustment Knob Fixture Removable Interconnect Mounting Slot Bracket L-Track Power Valve Mounting Fixture Bracket Interconnect Twist Locks Slot...

  • Page 10: Torque Settings For Screws

    T O R Q U E S E T T I N G S F O R S C R E W S IN ORDER TO MAINTAIN THE IP65 RATING ON THE LIGHTING FIXTURES, ALL SCREWS MUST BE TIGHTENED TO THE FOLLOWING TORQUE SPECIFICATION USING A TORQUE DRIVER.

  • Page 11: Ip Test Parameters

    Following any repair or maintenance procedure that requires disassembly of the fixture, use Elation’s IP Tester to confirm the IP integrity of the fixture. This fixture has two air valves: one on the back of the head behind the rear head cover, and a second on the base beneath the fuse.

  • Page 12: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 3.3 feet (1m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.

  • Page 13: Clamp Installation

    I N S TA L L AT I O N G U I D E L I N E S CLAMP INSTALLATION This device features a detachable bracket assembly with mounting points for an Omega bracket built into the top of the bracket. To install the bracket assembly, insert the two twist-lock fasteners on the bracket assembly into the two mounting holes on the rear of the unit, then twist the fasteners to secure in place.

  • Page 14: Safety Cable

    I N S TA L L AT I O N G U I D E L I N E S SAFETY CABLE A safety cable to the appropriate weight rating MUST be secured to the designated attachment point to the left of the display screen. SAFETY CABLE ATTACHED TO LOOP...
  • Page 15 I N S TA L L AT I O N G U I D E L I N E S L-TRACK MOUNTING The L-track mounting system enables the user to slide the mounting clamps along the tracks and secure them in the desired position. The L-tracks are situated on the top and bottom surfaces of the fixture.

  • Page 16: Fixture Installation

    I N S TA L L AT I O N G U I D E L I N E S FIXTURE INSTALLATION This fixture is fully operational in three different mounting positions: hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.
  • Page 17 I N S TA L L AT I O N G U I D E L I N E S FIXTURE INTERCONNECTIONS Individual fixtures can be physically linked together using the Fixture Interconnect Slots located along the top, bottom, and sides of the fixture, in conjunction with included Fixture Interconnect Splices.
  • Page 18 I N S TA L L AT I O N G U I D E L I N E S ARRAY LIMITATIONS ATTENTION! It is crucial to ensure that any arrangement consisting of multiple interconnected fixtures, whether in a vertical, horizontal, or shaped configuration, is securely and properly supported and fixed to prevent any movement that may arise from lateral forces, such as wind or physical contact with a person or other object.
  • Page 19 I N S TA L L AT I O N G U I D E L I N E S POWER AND DATA CABLES REGARDLESS OR FIXTURE ORIENTATION, TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE, ALL CABLES MUST BE ROUTED TOWARDS THE GROUND TO PREVENT WATER ACCUMULATION AROUND THE CONNECTIONS.
  • Page 20 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 21: Accessory Installation

    A C C E S S O RY I N S TA L L AT I O N LENS KITS Multiple optional lens kits are available for fitment to this fixture. To install a lens kit, simply align the mounting holes on the optional lens with the mounting holes on the fixture’s lens frame, then insert two fasteners per lens and tighten to secure in place.
  • Page 22 A C C E S S O RY I N S TA L L AT I O N BOWENS ADAPTER ASSEMBLY (OPTIONAL) 1. Locate the two main mounting holes on each Bowens adapter, which are easily identified by their recessed seats and the fact that they fully pass through the adapter. Align these mounting holes with the matching holes on the fixture’s lens frame and secure with Phillips head screws.

  • Page 23: Gel Frame Holder

    A C C E S S O RY I N S TA L L AT I O N GEL FRAME HOLDER 1. Locate the four flush-fitting gel frame 2. Align four of the mounting holes on the holder mounting holes on each fixture lens gel frame holder with the mounting holes frame.
  • Page 24 A C C E S S O RY I N S TA L L AT I O N INTERCONNECT CLAMP ADAPTOR This adaptor accessory allows a mounting clamp to be attached to the interconnect slots. To use this adaptor, simply align the hole on the mounting clamp with the hole in the top of the adaptor, then secure them together using a bolt, nut, and washer of the appropriate weight rating.

  • Page 25: R E M O T E D E V I C E M A N A G E M E N T ( R D M )

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 26: System Menu

    UP, DOWN, UP, DOWN, ENTER. Refer to the system menu table on the following pages. AN ELATION C-LOADER II CAN ALSO BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. To order this device, please contact Elation Support for further details.
  • Page 27 S YS T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DMX Address 001 - 512 1Ch Dimmer 2Ch Dimmer x2 4Ch Dimmer x4 2CH Dim/CCT 4CH Dim/CCT x2 8CH Dim/CCT x4 3CH I/Strb/CCT 5CH I/Stb/CCT x2 9CH I/Stb/CCT x4 4CH IRGB...
  • Page 28 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) (Main Fixture Settings Only) DMX Start Address 001 - 512 1Ch Dimmer 2CH Dimmer x2 4CH Dimmer x4 2CH Dim/CCT 4CH Dim/CCT x2 8CH Dim/CCT x4 3CH I/Strb/CCT 5CH I/Stb/CCT x2...
  • Page 29 900Hz - 1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz, 10KHz, 15KHz, 20KHz, Rate 25KHz (Default = 1200 Hz) Highest Fidelity Balanced Output and Color Tuning Fidelity Highest Output Bright (Highest Output) Output Balance Uniform (Elation Full Spectrum Match) LED Power Limit 100% Auto Fan Mode High Silent...
  • Page 30 S YS T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) Screen Delay 10s - 5min (Default = 1min) Display Screen Lock Off, 10s - 5min, Key Lock Settings (continued) Rotate Display Yes / No / Auto Reset Default Yes / No Current Run Time...

  • Page 31: O U T P U T M O D E O P T I O N S

    O U T P U T M O D E O P T I O N S Blinder Output (Default) In Blinder Output mode, the fixture operates at its maximum possible output while ensuring a safe operating temperature. This mode is designed for typical blinder applications, where short, bright bursts of light are desired.
  • Page 32 O U T P U T M O D E O P T I O N S Cell Modes: Cell Modes allow grouping and control of the fixture’s cells, providing easier control of the fixture without the need to change DMX modes and channels. •...

  • Page 33: Mirror Horizontal

    C E L L L AYO U T MIRROR STANDARD HORIZONTAL MIRROR MIRROR HORIZONTAL VERTICAL & VERTICAL...
  • Page 34 D I M M E R M O D E S & C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage...
  • Page 35 D M X T R A I T S - B A S I C M O D E S Dim/ Dim/ Dim/ Dim/ Dim/ Dim/ Str/ Str/ Str/ Function Snap Values Value Dimmer 0-255 Intensity 0 → 100% Dimmer 2 0-255 Intensity 0 →...
  • Page 36 D M X T R A I T S - C O L O R M O D E S Dim/ Dim/ Dim/ IRGB CCT/ IRGB IRGB CCT/ CCT/ Function Snap Values Value 16ch 12ch 24ch 10ch 16ch Dimmer 0-255 Intensity 0 →...
  • Page 37 D M X T R A I T S - C O L O R M O D E S Dim/ Dim/ Dim/ IRGB CCT/ IRGB IRGB CCT/ CCT/ Function Snap Values Value 16ch 12ch 24ch 10ch 16ch Lime 0-255 0 →...
  • Page 38 D M X T R A I T S - C O L O R M O D E S Dim/ Dim/ Dim/ IRGB CCT/ IRGB IRGB CCT/ CCT/ Function Snap Values Value 16ch 12ch 24ch 10ch 16ch Lime 4 0-255 0 →...
  • Page 39 D M X T R A I T S - C O L O R M O D E S Dim/ Dim/ Dim/ IRGB CCT/ IRGB IRGB CCT/ CCT/ Function Snap Values Value 16ch 12ch 24ch 10ch 16ch Color Open 1-179 Virtual Swatch Book (see table) Color Scroll...
  • Page 40 D M X T R A I T S - C O L O R M O D E S Dim/ Dim/ Dim/ IRGB CCT/ IRGB IRGB CCT/ CCT/ Function Snap Values Value 16ch 12ch 24ch 10ch 16ch Refresh Rate (Hz) (continued) 1000 1010 1020...
  • Page 41 1490 1500 2500 4000 5000 6000 10000 15000 20000 25000 169-174 Idle Color Tuning 175-176 Highest Fidelity 177-178 Balanced Output and Fidelity 179-180 Highest Output (Default) Output Balance 181-182 Bright (Highest Output) 183-184 Uniform (Elation Full Spectrum Match) 185-200 Idle...
  • Page 42 D M X T R A I T S - C O L O R M O D E S Dim/ Dim/ Dim/ IRGB CCT/ IRGB IRGB CCT/ CCT/ Function Snap Values Value 16ch 12ch 24ch 10ch 16ch Dimmer Curves 201-210 Linear 211-220 Square 221-230 Inverse Square...
  • Page 43 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Dimmer 0-255 Intensity 0 → 100% Dimmer Fine 0-255 Fine Intensity Control Dimmer 2...
  • Page 44 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Lime 0-255 0 → 100% Lime Fine 0-255 Fine Adjustment Amber 0-255...
  • Page 45 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Red 3 0-255 0 → 100% Red Fine 3 0-255 Fine Adjustment Green 3...
  • Page 46 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Lime 4 0-255 0 → 100% Lime Fine 4 0-255 Fine Adjustment Amber 4...
  • Page 47 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Cyan 3 0-255 0 → 100% Cyan Fine 3 0-255 Fine Adjustment Magenta 3...
  • Page 48 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch CCT Presets 4 0-17 Open 18-85 1800K → 8500K (see sheet) 86-255 8500K Variable CCT 0-17...
  • Page 49 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Color Open 1-179 Virtual Swatch Book (see table) Color Scroll 180-201 Clockwise, fast →...
  • Page 50 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Dimmer Delay Time (continued) 6.0s 7.0s 8.0s 9.0s 142-149 Idle Dim to Warm 150-154 DTW On...
  • Page 51 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Refresh Rate (Hz) 1000 1010 1020 1030 1040 1050 1060 1070...
  • Page 52 D M X T R A I T S - A D VA N C E D M O D E S Function Snap 40ch 69ch 28ch 28ch Values Value 45ch 45ch Refresh Rate (Hz) (continued) 1260 1270 1280 1290 1300 1310 1320...
  • Page 53 Color Tuning 175-176 Highest Fidelity 177-178 Balanced Output and Fidelity 179-180 Highest Output (Default) Output Balance 181-182 Bright (Highest Output) 183-184 Uniform (Elation Full Spectrum Match) 185-200 Idle Dimmer Curves 201-210 Linear 211-220 Square 221-230 Inverse Square 231-240 S-Curve (Default)
  • Page 54 V I R T U A L S WAT C H B O O K Value Filter Number Name Value Filter Number Name Pale Yellow Medium Purple Straw Lavender Gold Tint Palace Blue Spring Yellow Dark Blue Medium Yellow Medium Blue Yellow Deep Blue Deep Amber...

  • Page 55: C O Lo R T E M P E R At U R E Ta B L E

    C O LO R T E M P E R AT U R E TA B L E Colors shown are an approximate representation. DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 5100 1800 5200 1900 5300 2000 5400 2100 5500...

  • Page 56: Error Codes

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer.
  • Page 57 S P E C I F I C AT I O N S SIZE / WEIGHT (Without Accessories) SOURCE 4x 350W RGBLAW LED Length: 9.29” (236mm) Width: 16.54” (420mm) 30,000 Hour Average LED Life* Vertical Height: 16.54” (420mm) *May vary depending on several factors including but not limited to: Weight (Fixture Only): 42.99 lbs (19.5 kg) Environmental Conditions, Power/Voltage, Usage...

  • Page 58: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S Drawings not to scale FIXTURE 7.1in (180mm) 9.3in (236mm) 16.5in (420mm) 9.0in (228mm) 7.1in (180mm) 16.8in (427mm) 9.0in (228mm) 10.3in (261mm)
  • Page 59 D I M E N S I O N A L D R AW I N G S Drawings not to scale FIXTURE INTERCONNECT SPLICE 0.8 in (19.98mm) 0.7 in (17.87mm) 1.4 in (35.9mm)

  • Page 60: Ordering Information

    O R D E R I N G I N F O R M AT I O N SKU (US) SKU (EU) ITEM DESCRIPTION SOL401 1236300108 SOL II BLINDER SOL4HDY SOL IV HD YOKE SOLFL SOL FRESNEL LENS SOLFRO SOL FROSTED LENS SOLBA SOL BOWENS ADAPTER SOLDL...
  • Page 61 This page intentionally left blank.
