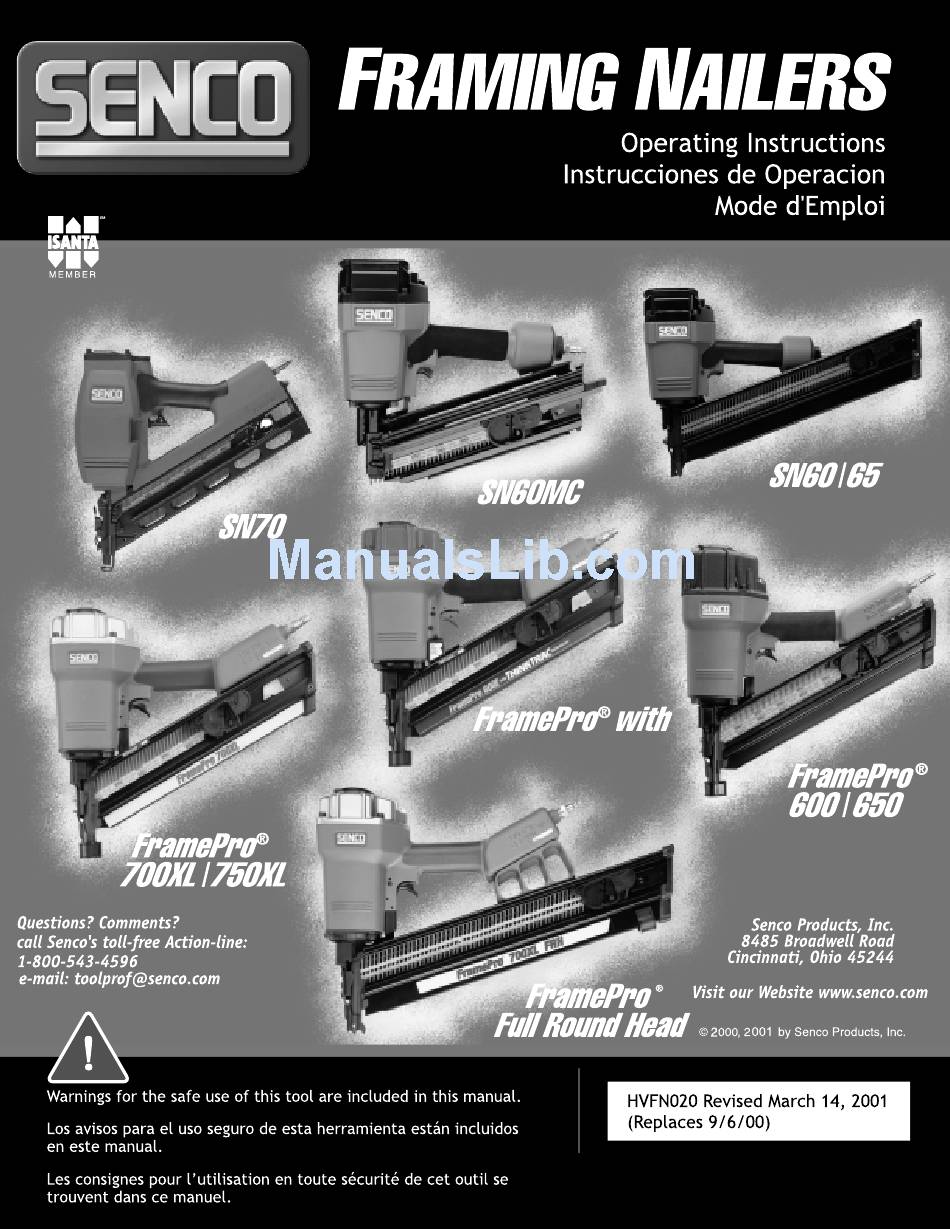

- Page 1 ® ThinkTrac Technology...
-
Page 2: Table Of Contents
Espanol English TABLE OF TABLA DE MATERIAS CONTENTS Uso de la Tool Use Maintenance Herramienta Troubleshooting Mantenimiento Identificación de Specifications Options Fallas Accessories Especificaciones Opciones Accesorios RESPONSABILIDADES DEL EMPLOYER’S EMPLEADOR RESPONSIBILITIES El empleador debe hacer Employer must enforce cumplir las advertencias de compliance with the safety seguridad y todas las otras warnings and all other... - Page 3 2 GC0631 GC0547 To Load: Insert strip of nails into rear of magazine. Use only genuine SENCO fasteners. Do not load with safety element or trigger depressed. SN60MC To Load: Position the Nail Guide for the fastener length. Insert strip of nails into rear of magazine.
- Page 4 SN60MC ® FramePro with ThinkTrac ™ Technology ® FramePro with ThinkTrac ™ Technology Uso de la Herramienta Utilisation de l’Outil Tool Use Espanol English Esta herramienta esta equipada This tool is equipped with a con un mecanismo de seguridad movable rail safety mechanism. de riel movible: To activate the tool: 1.) Antes de cada disparo,...
- Page 5 Tool Use English To adjust the depth the fastener is driven, first disconnect the air supply. Using a socket head cap screw wrench, or a screwdriver, adjust the safety element to achieve desired depth. Should a nail jam occur, disconnect air supply. Release the feeder shoe and slide it forward.
- Page 6 SN70 SN60/65 ® FramePro SN60/65 Uso de la Herramienta Utilisation de l’Outil Tool Use Espanol English Con la mano, afloje la manivela Loosen locking knob at the rear la localizada en la parte of the tool by hand. Push knob posterior.
- Page 7 Tool Use English This tool is equipped with a SN60MC lockout feature that prevents the tool from being activated when there are 6 or less nails in the magazine.The safety mecha- nism will be locked in the undepressed position until more nails are loaded into the magazine.
-
Page 8: Maintenance
Aplique aceite neumático Squirt Senco pneumatic oil (5 to SENCO en la entrada de aire 10 drops) into the air inlet twice dos veces al día (dependiendo daily (depending on frequency of en la frecuencia de uso 5 A 10 tool use). -
Page 9: Troubleshooting
