MAJORITY Saxon BAR-SAX-BLK - Sound Bar Manual

Controls And Functions

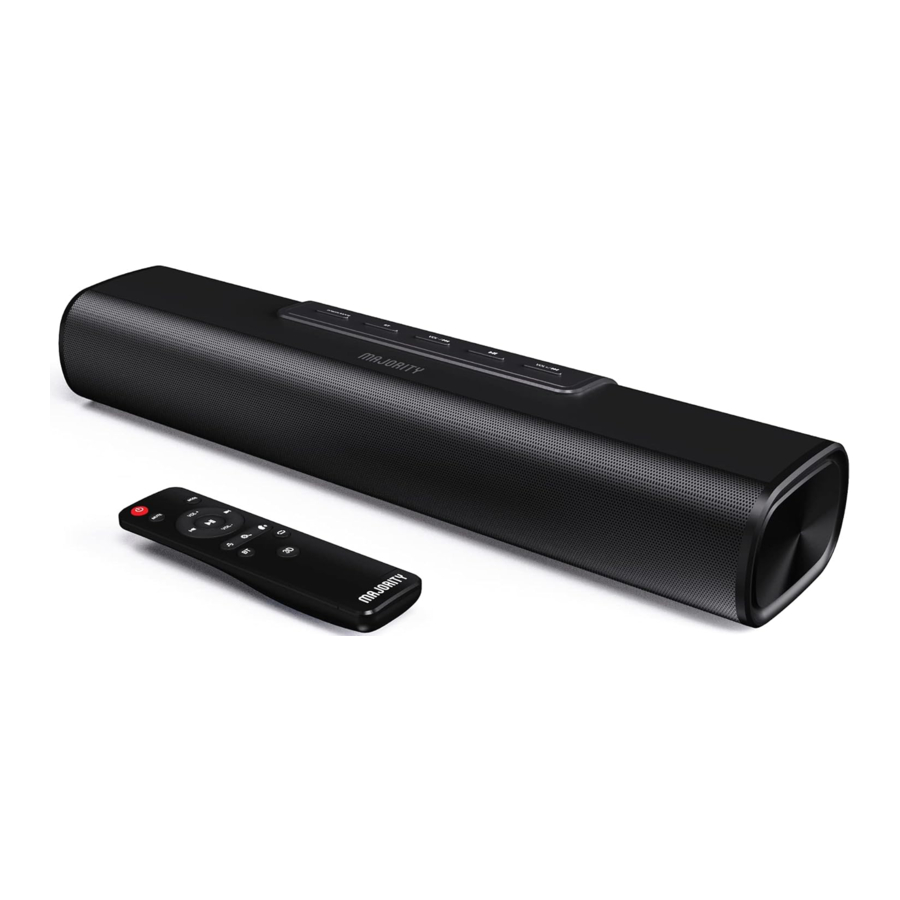

Front, Top & Back View

1. LED Display

2. Power/Mode
3. Bluetooth
4. Vol - / ⏮
5. Play/Pause
6. Vol+ / ⏭

7. USB input
8. Optical input
9. HDMI (ARC) input
10. AUX input
11. DC - Power in

Remote Control

12. Power
13. Mute
14. Vol +
15. Previous track
16. Play/Pause
17. Vol -
18. Film sound effects
19. Music sound effects
20. Bluetooth mode
21. 3D ON/OFF
22. Mode
23. Next track
24. News sound effects
25. Repeat track (USB only)

What's In The Box?

• Majority Saxon Soundbar
• 35mm to 35mm Audio Cable
• Power Adapter
• Instructions Guide

Basic Operation

Basic controls

Use the /Vol+ (Ref.14)/(Ref.6) and /Vol- (Ref.17)/(Ref.4) buttons to control the volume Press MUTE (Ref.13) to mute the audio.

Press MODE (Ref.22) to change between modes (Bluetooth/USB/AUX/ Optical/HDMI(ARC)).

See below for a more detailed summary of controls and functions.

Note 1: Next/Previous track navigation functions only apply in USB and Bluetooth mode Repeat function applies in USB mode only.

Note 2: in the table below, (H) = 'Press and hold'.

Remote	Soundbar	Function
	Vol-/⏮ Vol+⏭	Previous/next track
▲ ▼	Vol-/⏮ (H) Vol+⏭	Volume up/down
		Play/Pause
	n/a	Activate music/film/ news sound effects
BT	BT ((H) to disconnect)	Select Bluetooth mode
3D	n/a	Activate 3D sound mode
	n/a	Repeat (USB mode only)

Sound Settings/Bluetooth Mode

Sound Settings

Use the EQ settings buttons ((Ref.19), (Ref.18) and (Ref.24)) to switch between music (EQ1), film (EQ2) and news (EQ3) EQ settings The 'music' setting is best suited for listening to music, 'film' is best suited for watching films, and 'news' is best suited for vocal audio such as news or speech

For a richer, deeper room-filling sound, select 3D mode (Ref.21)

Bluetooth Mode

To connect an external device to the Majority Saxon, ensure that the soundbar is in 'Bluetooth' mode Select 'Bluetooth' mode manually by using the 'BT' button (Ref.3)/(Ref.20) or the 'Mode' button (Ref.22)/ (Ref.2) until 'bt' is displayed on the Soundbar LED display (Ref.1) The LED display will flash to indicate that the soundbar is in Bluetooth pairing mode.

Switch Bluetooth on for your external device Select 'Majority Saxon' from the list of devices

When your external device is connected, the soundbar will make a short sound to indicate successful connection, and the LED display will no longer flash. You can now play audio through the soundbar. When Bluetooth is disconnected, the soundbar will make a short sound to indicate successful disconnection.

Controls and Functions
Please see "Basic Operation" section.

Using the ARC Input

You will need: an audio source with an ARC audio output and an HDMI cable (not included).

Connect a HDMI ARC compatible device to the ARC port on the soundbar (Ref.9) by using a standard HDMI cable.

Press the MODE button on the remote control (Ref.22) or on the unit (Ref.2) until ARC mode is displayed on the LED screen (Ref.1).

Using the native controls on your connected device, ensure the audio output settings are set to ARC or HDMI Audio.

Using the Optical Input

You will need: An audio source with an Optical Audio Output and a Digital Optical Audio cable (not included).

Connect the Optical cable from the soundbar (Ref.8) to your audio source.

Press the MODE button on the remote control (Ref.22) or on the unit (Ref.2) until OPTICAL mode ('OPT') is displayed on the LED screen (Ref.1)

Using the native controls on your connected device, make sure the audio settings are set to PCM, Optical SPDIF, or Optical Audio.

Using the AUX Connection

Plug one end of a 35mm audio input cable (included) into the AUX input on the unit (Ref.10).

Plug the other end of the cable into the audio output/headphone output on your audio source.

Press the Mode button (Ref.2)/(Ref.22) until AUX mode is displayed on the soundbar LED display (Ref.1).

Controls and Functions
Please see "Basic Operation" section.

USB Mode

To use USB mode, insert a USB drive into the USB port at the back of the soundbar (Ref.7) The soundbar will automatically switch to USB mode and begin playing the first compatible track. If necessary, you may need to select 'USB' mode using the 'Mode' button (Ref.22)/(Ref.2)

Press repeat (Ref.25) once to enable single track repeat, and twice to repeat all tracks.

Due to the soundbar's inbuilt memory function, a USB flash drive that has previously been used with the soundbar will resume from the last played track position when inserted.

Please note that USB drives must be formatted in FAT32 format to be compatible with the Majority Saxon Guidance on how to format your USB drive in FAT32 format can be found at: https://www.wikihow.com/Format-FAT32

Controls and Functions
Please see "Basic Operation" section.

Troubleshooting

If you encounter an issue with your soundbar, please refer to the following checklist.

Support

If you require further assistance with your new soundbar, please contact our support team on the Majority website:
www.majority.co.uk/support

Specifications

Safety Information

1. Read these instructions.
2. Keep these instructions. Instructions are also available for download at www.majorityradios.co.uk
3. Heed all warnings.
4. Follow all instructions.
5. Do no clean the apparatus near or with water.
6. Do not block any ventilation openings Install in accordance with the manufacturer's instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
8. Protect the power from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during light storms or when unused for long periods of time.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in a way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to the rain or moisture, does not operate normally or has been dropped.
12. No naked flame sources, such as lit candles, should be placed on the apparatus.
13. Dispose of used electrical products and batteries safely according to your local authority and regulations.

ADDITIONAL WARNINGS

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquid, such as vases, shall be places on the apparatus.
Main plug is used to disconnect device and it should remain readily operable during intended use In order to disconnect the apparatus from the main mains completely, the mains plug should be disconnected from the main socket outlet completely.
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Risk of electric shock
Do not open

Read all instructions carefully before use and keep for future reference

When servicing, use only identical replacement parts

Please read all instructions carefully before use and keep for future reference.
