MAJORITY DX20 - PC Speakers Manual

Controls And Functions

Back View

1. BASS Volume
2. TRBLE Volume
3. Power/Mode
4. Prev
5. L&R Speaker
6. Main Volume
7. Next
8. Play/Pause
9. USB
10. SD Card

Desktop Control Buttons

11. Earphones
12. Mode&MAIN Volume

Button	Operate	Action	Function
	Rotate	Clockwise Rotation	Increase the treble volume
		Anti-clockwise Rotation	Reduce the treble volume
	Rotate	Clockwise Rotation	Increase the treble volume
		Anti-clockwise Rotation	Reduce the treble volume
	Rotate	Clockwise Rotation	Increase the treble volume
		Anti-clockwise Rotation	Reduce the treble volume
Button		Operate	Function
		Short Press	BT => AUX => USB => TF
		Long Press	Power On
			Power Off
		Short Press	Bluetooth / USB / SD card function: Paused
		Press	Last song: PREV
		Press	Next song: NEXT
Desktop Control	Operate	Action	Function
	Rotate	Clockwise Rotation	Increase the main volume
		Anti-clockwise Rotation	Reduce the main volume
	Short Press	Short Press	BT => USB => SD => AUX
	Insert Earphones	Insert Earphones	External headsets play.
Name	Specification Function
AUDIO Port	Left and Right Speaker Output
SD Port	MP3
USB Port	MP3

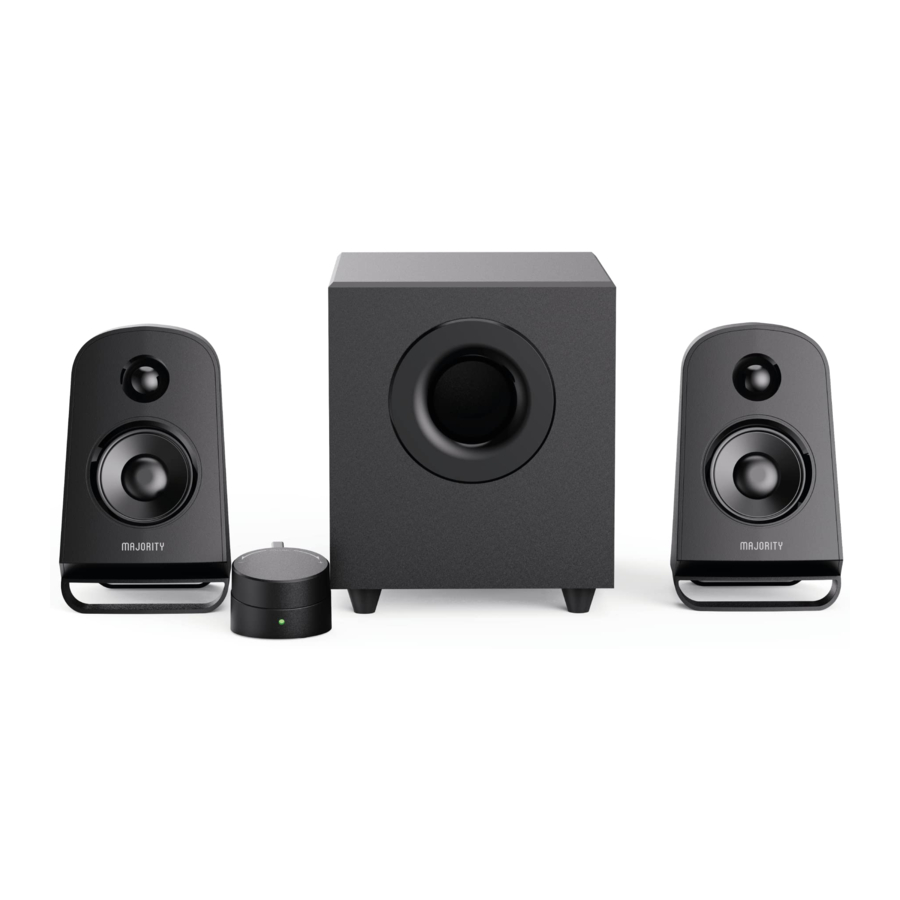

What's In The Box

1. Subwoofer x1
2. Left Speaker x 1
3. Right Speaker x 1
4. Desktop Control x1
5. Instructions x 1

Modes and Parameters

Mode Indicator Lights

Specifications

Instructions Guide

Using the USB Input

1. Insert your USB drive/stick into the USB port that can be found on the back of the subwoofer

2. Press POWER/MODE button on the subwoofer to change the DX20 into USB mode. The mode LED light indicator will turn Purple.
3. Once all set-up, music from USB drive/stick will automatically start to play.

Using the TF Input

1. Insert your TF Card into the SD Card port on the subwoofer.

2. Press the POWER/ MODE button on the subwoofer to change the mode for SD card. The mode LED light indicator will turn Purple.
3. Once all set-up, music from SD/TF card will automatically start to play.

Using the AUX-In MP3 Connection

1. Plug the other end of the AUX cable into audio output/headphone jack on your MP3 player or other audio device.

2. Press the POWER/MODE button to change the mode into Line-in. The mode LED light indicator will turn Purple.
3. Once all set-up, you can play audio from your MP3 player or other audio device.

Connecting to the Mains Supply

Ensure that the power supply voltage is within the range of 100V-240V.
This unit is designed to use a power adapter or USB port.
Unwind the mains cable to its full length.
Connect the mains plug to a mains socket.
Make sure the mains plug is fully inserted into the mains socket.
Connect the adapter to the unit via the DC Input Socket.
(DC-5V-IN)

Ensure all audio cables are properly connected before inserting the power cable into the mains socket.
Unplug the power cord from the outlet when the unit is not in use for an extended period of time.

Bluetooth Operation

Pairing a Bluetooth Device for the First Time
Select and press POWER/MODE button on the Subwoofer until Bluetooth mode is selected, indicated by a flashing blue light.
Using the native controls on your Bluetooth device, select the "Majority DX20" when prompted to choose a Bluetooth device.
When successfully paired and connected, a beep will be heard from the When successfully paired and connected, a beep will issue from the unit unit and the Pairing Indicator will display a solid blue light. After initial and the Pairing Indicator will display a solid blue light. After initial pairing, pairing, the unit will stay paired unless unpaired manually by the user, or the unit will stay paired unless unpaired manually by the user, or until the until the device is reset. device is reset.
To unpair, hold down the PAIR button for 3 seconds. You can now pair the device with another Bluetooth device. If your device should become unpaired or you find it is unable to connect,
In case your device will disconnect from DX20, or if you are unable to connect please start over again following the paring steps again.

Troubleshooting

If you encounter an issue with your DX20, please refer to the following checklist.

Support

If you require further assistance with your new DX20 PC Speakers, please contact out support team on the Majority website:
www.majority.co.uk/support

SAFETY INFORMATION

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings
4. Follow all instructions
5. Do not clean the apparatus near or with water
6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
8. Protect the power from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during light storms or when unused for long periods of time.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in a way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to the rain or moisture, does not operate normally or has been dropped.
12. No naked flame sources, such as lit candles, should be placed on the apparatus.
13. Dispose of used electrical products and batteries safely according to your local authority and regulations.

ADDITIONAL WARNINGS
The apparatus shall not be exposed to dripping or splash- ing and no objects filled with liquid, such as vases, shall be places on the apparatus.
Main plug is used to disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the main mains completely, the mains plug should be disconnected from the main socket outlet completely.
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Please read all instructions carefully before use and keep for future reference.

Risk of electric shock.
Do not open

Read all instructions carefully before use and keep for future reference

When servicing, use only identical replacement parts

Register your product online for a FREE 3 year extended warranty at: www.majority.co.uk
